Hydraulic Punch & Shear
  • 1 of 24
  • 2 of 24

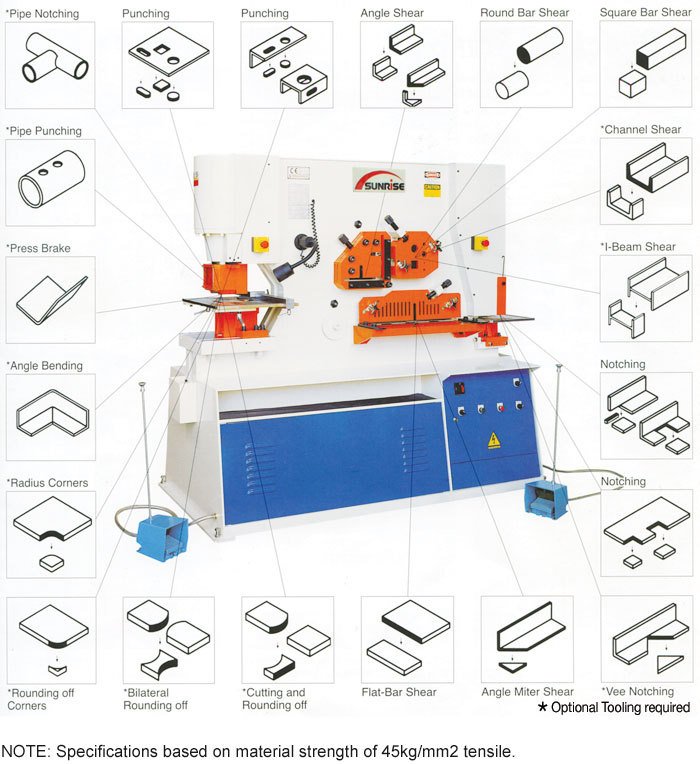

    Machine Capabilities
  • 3 of 24
    Includes large hole punching up to 50mm Diameter
  • 4 of 24
    Includes Length Stop
  • 5 of 24
    Optional Single Vee Pressbrake Attachment
  • 6 of 24
    Optional Multi Vee Preesbrake
  • 7 of 24
    Optional Vee Notcher Punch Side
  • 8 of 24
    Optional Channel Shear
  • 9 of 24
    Optional Pipe Notcher
  • 10 of 24
    Optional Channel Punching Die Holder
  • 11 of 24
    Optional Goose Neck Die Holder
  • 12 of 24
    Optional Large Hole Punching
  • 13 of 24
    Optional Angle Bending Press
  • 14 of 24
    Optional Duplicating Table
  • 15 of 24
    Optional Multi Stop Gauge
  • 16 of 24
    Flat Bar Shear
  • 17 of 24
    Square Bar Shear
  • 18 of 24
    Round Bar Shear
  • 19 of 24
    Angle Shear
  • 20 of 24
    Angle Shear
  • 21 of 24
    Angle Shear
  • 22 of 24
    Angle Shear
  • 23 of 24
    Angle Shear
  • 24 of 24
    Work Light
Order Code: P178
IW-165SD - Hydraulic Punch & Shear (415V)
165 Tonne, Dual Independent Operation
Hydraulic Plate Clamping
Punching Pressure (Tonne)
Punching Table Type
Manual with Guides and
Adjustable Stops
Punching (Diameter x Thickness) (mm)
Ø37 x 32, Ø50 x 24
Punching Throat Depth (mm)
Punching Maximum Stroke Length (mm)
Punching Cycles (15mm Stroke) - MS (cpm)
Punching Work Table Height (mm)
Flat Bar Shear (W x Thickness) - MS (mm)
760 x 20, 400 x 30
Flat Bar Shear - Blade Length - MS (mm)
Flat Bar Shear Work Table Height (mm)
Angle Shear 90º - MS (mm)
205 x 205 x 20
Angle Shear 45º - MS (mm)
80 x 80 x 10
Angle Flange Trim (mm)
Angle Shear Work Table Height (mm)
Round Solid Bar Shear - MS (mm)
Square Solid Bar Shear - MS (mm)
60 x 60
Solid Bar Shear Work Table Height (mm)
Notching - Rectangle - MS (mm)
63.5 x 90 x 16
Notching Work Table Height (mm)
Motor Power (kW / hp)
15 / 20
Voltage / Amperage (V / amp)
Nett Weight (kg)
Manufactured in Taiwan

The double cylinder "S/SD" series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, & reliability. These ironworkers have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.

Sunrise Fluid Power Inc. has been manufacturing hydraulic products for more than 20 years. Sunrise products includes hydraulic ironworkers (steelworkers), hydraulic punching machines, bending machines, cylinders, & more. Sunrise is ISO-9001 certified by BVQI & meet all CE safety requirements & regulations. Sunrise Fluid Power is dedicated to research and development. In 2000 Sunrise introduced new series ironworkers, punching machines, & CNC controlled positioning tables. In 2002, Sunrise further introduced new lines of sheet metal punching machines & horizontal bending machines. Currently Sunrise has the broadest range of ironworker & punching machine models compared to any other manufacturer & continue to offer new products to suit market demands.

Large hole punching up to Ø50mm as standard
Overhang bolster for punching channel & beam flanges
Large ruled support table with removable front section for leg down punching in angle or section
Easily adjustable stripper & safety guard
  • Five work stations, Punching, Notching, Plate Shearing, Angle Iron Shearing and Bar Shearing (all stations are guarded)
  • Dual hydraulic cylinders allows simultaneous operation without interference
  • Punching capacity up to 50mm standard
  • Mitre cutting of angle iron
  • Magnetic base halogen lamp
  • Hydraulic system is protected with replaceable filter cartridge
  • Adjustable stroke for faster punching
  • Curved shear blade for minimal job distortion
  • Most cutting blades are four-sided for long life
  • Punch, shear & notching table fitted with stops & guides as standard
  • Two-pedal operation allows two people to work machine to greatly speed up production
  • Large punch table with multi-purpose bolster, featuring a removable block for channel and beam flange punching
  • Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work

  • Pre-Commissioning:
  • 1. Punch & Shear is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
  • Full safety guarding at all workstations
  • Tooling to all workstations
  • Punch, Shear & Notch support tables
  • Now with Quick Change Tooling
  • 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece
Optional Accessories
  • Punch & dies are available in Round, Square, Rectangle & Oblong shapes

Product Brochure
Instruction Manual
8.83 MB
95.22 KB
Punch and Shears Factory Brochure
5.99 MB
Spare Parts Ordering
