IW-80S - Hydraulic Punch & Shear
80 Tonne, Dual Independent Operation
Includes Auto Touch & Cut Systems & 6 Sets of Round Punches & Dies
P1751 of 29

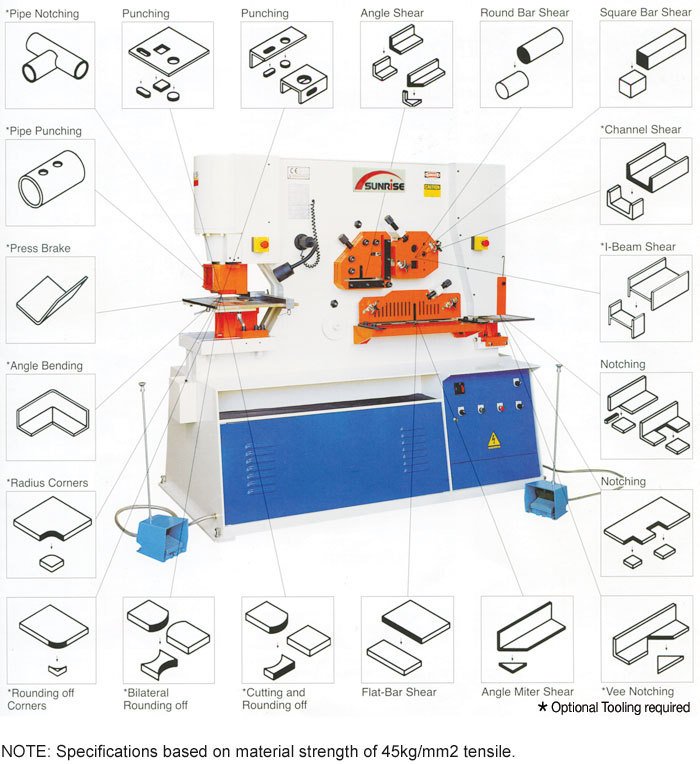

Machine Capabilities2 of 29
Includes large hole punching up to 50mm Diameter3 of 29
Includes Auto Touch & Cut Length Stop4 of 29
Flat Bar Shear5 of 29
Angle Shear6 of 29
Angle Shear7 of 29
Angle Shear8 of 29
Angle Shear9 of 29
Angle Shear10 of 29
Round Bar Shear11 of 29
Square Bar Shear12 of 29
Notcher13 of 29
Work Light14 of 29
Monoblock Design For Rigid Frame Structure15 of 29
Keyed Punch Ram For Shaped Tool Alignment16 of 29
Solid Punching Base With T-Slot Grooves17 of 29
Optional Single Vee Pressbrake Attachment18 of 29
Optional Multi Vee Preesbrake19 of 29
Optional Vee Notcher Punch Side20 of 29
Optional Channel Shear21 of 29
Optional Hydraulic Holddown for Flat Shear22 of 29
Optional Pipe Notcher23 of 29
Optional Channel Punching Die Holder24 of 29
Optional Goose Neck Die Holder25 of 29
Optional Large Hole Punching26 of 29
Optional Angle Bending Press27 of 29
Optional Multi Stop Gauge28 of 29
Optional Duplicating Table29 of 29
Order Code: P175
ex-gst
inc-gst
$
17,990.00
$
19,789.00
415V / (NO PLUG)
2 Years Warranty
2 Years Warranty
Made in Taiwan
Finance Available
Finance Available
Description
IW-80S - Hydraulic Punch & Shear
80 Tonne, Dual Independent Operation
Includes Auto Touch & Cut Systems & 6 Sets of Round Punches & Dies
Overview
Manufactured in Taiwan
The double cylinder "S/SD" series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, & reliability. These ironworkers have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.
Sunrise Fluid Power Inc. has been manufacturing hydraulic products for more than 20 years. Sunrise products includes hydraulic ironworkers (steelworkers), hydraulic punching machines, bending machines, cylinders, & more. Sunrise is ISO-9001 certified by BVQI & meet all CE safety requirements & regulations. Sunrise Fluid Power is dedicated to research and development. In 2000 Sunrise introduced new series ironworkers, punching machines, & CNC controlled positioning tables. In 2002, Sunrise further introduced new lines of sheet metal punching machines & horizontal bending machines. Currently Sunrise has the broadest range of ironworker & punching machine models compared to any other manufacturer & continue to offer new products to suit market demands.
PUNCHING
Large hole punching up to Ø50mm as standard
Overhang bolster for punching channel & beam flanges
Large ruled support table with removable front section for leg down punching in angle or section
Easily adjustable stripper & safety guard
The double cylinder "S/SD" series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, & reliability. These ironworkers have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.
Sunrise Fluid Power Inc. has been manufacturing hydraulic products for more than 20 years. Sunrise products includes hydraulic ironworkers (steelworkers), hydraulic punching machines, bending machines, cylinders, & more. Sunrise is ISO-9001 certified by BVQI & meet all CE safety requirements & regulations. Sunrise Fluid Power is dedicated to research and development. In 2000 Sunrise introduced new series ironworkers, punching machines, & CNC controlled positioning tables. In 2002, Sunrise further introduced new lines of sheet metal punching machines & horizontal bending machines. Currently Sunrise has the broadest range of ironworker & punching machine models compared to any other manufacturer & continue to offer new products to suit market demands.
PUNCHING
Large hole punching up to Ø50mm as standard
Overhang bolster for punching channel & beam flanges
Large ruled support table with removable front section for leg down punching in angle or section
Easily adjustable stripper & safety guard
Features
- Five work stations, Punching, Notching, Plate Shearing, Angle Iron Shearing and Bar Shearing (all stations are guarded)
- Dual hydraulic cylinders allows simultaneous operation without interference
- Punching capacity up to 50mm standard
- Mitre cutting of angle iron
- Magnetic base halogen lamp
- Hydraulic system is protected with replaceable filter cartridge
- Adjustable stroke for faster punching
- Curved shear blade for minimal job distortion
- Most cutting blades are four-sided for long life
- Punch, shear & notching table fitted with stops & guides as standard
- Two-pedal operation allows two people to work machine to greatly speed up production
- Large punch table with multi-purpose bolster, featuring a removable block for channel and beam flange punching
- Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work
- Pre-Commissioning:
- 1. Punch & Shear is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Includes
- 6 sets of round punches & dies:
- Punches: 20, 22, 24, 26, 28 & 30mm
- Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mm
- Full safety guarding at all workstations
- Tooling to all workstations
- Punch, Shear & Notch support tables
- Now with Quick Change Tooling
- 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece
Optional Accessories
- Punch & dies are available in Round, Square, Rectangle & Oblong shapes
Compare Product Range
Specifications
| ORDER CODE | P175 |
|---|---|
| MODEL | IW-80S |
| (Tonne)Punching Pressure | 80 |
| Punching Table Type | Manual with Guides and Adjustable Stops |
| (mm)Punching (Diameter x Thickness) | Ø26 x 22, Ø50 x 12 |
| (mm)Punching Throat Depth | 310 |
| (mm)Punching Maximum Stroke Length | 100 |
| (cpm)Punching Cycles (15mm Stroke) - MS | 29 |
| (mm)Punching Work Table Height | 1050 |
| (mm)Flat Bar Shear (W x Thickness) - MS | 460 x 15, 300 x 20 |
| (mm)Flat Bar Shear - Blade Length - MS | 465 |
| (mm)Flat Bar Shear Work Table Height | 926 |
| (mm)Angle Shear 90º - MS | 152 x 152 x 13 |
| (mm)Angle Shear 45º - MS | 80 x 80 x 10 |
| (mm)Angle Flange Trim | 100 |
| (mm)Angle Shear Work Table Height | 1165 |
| (mm)Round Solid Bar Shear - MS | Ø45 |
| (mm)Square Solid Bar Shear - MS | 45 x 45 |
| (mm)Solid Bar Shear Work Table Height | 1270 |
| (mm)Notching - Rectangle - MS | 50.8 x 90 x 12 |
| (mm)Notching Work Table Height | 926 |
| (kW / hp)Motor Power | 7.5 / 10 |
| (V / amp)Voltage / Amperage | 415 |
| (cm)Shipping Dimensions (L x W x H) | 183 x 82 x 186 |
| (kg)Nett Weight | 2360 |
