Round Punch & Dies - 10 Sets
  • 1 of 1
Order Code: P166
PDS-40 - Round Punch & Dies - 10 Sets
Punch & Die Set
Punch Diameter (D) (mm)
Ø11 - 40
Die Diameter (D) (mm)
Ø11.7 - 41.2
Pack Quantity (No.)
Punch and Dies are Manufactured by Sunrise in Taiwan using Hi -Grade Tool Steel imported from Japan.
The manufacturing process involves machining via hi tech CNC machines lathes & mills, vacuum heat treatment with multiple tempering at high temperatures before a final quality inspection/testing process all of which ensures an accurate, precise, durable & stable product.

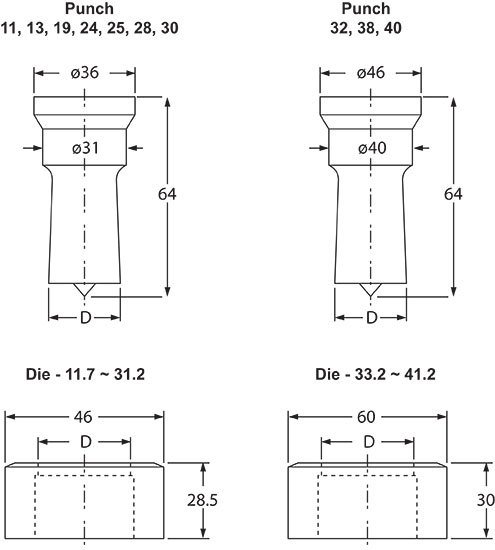

  • Set includes punch & dies:
  • 11mm Punch & 11.7mm Die
  • 13mm Punch & 13.7mm Die
  • 19mm Punch & 19.7mm Die
  • 24mm Punch & 25.2mm Die
  • 25mm Punch & 26.2mm Die
  • 28mm Punch & 29.2mm Die
  • 30mm Punch & 31.2mm Die
  • 32mm Punch & 33.2mm Die
  • 38mm Punch & 39.2mm Die
  • 40mm Punch & 41.2mm Die
Product Brochure
Die Clearance Guide
35.97 KB
