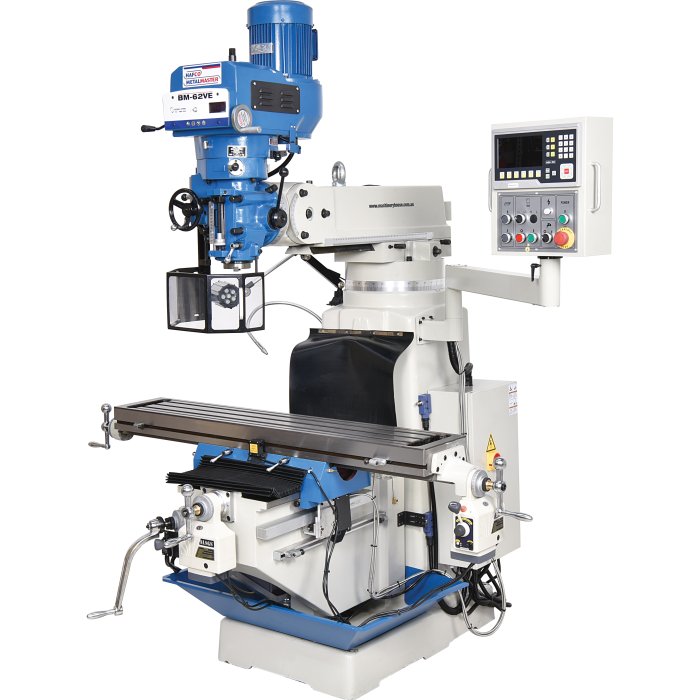

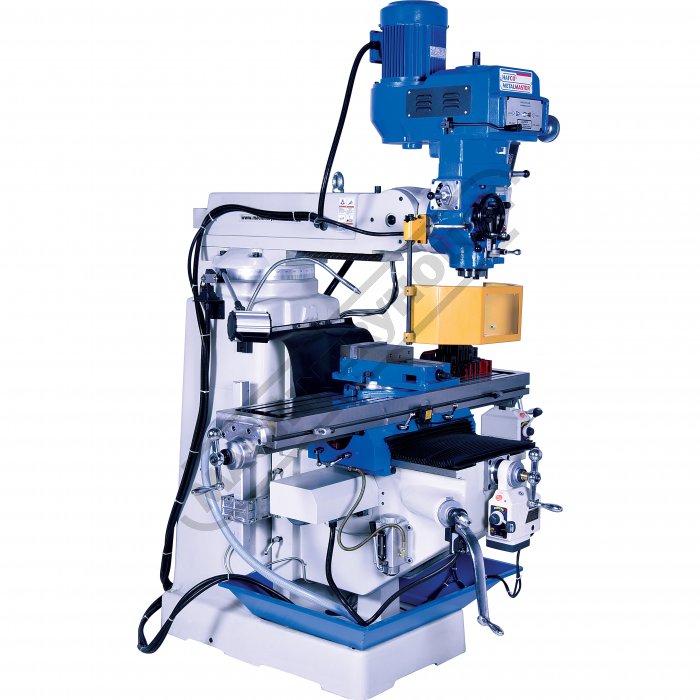

HAFCO METALMASTERBM-62VE
Turret Milling Machine
  • 1 of 31
    M598D
  • 2 of 31

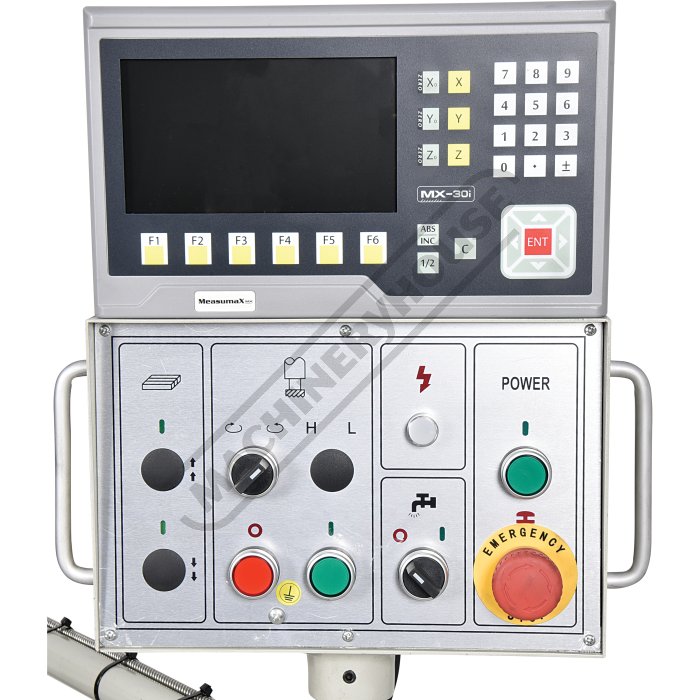

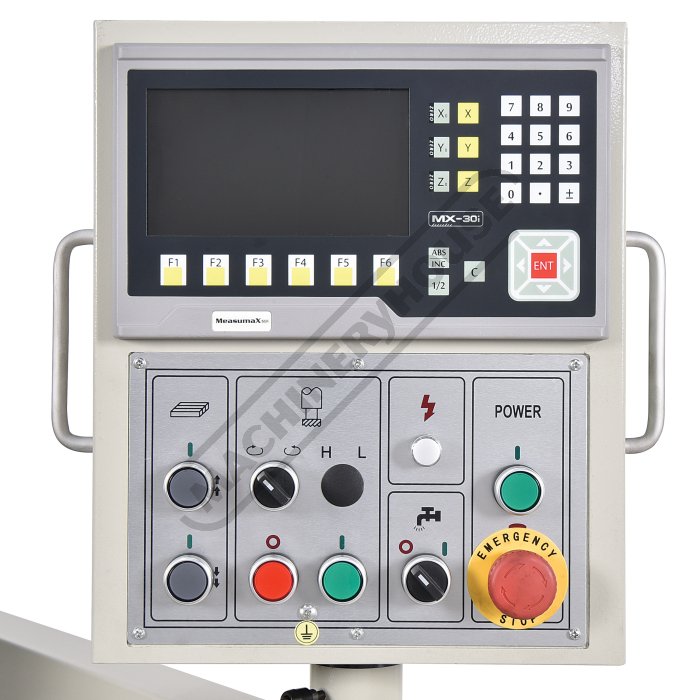

    Control Panel
  • 3 of 31
    3 Axis Digital Readout System
  • 4 of 31
    Switch Panel
  • 5 of 31

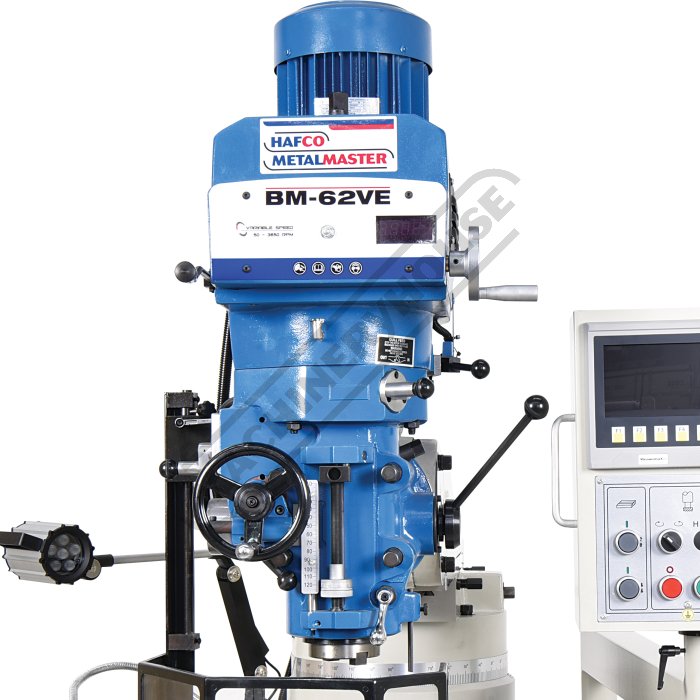

    Head Front View
  • 6 of 31
    Variable Speed Dial
  • 7 of 31
    Variable Speed Range
  • 8 of 31

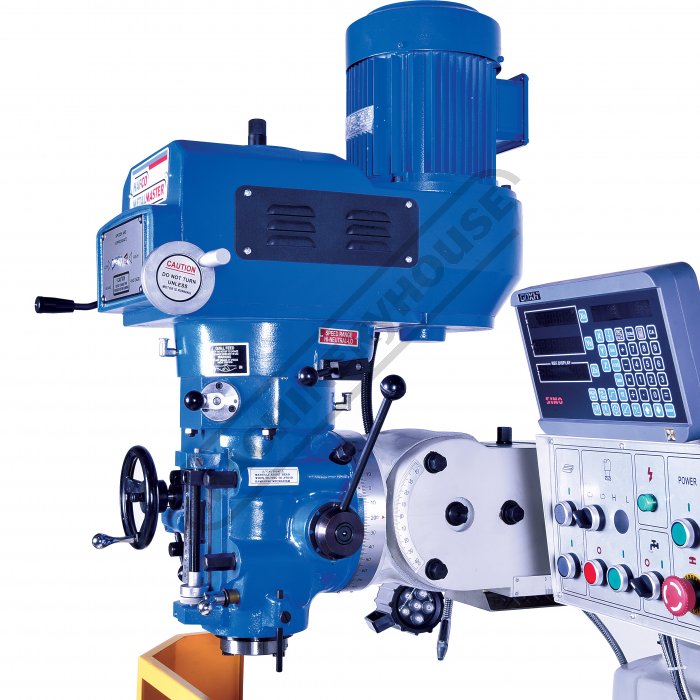

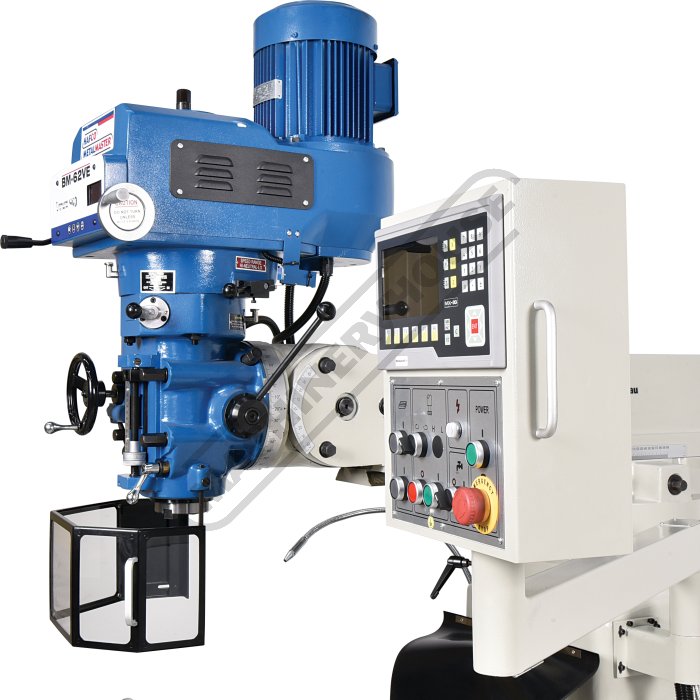

    Mill Head Right View
  • 9 of 31
    Spindle Brake

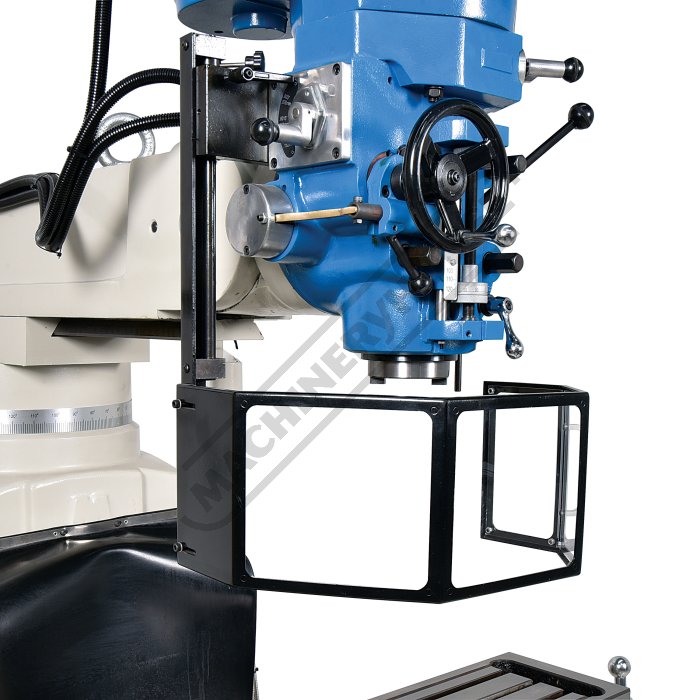

  • 10 of 31

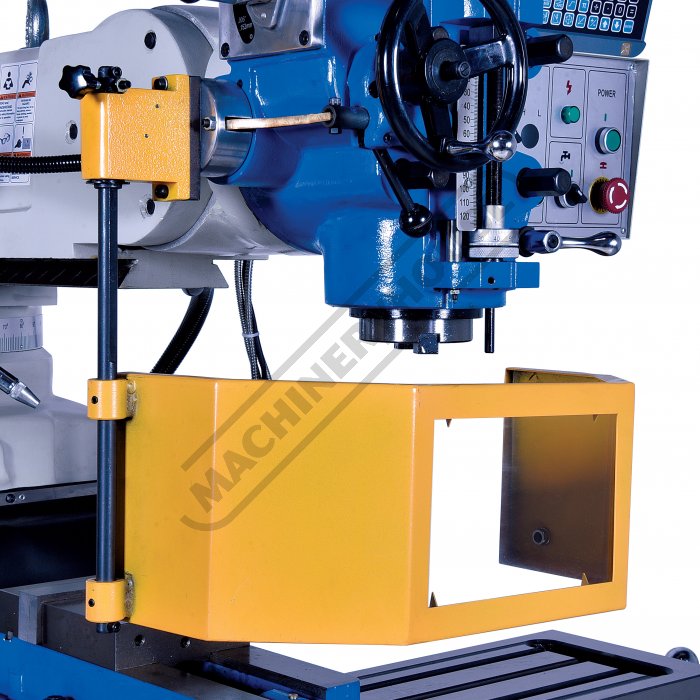

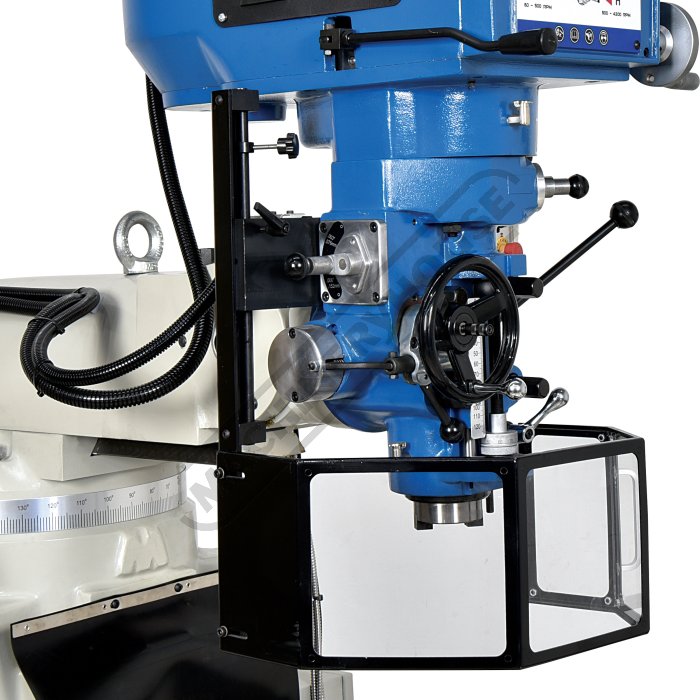

    Safety Milling Guard
  • 11 of 31
    Quill Feed Engagment Lever
  • 12 of 31
    Feed Selector
  • 13 of 31
    Quill Feed Depth Stop
  • 14 of 31
    Quill Feed Engage Lever
  • 15 of 31
    Speed Range Hi Neutral Low

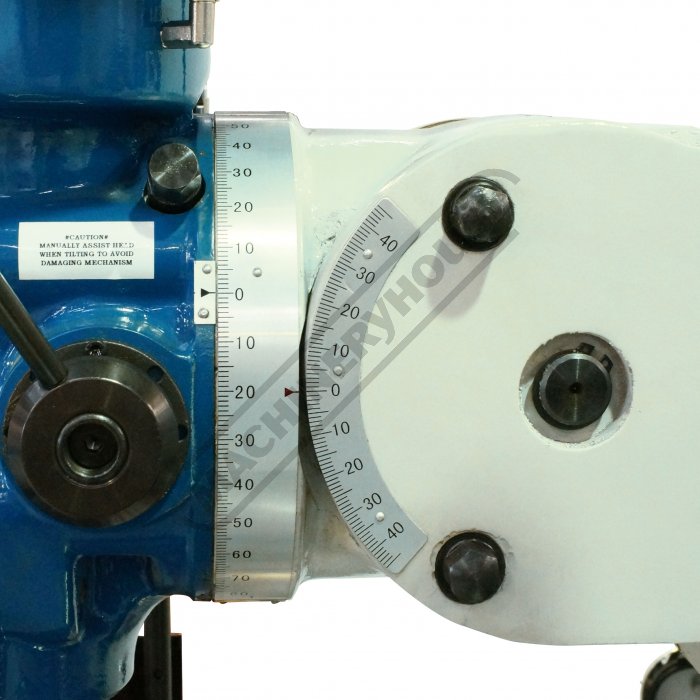

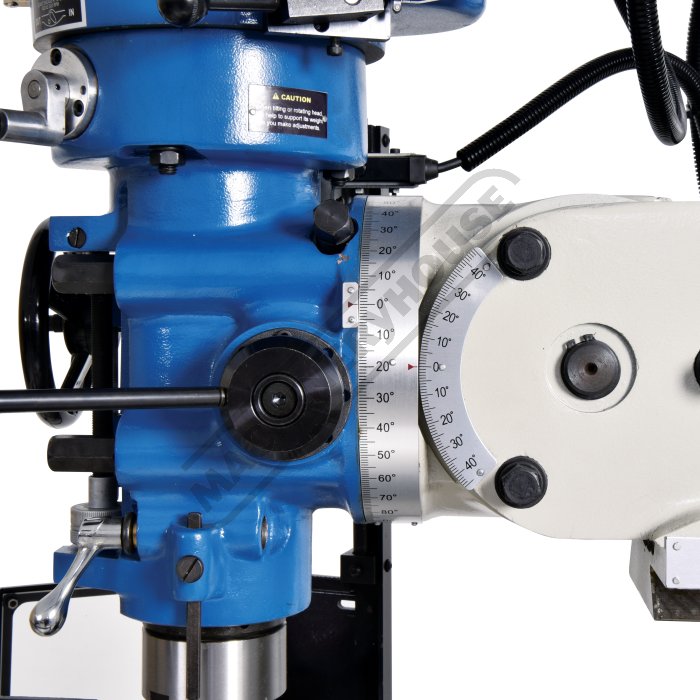

  • 16 of 31

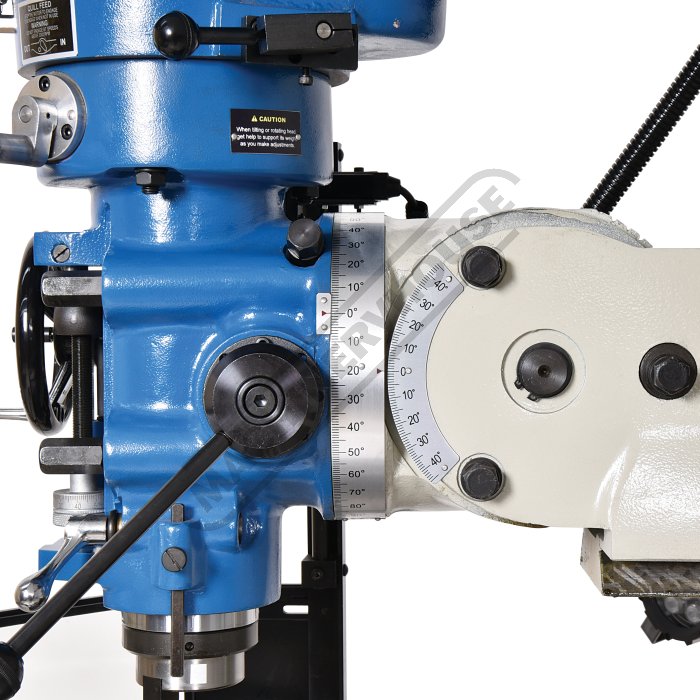

    Universal Tilting and Rotating Head
  • 17 of 31

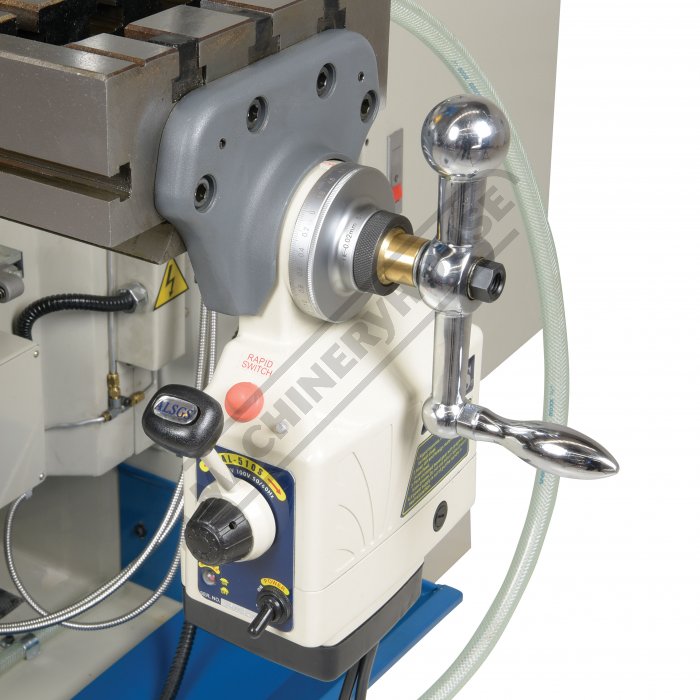

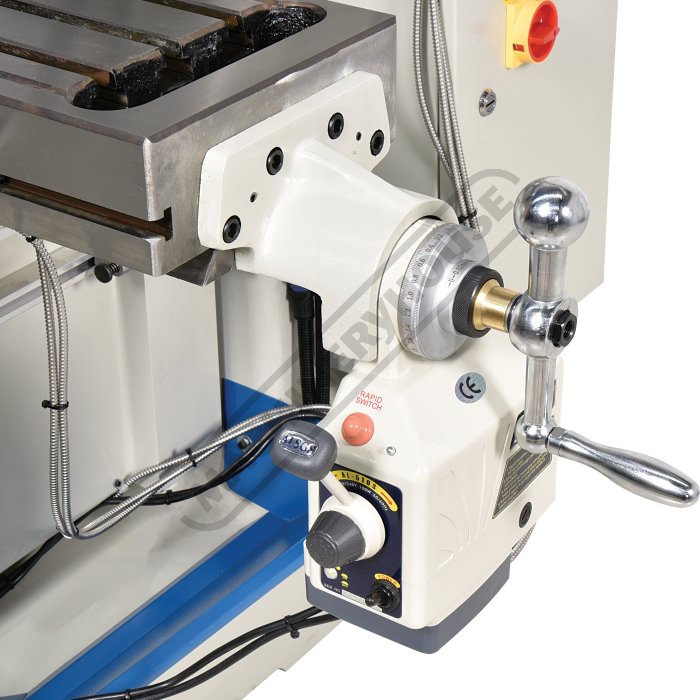

    X Axis Power Feed With Rapid
  • 18 of 31

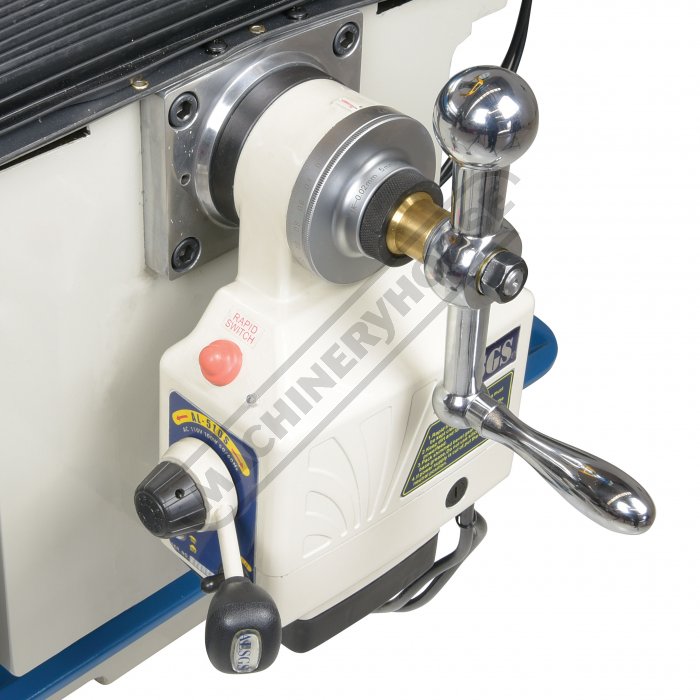

    Y Axis Power Feed With Rapid
  • 19 of 31

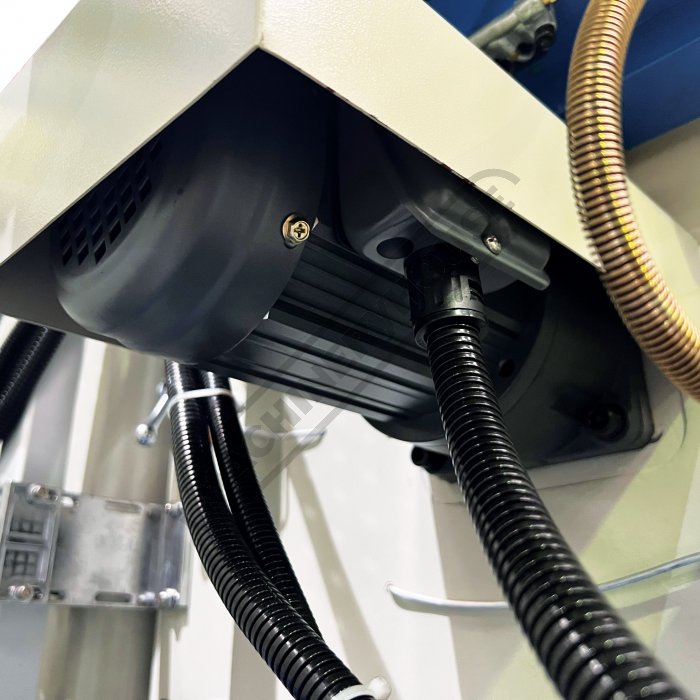

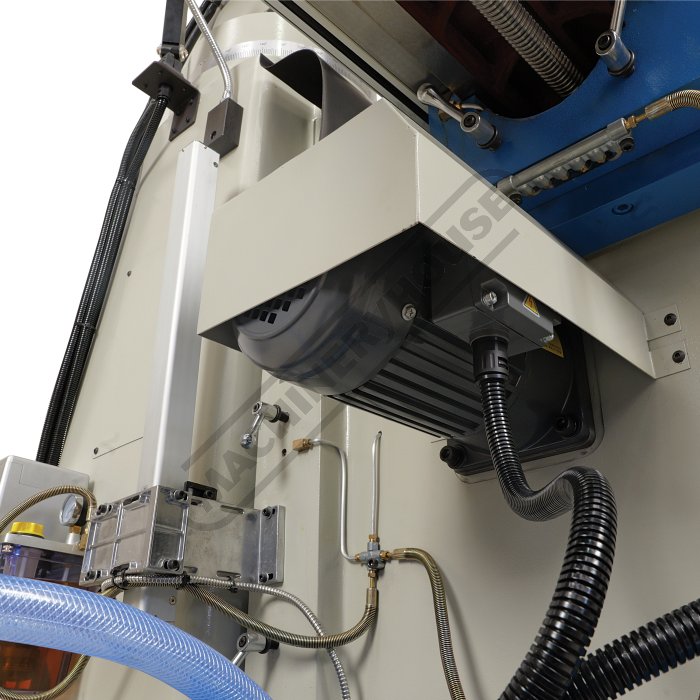

    Z Axis Rapid Motor

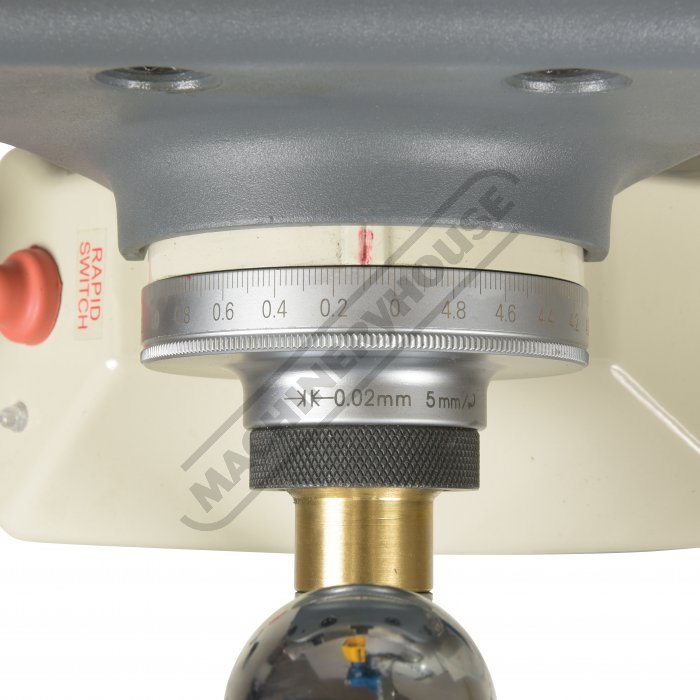

  • 20 of 31

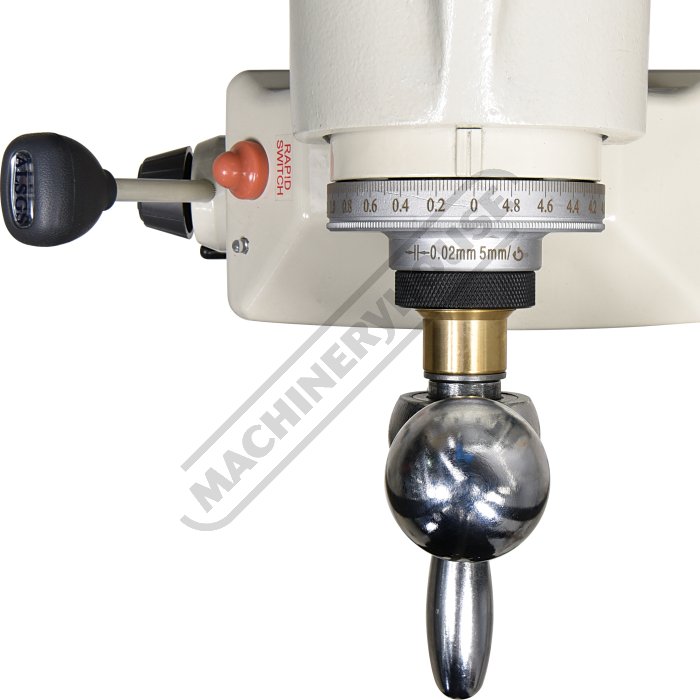

    X Axis Dial
  • 21 of 31

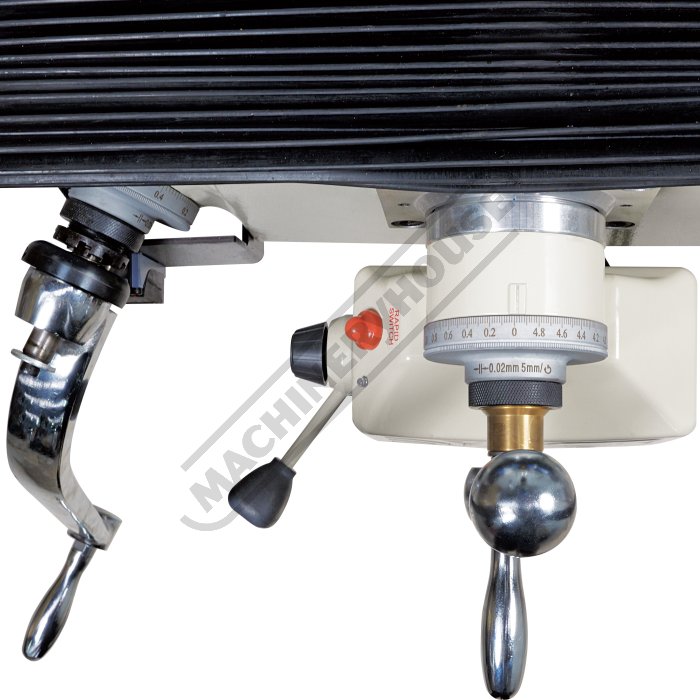

    Y Axis Dial

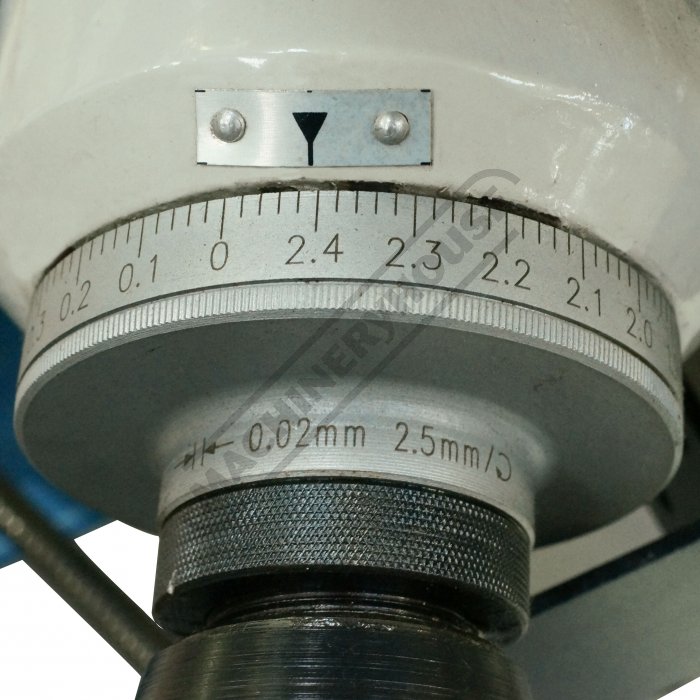

  • 22 of 31

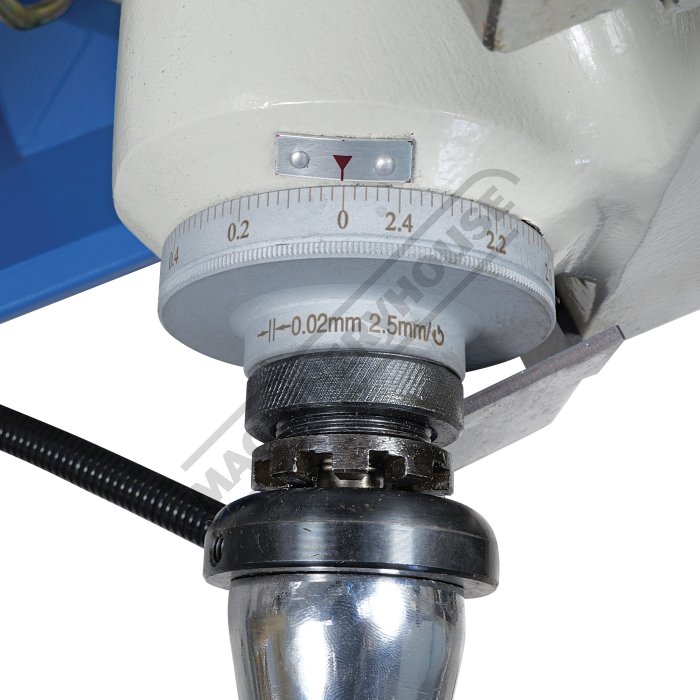

    Z Axis Dial
  • 23 of 31
    Table Feed Limit Switches
  • 24 of 31
    Z Axis Micro Switches
  • 25 of 31

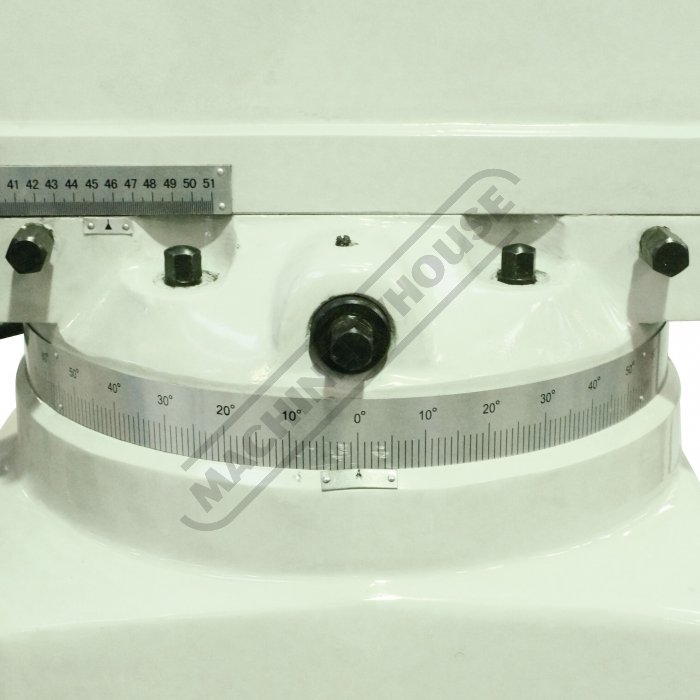

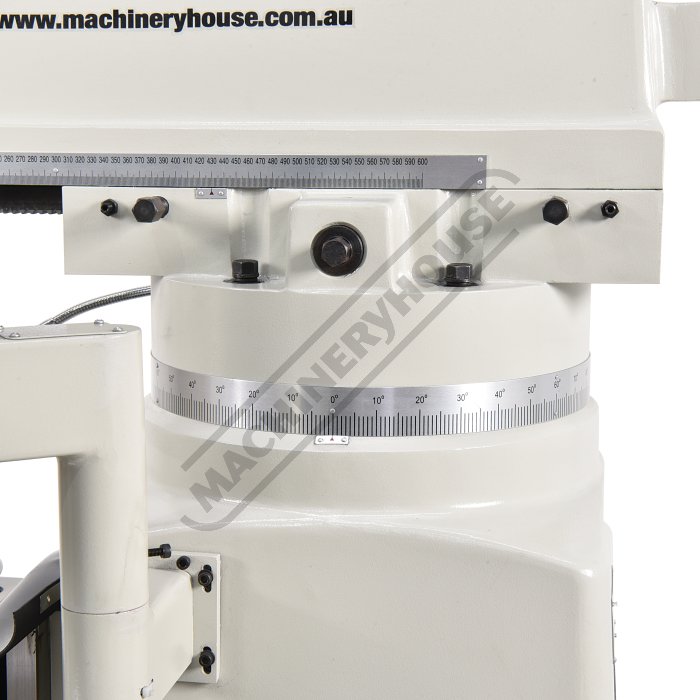

    Adjustable Swivel and Sliding Ram

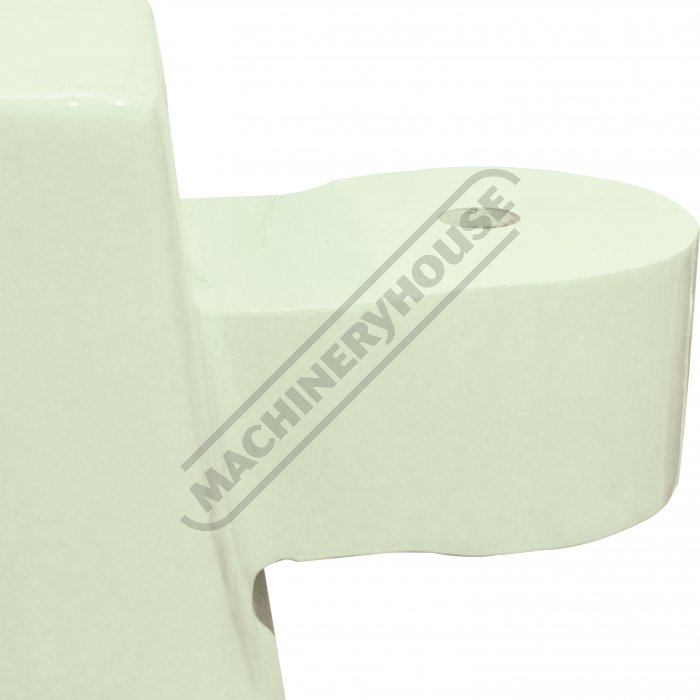

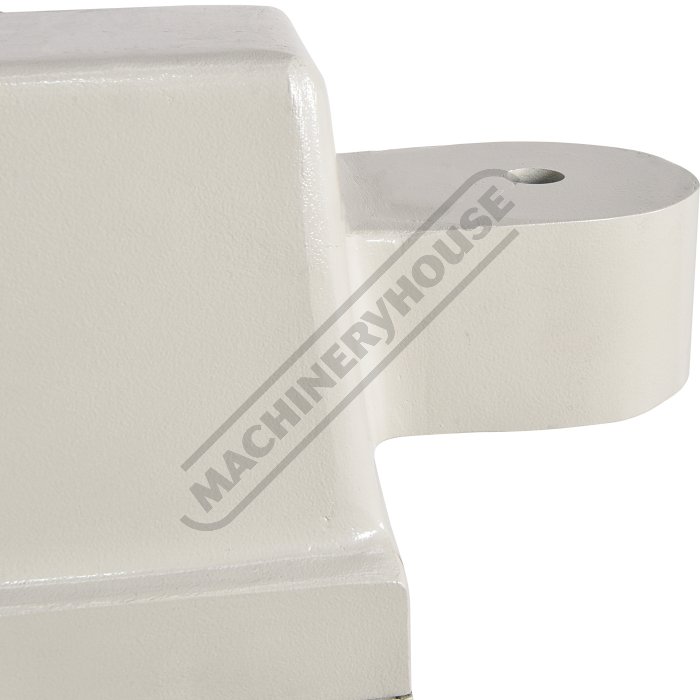

  • 26 of 31
    Tail Leg Spigot Supports Slotting Head

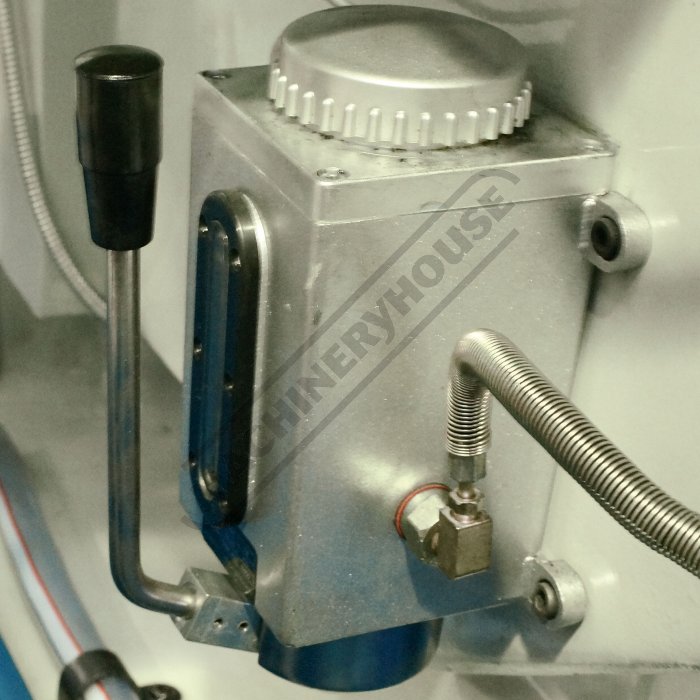

  • 27 of 31

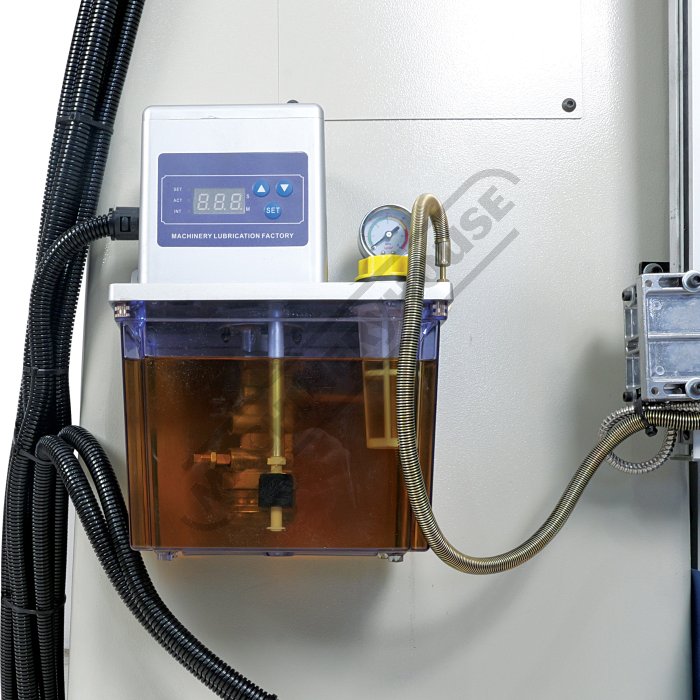

    Lubrication Pump

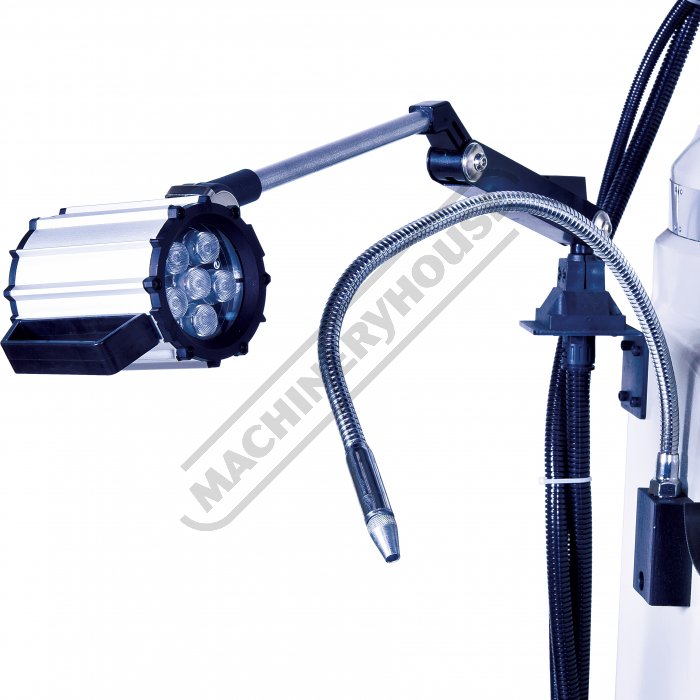

  • 28 of 31

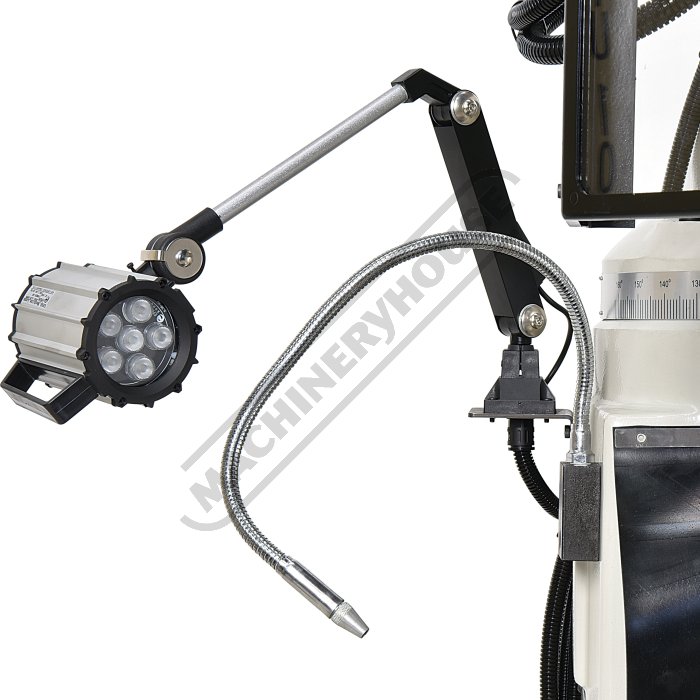

    Worklight and Coolant Hose
  • 29 of 31

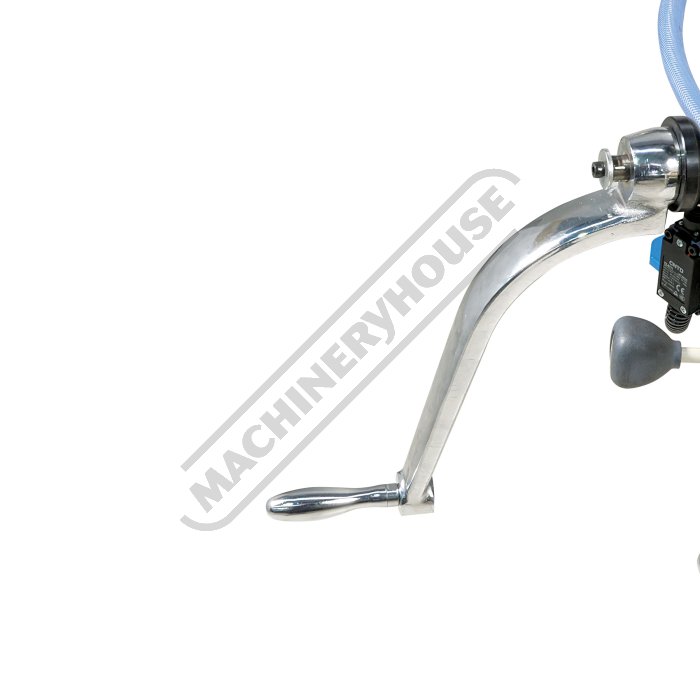

    Z Axis Handle
  • 30 of 31

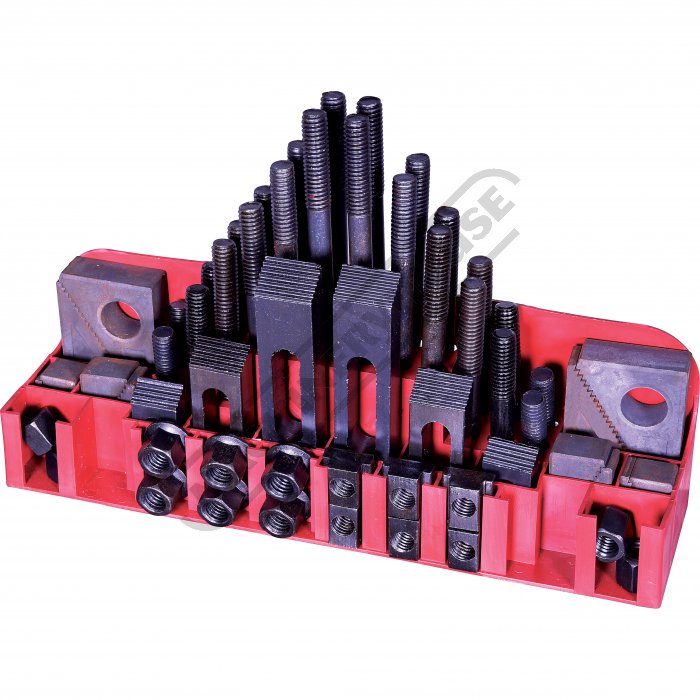

    Clamp Kit

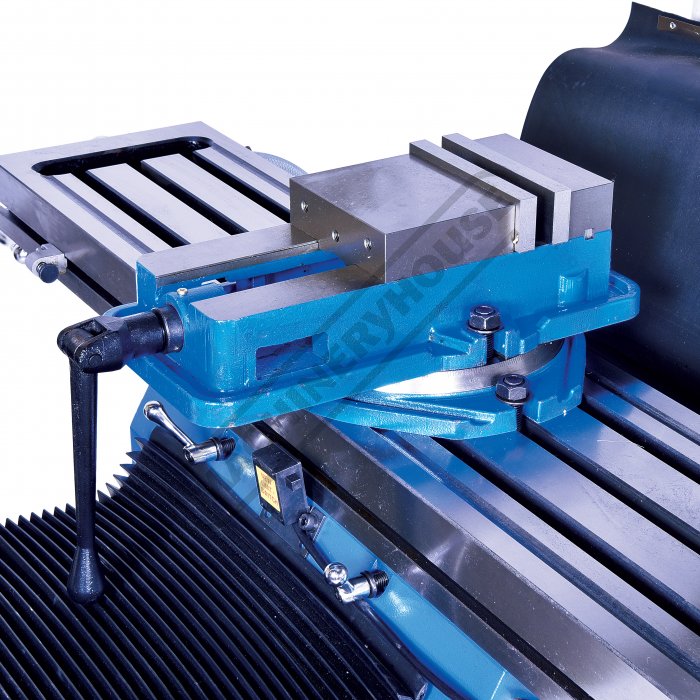

  • 31 of 31
    Machine Vice
Order Code: M598D
BM-62VE - Turret Milling Machine (415V)
(X) 865mm (Y) 420mm (Z) 400mm
Includes Digital Readout, Vice & Clamp Kit
HAFCO METALMASTER
ORDER CODE
M598D
MODEL
BM-62VE
Digital Readout
3-Axis Digital Readout
Type
Vertical
Table Size (mm)
1370 x 254
Spindle Taper - Vertical
NT40
Longitudinal Travel (X-Axis) (mm)
865
Cross Travel (Y-Axis) (mm)
420
Vertical Travel (Z-Axis) (mm)
400
Type of Slides
Dovetail (X), Square (Y & Z)
Ram Travel (mm)
535
Spindle to Table (mm)
460
Quill Travel / Diameter (mm)
130 / 105
Throat Depth (max.) (mm)
765
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
±45º
Power Feed - Quill (mm/rev)
0.076 / 0.038 / 0.152
Power Feed - Longitudinal (X-Axis) (mm/min)
20 - 2000
Power Feed - Cross (Y-Axis) (mm/min)
20 - 2000
Power Feed - Vertical (Z-Axis) (mm/min)
Rapid
Table T-Slot Size (inch / mm)
5/8
Work Table Load Capacity (kg)
400
Spindle Speeds Vertical (No./ rpm)
Variable (50 - 3750)
Motor Power - Vertical (kW / hp)
3.75 / 5
Voltage / Amperage (V / amp)
415
Overall Height (mm)
2184
Nett Weight (kg)
1230
Description
Quality product representing excellent value
Features
  • 3 Axis digital readout fitted
  • 5HP 415V motor with mechanical variable speed system
  • NT40 Spindle taper with a 105mm chrome & ground quill
  • Hardened & ground work table & slide-ways
  • Square construction slides for Y & Z-Axis to maximise rigidity
  • Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
  • Powered elevating motor for Z-Axis
  • Meehanite casting for high strength & minimal deformation
  • Quality electrics & overload protection in an easy access enclosure
  • Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
  • The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
  • High / neutral and low gear selection lever to maximise torque
  • X & Y-Axis power-feed with adjustable micro switch feed stops
  • Coolant system, halogen light, 150mm machine vice & swarf tray
  • Micro switch on the manual knee handle for additional operator safety
  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Automatic quill feed 0.076, 0.038, 0.152mm/rev
  • Automatic cut off depth stop on quill
  • Oil lubrication pump and reservoir
  • Slide-way covers Y & Z-Axis
  • Mill head tilts to ±45º forward and back
  • Mill head tilts to ±90º left and right
  • Manual quick action quill lever
  • Mechanical spindle brake
  • Tool box and manual
Includes
  • 3 Axis digital readout fitted
  • One-shot oil lubrication pump and reservoir
  • Drawbar M16 thread
  • Coolant system
  • Slideway covers
  • Z-Axis powered elevating motor
  • X & Y-Axis power-feed
  • Halogen light
  • Machine vice (150mm)
  • Clamp kit
  • Safety cutter guard
  • Swarf tray
Product Brochure

Instruction Manual
4.08 MB
