Mill Drill - Geared & Tilting Head
  • 1 of 26
  • 2 of 26
    Left View
  • 3 of 26
    Tilting Head
  • 4 of 26
    Control Panel
  • 5 of 26
    Digital Tilting Head Gauge
  • 6 of 26

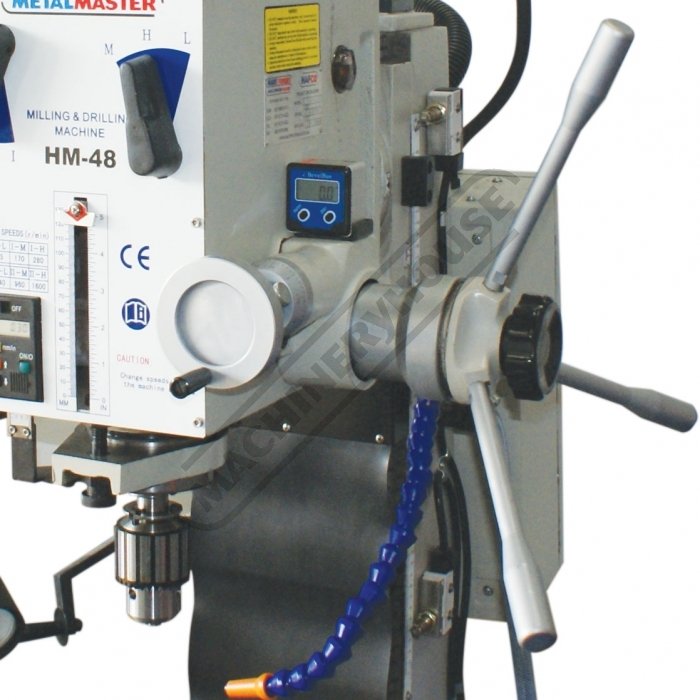

    Milling Head & Quill Handle
  • 7 of 26
    Digital Readout on Quill Depth
  • 8 of 26
    Spindle Speed Controls
  • 9 of 26
    Speed Chart
  • 10 of 26
    Power Feed X Axis
  • 11 of 26
    Vertical Power Feed Motor
  • 12 of 26
    Manual Vertical Fine Feed Handle
  • 13 of 26
    Table Limit Switch
  • 14 of 26
    Motorised Head Safety Lock
  • 15 of 26
    Aluminum Motor
  • 16 of 26
    Swivel Head Adjustment
  • 17 of 26
    Dovetail Slide
  • 18 of 26
    Quill Depth Stop Gauge
  • 19 of 26
    Height Micro Limit Switch
  • 20 of 26
    Dial Graduations
  • 21 of 26
    Keyed Drill Chuck
  • 22 of 26
    Halogen Light
  • 23 of 26
    Flexible Coolant Hose
  • 24 of 26
    On Off Switch
  • 25 of 26
  • 26 of 26
    Includes These Accessories
Order Code: M126
HM-48 - Mill Drill - Geared & Tilting Head (240V)
(X) 540mm (Y) 185mm (Z) 410mm
Dovetail Column
Digital Readout
Table Size (mm)
820 x 240
Column Type
Spindle Taper - Vertical
Longitudinal Travel (X-Axis) (mm)
Cross Travel (Y-Axis) (mm)
Vertical Travel (Z-Axis) (mm)
Type of Slides
Spindle to Table (mm)
Quill Travel / Diameter (mm)
120 / 75
Throat Depth (max.) (mm)
Tilting Head (Left ~ Right)
Tilting Head (Forward ~ Back)
Drilling Capacity (mm)
End Milling Capacity (mm)
Face Milling Capacity (mm)
Power Feed - Longitudinal (X-Axis) (mm/min)
Table T-Slot Size (inch / mm)
Work Table Load Capacity (kg)
Spindle Speeds Vertical (No./ rpm)
6 (95 - 1600)
Motor Power - Vertical (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
240 / 10
Overall Height (mm)
Nett Weight (kg)
  • Gear driven head with 6 speeds
  • Dovetail vertical Z-Axis
  • Pendant control with swivel arm
  • Mill head tilts to ±90º from vertical with digital display
  • Large 820 x 240mm ground work table with T-slots
  • Adjustable leadscrew nuts eliminating backlash on both axis
  • Fine feed hand wheel operating quill feed
  • Digital depth display with zero reset for quill (Includes LR44 battery)
  • Digital tilting head gauge
  • Longitudinal X-Axis power feed
  • Motorised head for Z-Axis travel
  • Forward and reverse on/off switch
  • 3MT spindle with 75mm diameter lockable quill
  • Adjustable table and drill length stops
  • Metric dial graduations @ 0.05mm for X & Y-Axis
  • Rear slide-way cover and slide clamps on all axis
  • Table lock on both axis
  • Heavy duty cast iron stand with coolant tray
  • Includes coolant system, swarf tray & work light
  • Cast iron stand
  • Coolant system
  • X-Axis power feed unit
  • Motorised vertical head motor
  • Halogen light
  • Digital depth display
  • Digital tilting head gauge
  • Drill chuck & arbor
  • Face cutter & arbor
  • Safety cutter guard
