THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > L830 (RC-450HD)

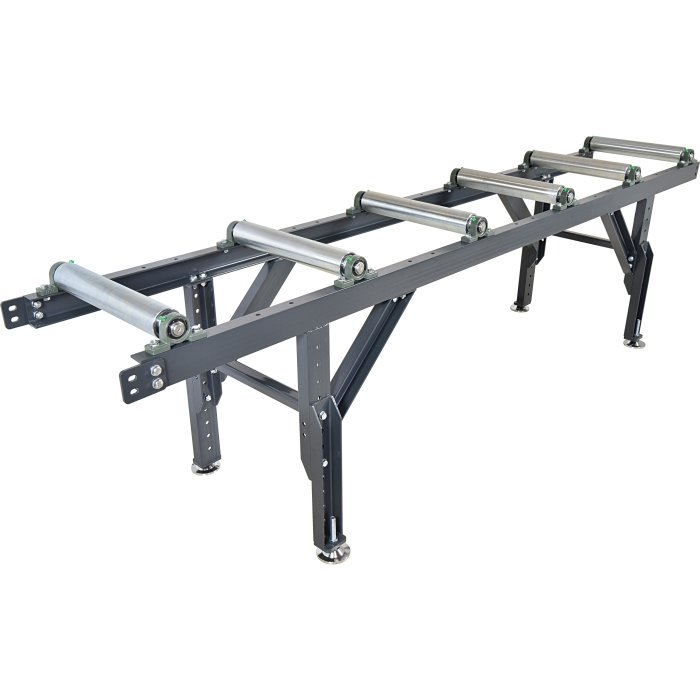

Roller Conveyor with Adjustable Stands - Heavy Duty
  • 1 of 6
  • 2 of 6
  • 3 of 6
    Adjustable Feet
  • 4 of 6
  • 5 of 6
    Heavy Duty Frame
  • 6 of 6

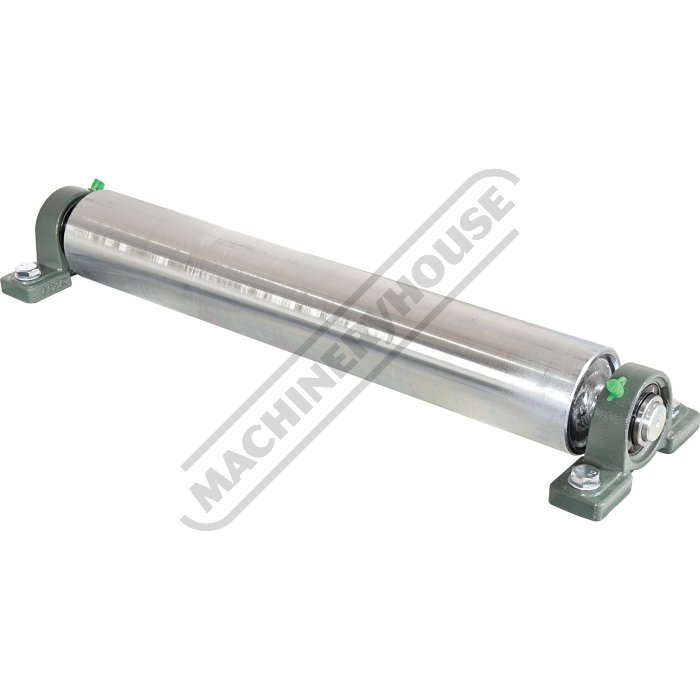

    Heavy Duty Roller Axle
Order Code: L835
RC-600HD - Roller Conveyor with Adjustable Stands - Heavy Duty
690 x 3000mm
Ø60mm Rollers
Roller Load Capacity - (each) (kg)
Total Load Capacity (kg)
Number of Rollers (No.)
Table Width (W) (mm)
Table Length (L) (mm)
Roller Table Height (H) (mm)
Roller Diameter (mm)
Roller Table Height (mm)
600 - 950
  • Roller capacity of 150kg each
  • 10 x Zinc plated steel rollers at 300mm pitch
  • Adjustable roller table height 600-950mm
  • Rollers are 600mm wide x Ø60mm with commercial bearings
  • Frame is constructed from steel channel for addition strength

  • Please Note:
  • Roller load capacity is calculated on even weight distribution over entire roller
  • Total load capacity is calculated on even weight distribution over entire roller conveyor system

  • 10 steel rollers @ 300mm pitch
  • 3 x heavy duty adjustable stands
