RCS-290 - Length Stop To Suit Roller Conveyor
3000mm
Suits RC-290 Conveyor
L8001 of 24
Shown Demonstrated with Coldsaw2 of 24
Shown with Optional Roller Conveyor and Stands3 of 24
Front Full View4 of 24

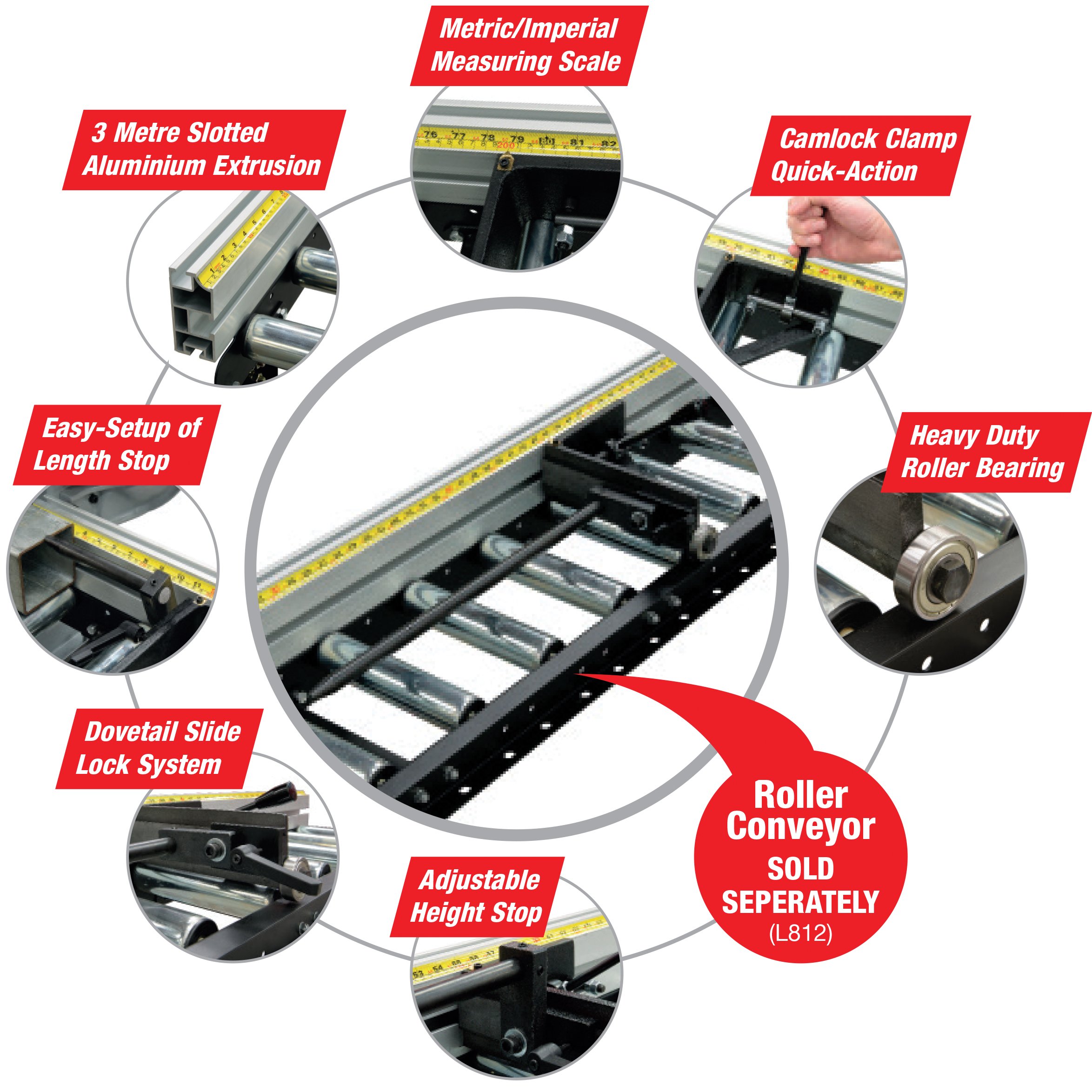

Overview5 of 24
Shown with Material6 of 24
Aluminium Extrusion with T Slots7 of 24
Length Indicator Arrow8 of 24
Camlock Quick-Action Clamp9 of 24
Heavy Duty Roller Bearing10 of 24

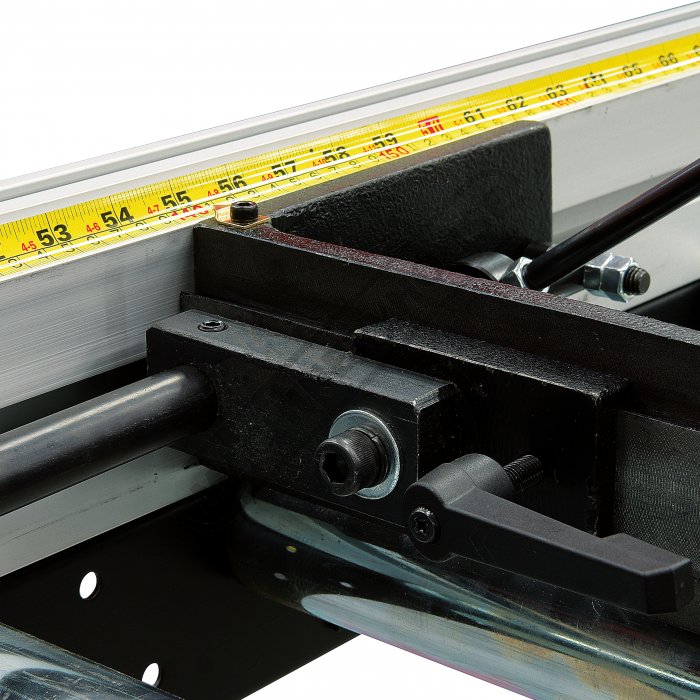

Length Stop Swivel Adjustment 111 of 24
Length Stop Swivel Adjustment 212 of 24
Length Stop Swivel Adjustment 313 of 24
Dovetail Slide & Lock System 114 of 24
Dovetail Slide & Lock System 215 of 24
Front Low View Close Up16 of 24
Front View Close Up17 of 24
Rear Top View Close Up18 of 24

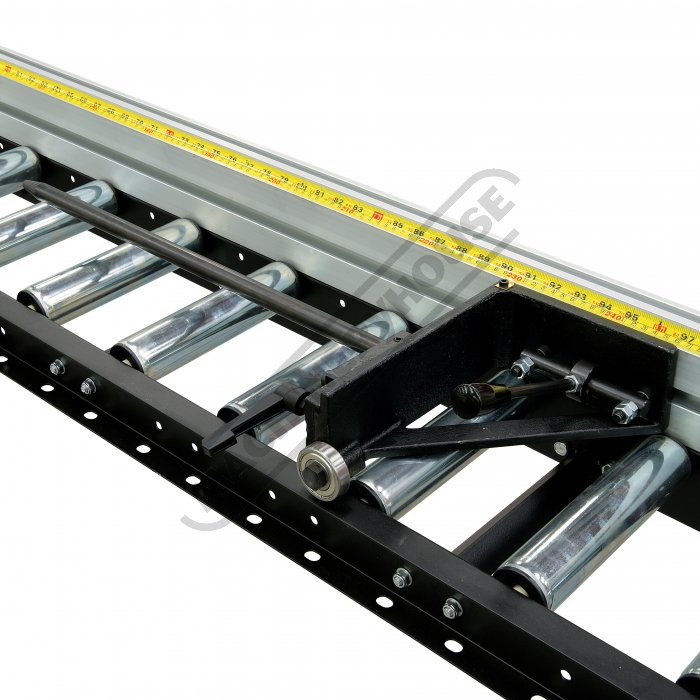

Rear View Close Up19 of 24
Rear Low View Close Up20 of 24
Rear Full View21 of 24
Rear View22 of 24
Full View Shown Setup Up on Roller Conveyor 223 of 24
Full View Shown Setup Up on Roller Conveyor 324 of 24
On Sale - Limited Stock
Order Code: L800
ex-gst
inc-gst
$
650.00
$
715.00
$
540.00
$
594.00
1 Year Warranty
Made in Taiwan
Description
RCS-290 - Length Stop To Suit Roller Conveyor
3000mm
Suits RC-290 Conveyor
Overview
PLEASE NOTE: Roller Conveyor & Stand Not Included
Features
- Suits: 290mm roller conveyor system (L812)
- 3000mm length of Aluminium extrusion with T-Slots for easy mounting
- Designed specifically to suit Hafco (L812) 290mm x 3 Metre roller conveyor
- Length stop has quick-action clamp coupled with a heavy duty roller bearing
- Includes metric/imperial measuring tape
- Easily fitted to conveyor by drilling 4 holes
- Includes mounting hardware
Compare Product Range
Specifications
| ORDER CODE | L800 |
|---|---|
| MODEL | RCS-290 |
| (mm)Length Stop Length | 3000 |
| (mm)Suits Conveyor Width | 290 |
Packaging
| Box | Length (m) | Width (m) | Height (m) | Gross Weight (kg) |
|---|---|---|---|---|
| 1 | 3.000 | 0.100 | 0.050 | 9.00 |
| 2 | 0.520 | 0.020 | 0.020 | 1.00 |
| 3 | 0.270 | 0.190 | 0.240 | 1.50 |
| 4 | 0.100 | 0.030 | 0.040 | 5.00 | Total | 16.50 |
