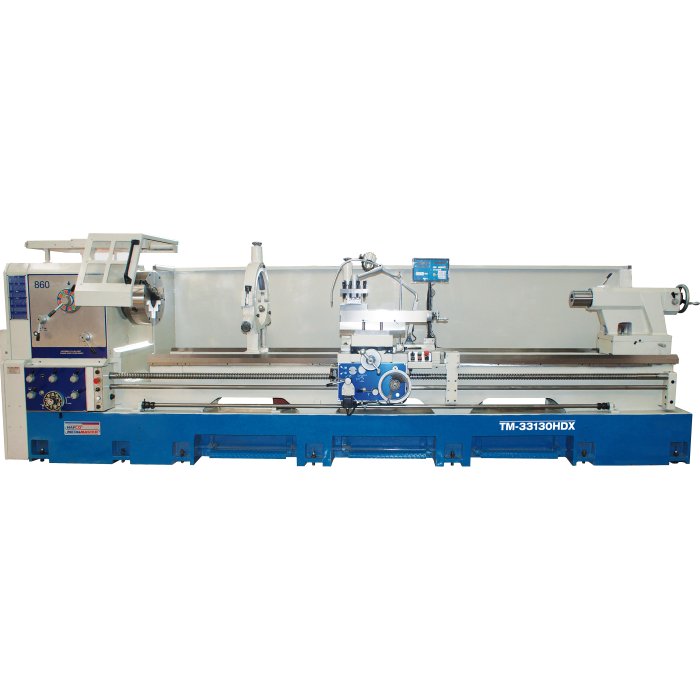

HAFCO METALMASTERTM-33130HDX
Heavy Duty Centre Lathe - BIG BORE
  • 1 of 33
    L645D
  • 2 of 33

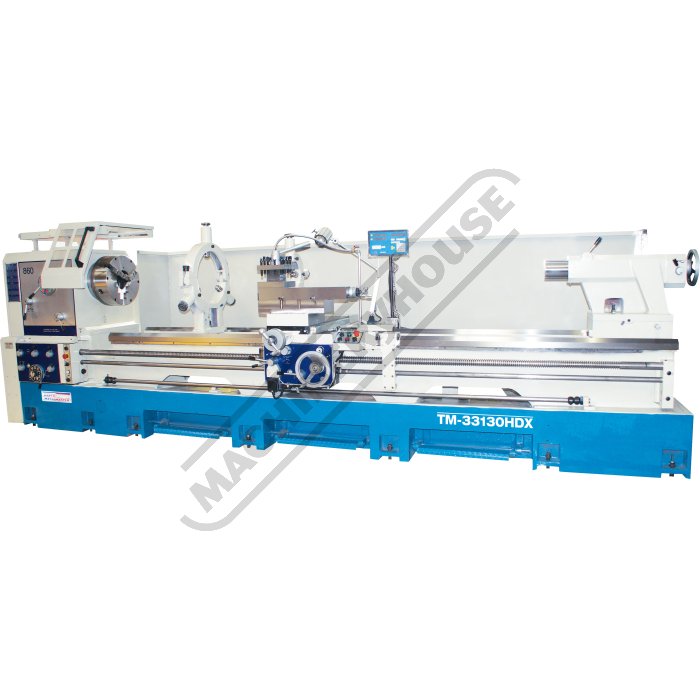

    Right View
  • 3 of 33

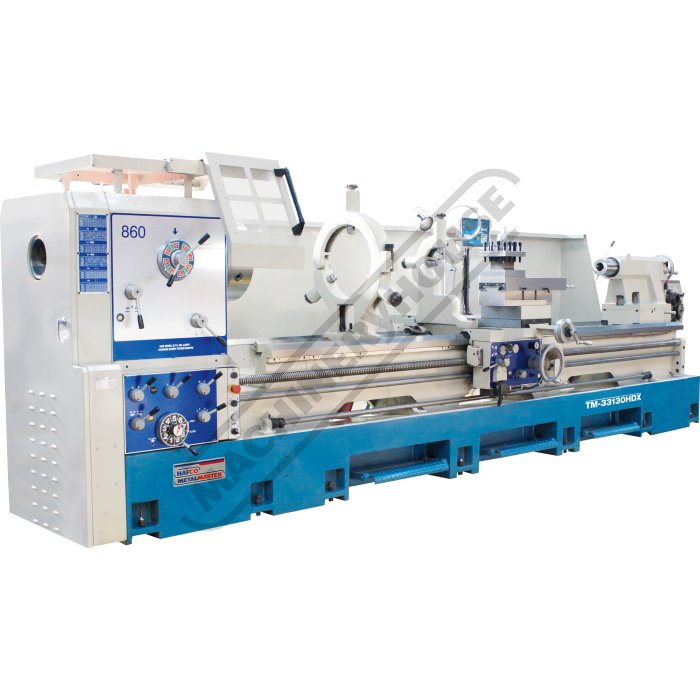

    Left View
  • 4 of 33
    Digital Read Out
  • 5 of 33
    Spindle Speed Selectors
  • 6 of 33
    Thread Charts
  • 7 of 33
    Spindle Speeds
  • 8 of 33
    Universal Enclosed Gearbox
  • 9 of 33
    Safety Chuck Guard
  • 10 of 33
    Travelling Steady
  • 11 of 33
    Removeable Gap Bed
  • 12 of 33
    Saddle Left View
  • 13 of 33
    Saddel Front View
  • 14 of 33
    Saddle Right View
  • 15 of 33
    Compound Slide
  • 16 of 33
    Saddle Control
  • 17 of 33
    Saddle Switch Board
  • 18 of 33
    Saddle Hand Wheel
  • 19 of 33
    Thread Chasing Dial
  • 20 of 33
    Saddle Feed Controls
  • 21 of 33
    Leadscrew and Feedscrew Support Recovered
  • 22 of 33
    Longitudinal Feed Knockout System
  • 23 of 33
    Compound Slide Hand Wheel
  • 24 of 33
    Cross Slide Hand Wheel
  • 25 of 33
    Swivel Compound Slide
  • 26 of 33
    Tailstock Quill
  • 27 of 33
    Tailstock 2 Speed
  • 28 of 33
    Tailstock
  • 29 of 33
    Tailstock Rear View
  • 30 of 33
    Tailstock Moving Device Rear View
  • 31 of 33
    V Bed
  • 32 of 33
    Tailstock Moving Device Locked Position
  • 33 of 33
    Foot Brake tmp912535803
Order Code: L645D
TM-33130HDX - Heavy Duty Centre Lathe - BIG BORE (415V)
860 x 3310mm Turning Capacity - 153mm Spindle Bore
Includes Digital Readout
HAFCO METALMASTER
ORDER CODE
L645D
MODEL
TM-33130HDX
Swing Over Bed (mm)
860
Distance Between Centres (mm)
3310
Spindle Bore (mm)
153 (Optional 230)
Swing In Gap (mm)
1000
Swing Over Cross-slide (mm)
620
Digital Readout System Fitted
Quick Change Toolpost Fitted
Optional
Taper Turning Attachment
Optional
Coolant System
Tool Height To Suit (mm)
32
Centre Height (mm)
430
Spindle Nose Size or Type
A2-11
Bed Width (mm)
510
Headstock Spindle Taper (MT)
7
Tailstock Taper (MT)
6
Cross Slide Travel (mm)
480
Compound Slide Travel (mm)
330
Leadscrew Type
Metric
Metric Cross Feed (X-Axis) (mm/rev)
0.025 - 0.35
Metric Longitudinal Feed (Z-Axis) (mm/rev)
0.05 - 0.7
Metric Thread Steps & Pitch (No. / mm)
37 (0.8 - 14)
Imperial Thread Steps & TPI (No. / TPI)
36 (2 - 28)
3 Jaw Chuck Diameter (mm)
400
4 Jaw Chuck Diameter (mm)
500
Spindle Steps / Speeds (No. / rpm)
12 (8 - 680)
Motor Power (kW / hp)
15 / 20
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
6800
Description
Manufactured in Taiwan

This Heavy Duty Precision Centre lathe is produced by a Quality Taiwanese manufacturer
Features
  • 2 Axis digital readout system
  • Triple SKF German made bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision '3V'-bed-way is induction hardened & ground
  • High quality one-piece Meehanite cast base increases rigidity
  • All gears and shafts made from alloy steel and are hardened & ground
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • X & Z axis rapid traverse on the saddle @ 4.0m/min
  • 510mm wide induction hardened heavy duty cast iron bed
  • Adjustable 4 position length-stop mechanism for accurate repetitive operation
  • Removable gap bed allowing work piece to swing up to 1000mm
  • Powered longitudinal and cross feeds
  • One piece cast iron base increases rigidity
  • Metric calibrated dials
  • 2 speed tailstock geared for large and small drilling bits
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Lubrication pump on saddle oiling slides
  • Oil sight glass for head stock and gearbox & apron
  • Low voltage halogen work light
  • Ball bearing mechanism assists tail stock movement easily
  • A2-11 direct spindle mount
  • 12 spindle speeds 8-680rpm
  • Large 153mm spindle bore, (Option 230mm)
  • 15kW / 20HP 415V main motor
Includes
  • 2 Axis digital readout system
  • 400mm 3-jaw chuck with reversing jaws
  • 500mm 4-jaw chuck
  • Faceplate
  • Fixed and travelling steadies with roller fingers
  • Dead centres
  • Spindle reducing bush
  • Full length rear splash guard
  • Tailstock moving device
Product Brochure

Floor Dimensions
214.1 KB
Instruction Manual
5.35 MB
