HAFCO WOODMASTERL-612A
Belt & Disc Linisher Sander
  • 1 of 16
    L109
  • 2 of 16
    Tilting Table
  • 3 of 16
    On Off Switch
  • 4 of 16
    Switch Open
  • 5 of 16

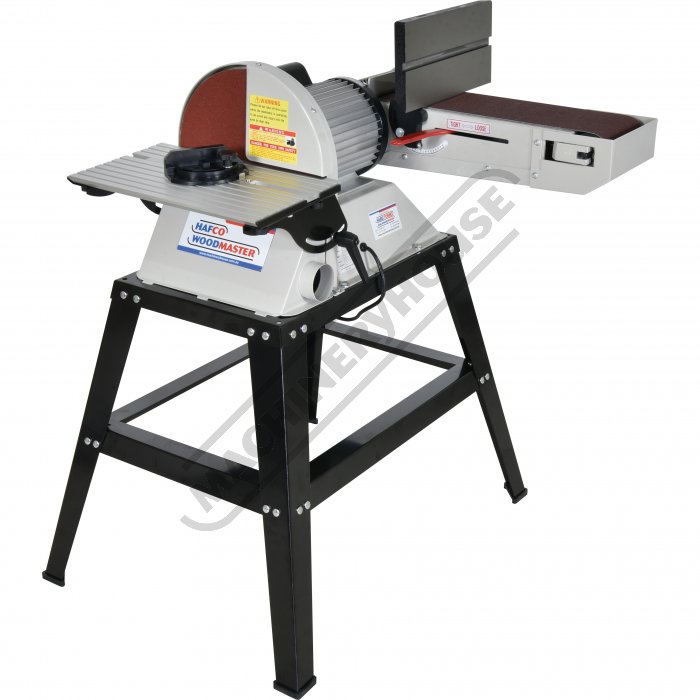

    Horizontal Linishing Position
  • 6 of 16
    Horizontal Linishing Position
  • 7 of 16

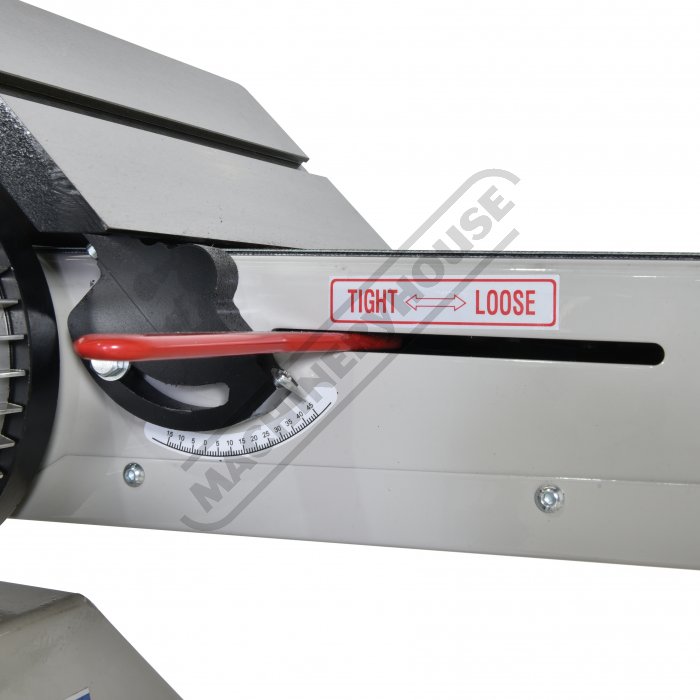

    Quick Belt Release Lever
  • 8 of 16

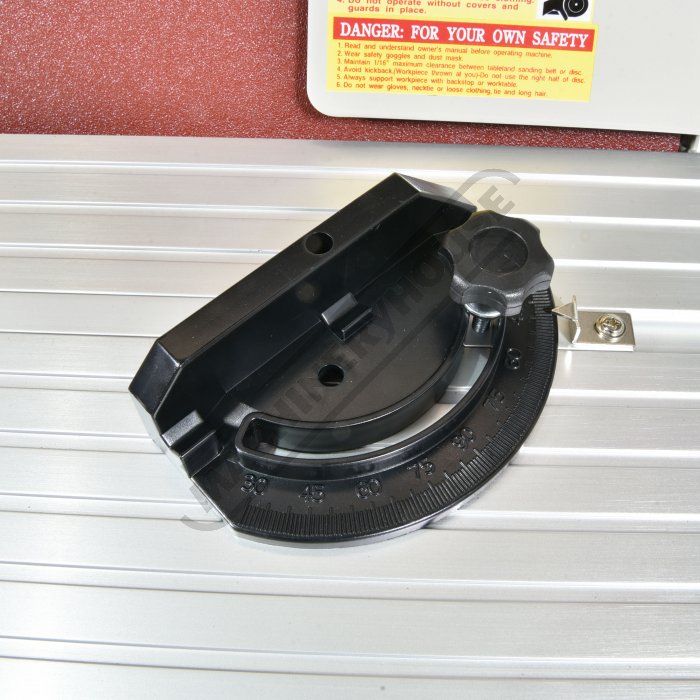

    Mitre Guide
  • 9 of 16
    65mm Dust Chute to Disc
  • 10 of 16

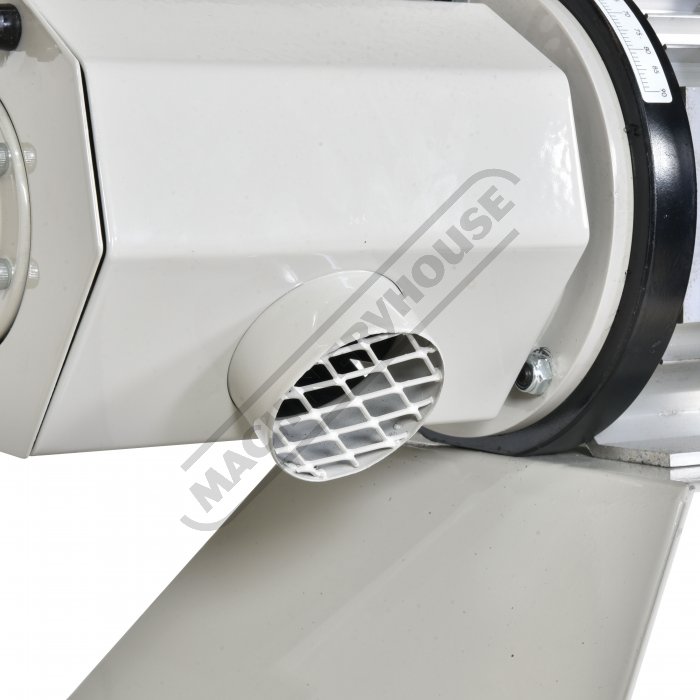

    65mm Dust Chute to Belt
  • 11 of 16
    Side View
  • 12 of 16

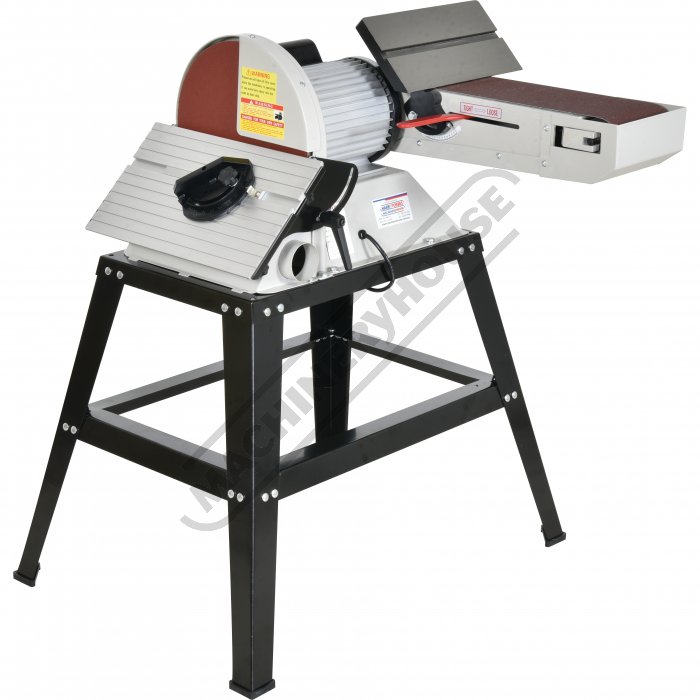

    Tilting Table with Mitre Guide
  • 13 of 16
    Front View
  • 14 of 16

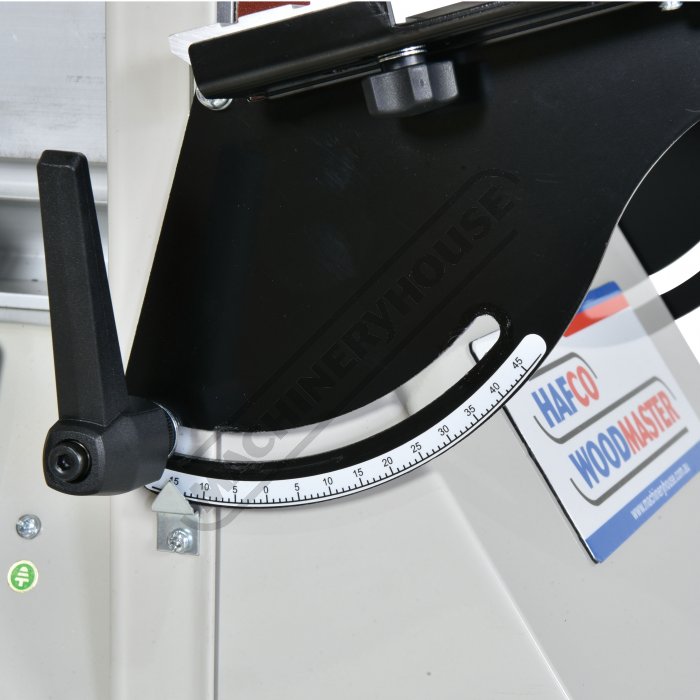

    Tilt Table
  • 15 of 16

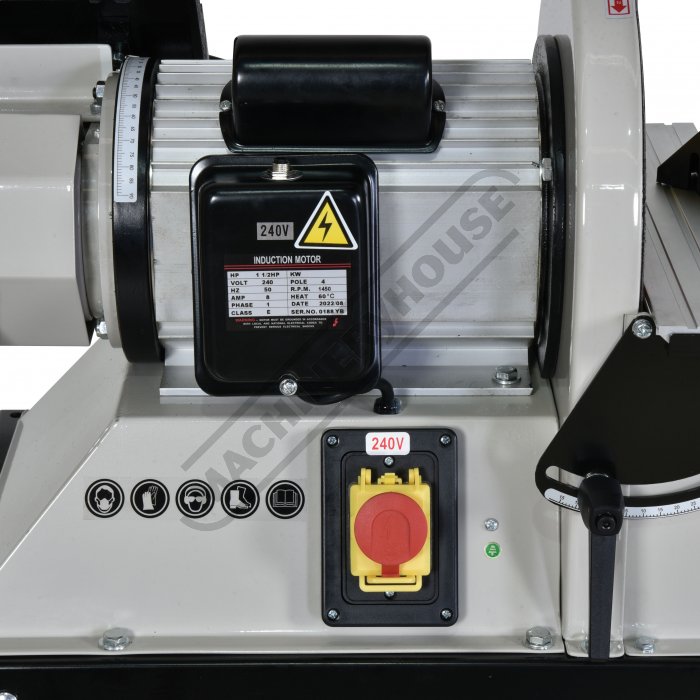

    Motor
  • 16 of 16

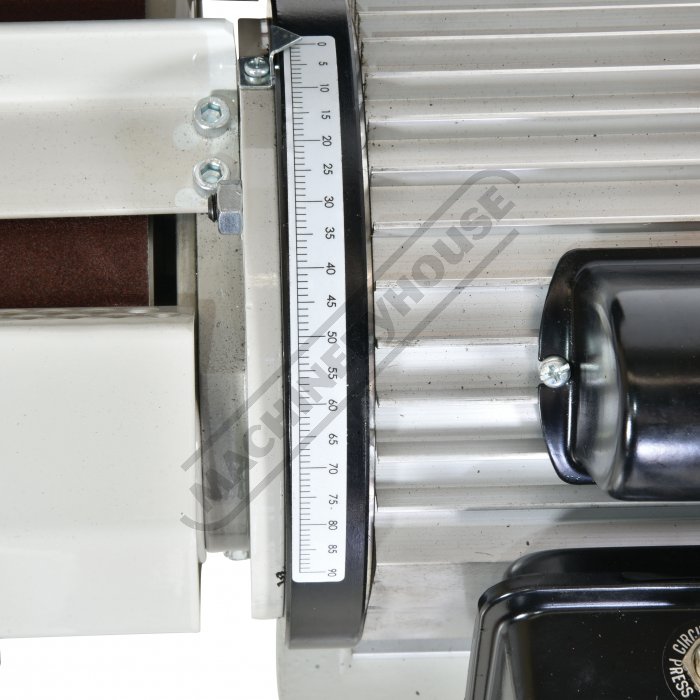

    Linishing Position Angle Gauge
Order Code: L109
L-612A - Belt & Disc Linisher Sander (240V)
150 x 1220mm (W x L) Belt
Ø305mm Disc
HAFCO WOODMASTER
ORDER CODE
L109
MODEL
L-612A
Belt Size (mm)
150 x 1220
Disc Diameter (mm)
Ø305
Motor Power (kW / hp)
1.1 / 1.5
Voltage / Amperage (V / amp)
240 / 10
Floor Space (W x D x H) (mm)
920 x 840 x 1020
Shipping Dimensions (L x W x H) (mm)
740 x 580 x 460
Nett Weight (kg)
68
Description
Manufactured in Taiwan
Features
  • Takes 150mm x 1220mm belt
  • Ø305mm sanding disc
  • Graphite belt pad to reduce friction
  • Tilting table to belt & disc
  • Safety magnetic type switch
  • Heavy duty 1.5HP 240V motor
  • Can use linisher in vertical or horizontal position
  • Cast iron table on linisher
  • Quick action belt release
  • Ø65mm dust collector ports
  • Made in Taiwan
Includes
  • Tilting table and mitre guide
  • Sanding belt & disc
  • Stand
Product Brochure

Instruction Manual
1.51 MB
Select your Postcode & Suburb to estimate the delivery fee for this product.
Postcode & Suburb:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • L-612A (L109)
ORDER CODE
MODEL
Belt Size (mm)
Disc Diameter (mm)
Table Size (mm)
Disc Table Size (mm)
Motor Power (kW / hp)
Voltage / Amperage (V / amp)
Motor Speed (rpm)
Floor Space (W x D x H) (mm)
Shipping Dimensions (L x W x H) (mm)
Nett Weight (kg)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts List
182.96 KB
