Belt & Disc Linisher Sander
  • 1 of 7
  • 2 of 7
    Linishing Belt Dust Chute
  • 3 of 7
    Horizontal Linishing Position
  • 4 of 7
    Tilting Table to 45 degrees
  • 5 of 7
    Tilting Table with Mitre Guide
  • 6 of 7

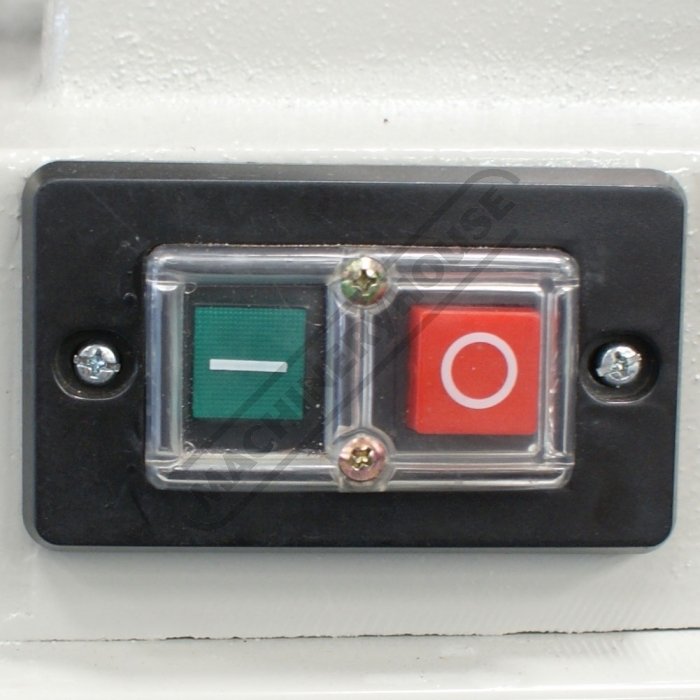

    Magnetic Safety Switch
  • 7 of 7
    Horizontal View
Order Code: L108
L-612 - Belt & Disc Linisher Sander (240V)
150 x 1220mm (W x L) Belt
Ø305mm Disc
Belt Size (mm)
150 x 1220
Disc Diameter (mm)
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
240 / 15
Floor Space (W x D x H) (mm)
880 x 830 x 1080
Shipping Dimensions (L x W x H) (mm)
780 x 680 x 430
Nett Weight (kg)
Manufactured in Taiwan
  • Takes 150mm x 1220mm belt
  • Ø305mm sanding disc
  • Graphite belt pad to reduce friction
  • Cast iron tilting disc table
  • Aluminium tilting belt table
  • Safety magnetic type switch
  • Heavy duty 1.5kW / 2hp 240V cast iron frame motor
  • Can use linisher in vertical or horizontal position
  • Heavy duty quick action belt release
  • Ø100mm dust collector port , Ø80mm port for disc
  • Made in Taiwan
  • Tilting table and mitre guide
  • Sanding belt & disc
  • Stand
Product Brochure
Instruction Manual
6.82 MB
Select your Postcode & Suburb to estimate the delivery fee for this product.
Postcode & Suburb:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • L-612 (L108)
Belt Size (mm)
Disc Diameter (mm)
Table Size (mm)
Disc Table Size (mm)
Motor Power (kW / hp)
Voltage / Amperage (V / amp)
Motor Speed (rpm)
Floor Space (W x D x H) (mm)
Shipping Dimensions (L x W x H) (mm)
Nett Weight (kg)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts List
2.6 MB
