THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Tool Holders - HSS Type - Turning
Lathe Turning Tool Holder - English Style
  • 1 of 5
  • 2 of 5
    Rear View
  • 3 of 5
    Top View
  • 4 of 5
    Shown with Spanner
  • 5 of 5
    Top Front View
Order Code: L075L
Left Hand - Lathe Turning Tool Holder - English Style
16 x 19mm
HSS bit not included
Hand Type
English (Drop Head)

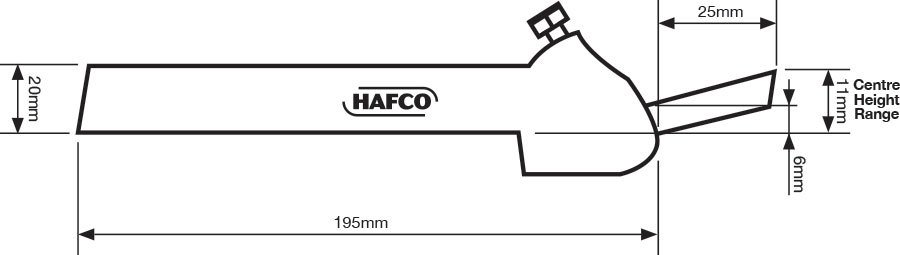

Centre Height Min. - Max. (mm)
6 - 11
Shank Size (W x H) (inch / mm)
5/8 x 3/4" / 16 x 19
Overall Length (inch / mm)
7 1/2" / 190
Tool Bit Capacity ( inch / mm)
1/4" / 6.3
Nett Weight (kg)
For HSS Tool Bits
English Style - to suit 1/4" Tool Steel (Drop Head)

NOTE: HSS Tool bits not supplied
Uses Tool Bit L0003
  • Manufactured from high grade steel
  • Case-hardened and ground
  • Supplied with wrench, but without tool bit
  • Available in straight (S), right (R) and left (L) hand shanks

Product Brochure
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
