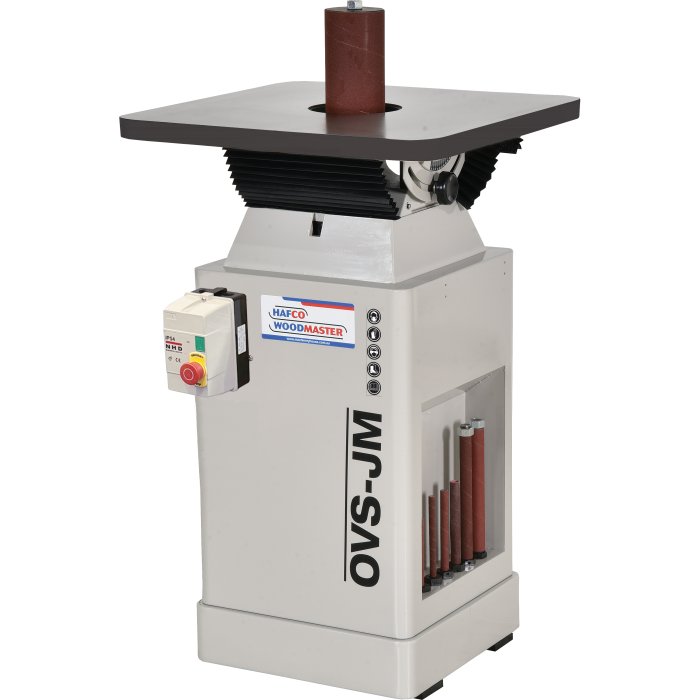

OVS-JM Oscillating Vertical Bobbin Sander
  • 1 of 9
  • 2 of 9

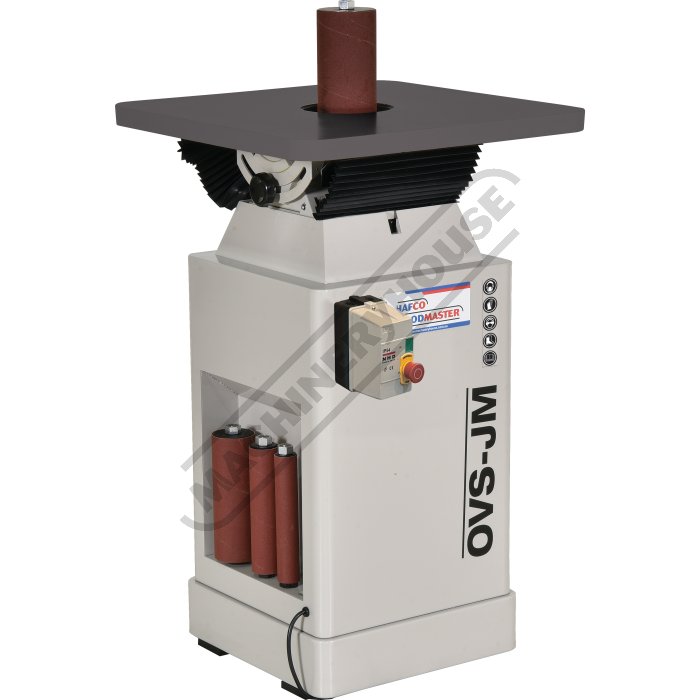

    Side View
  • 3 of 9
    Rear View with Table Tilting
  • 4 of 9

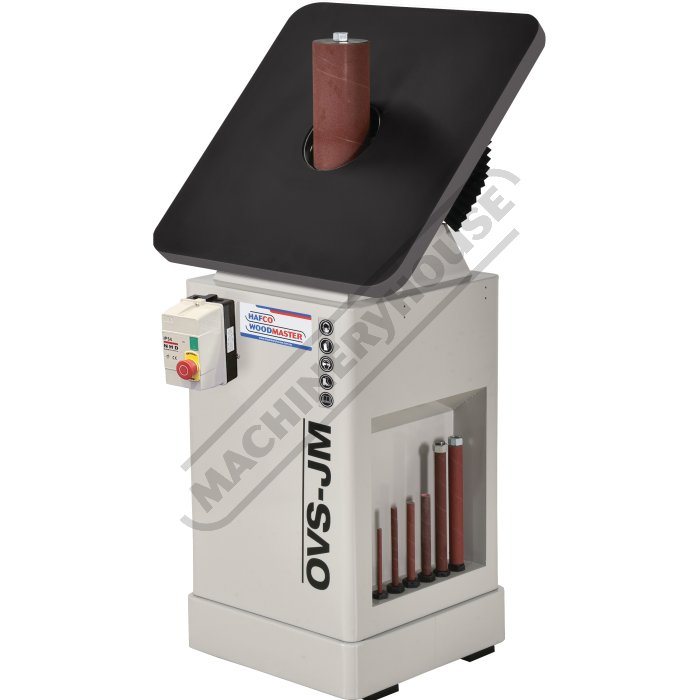

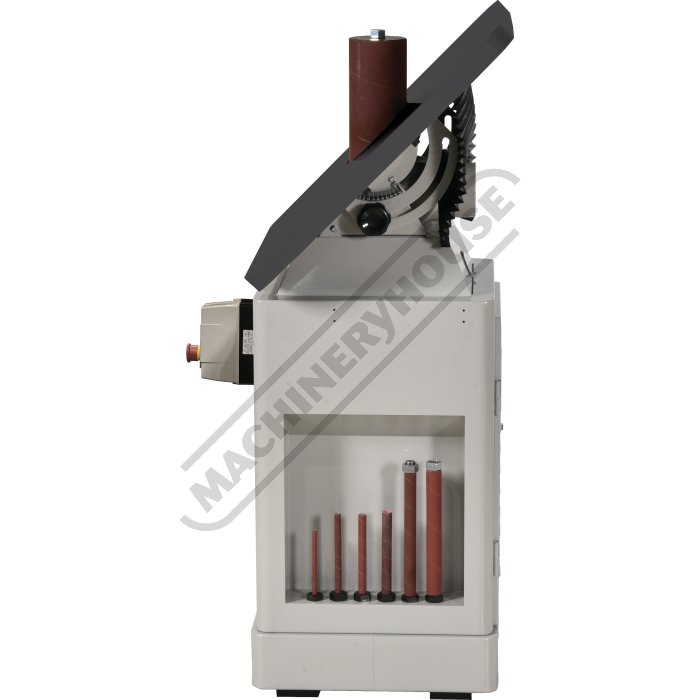

    Table Tilt to 45 Degree
  • 5 of 9

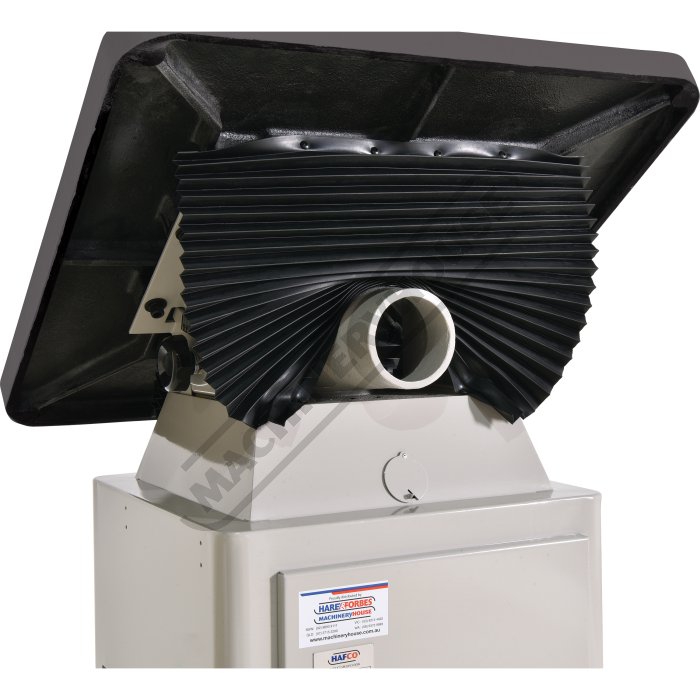

    100mm Dust Extraction Close Up
  • 6 of 9

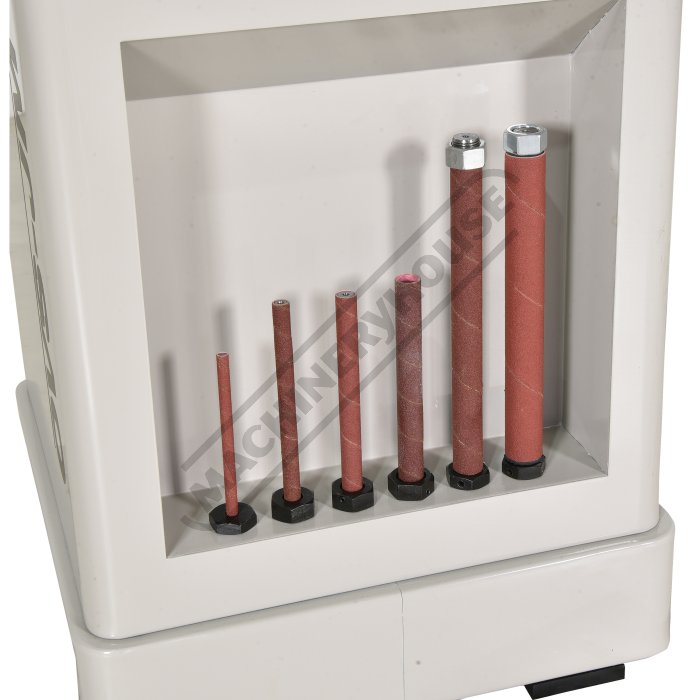

    Sanding Spindle Holders on Right Side
  • 7 of 9

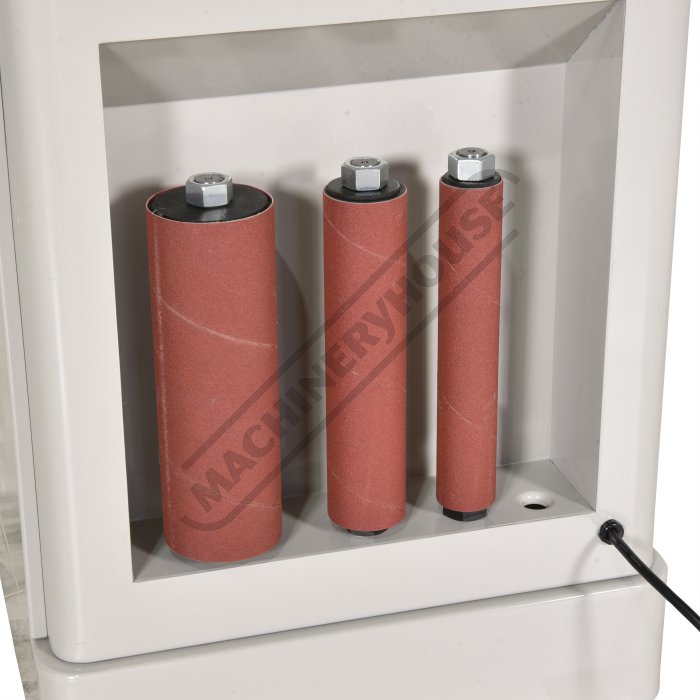

    Sanding Spindle Holders on Left Side
  • 8 of 9
    Rear View
  • 9 of 9

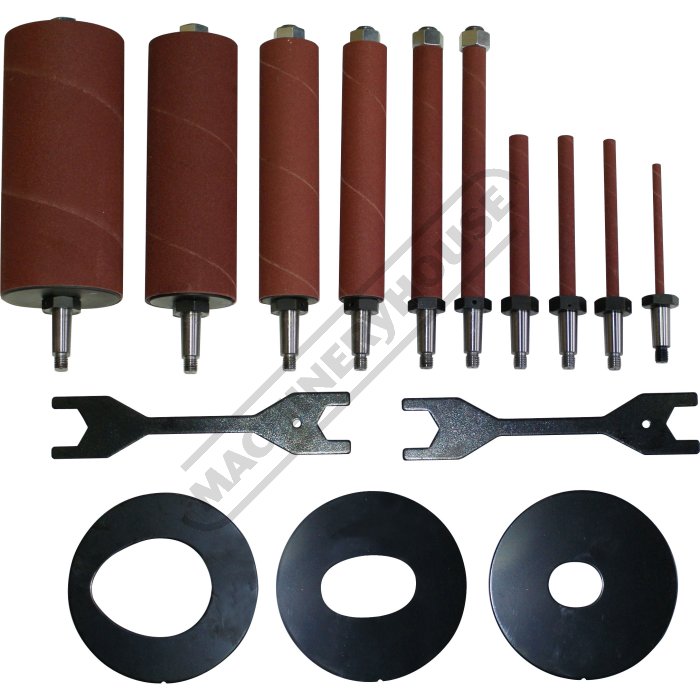

    Sanding Spindles Table Inserts and Spanners
Order Code: K8846
QLD Schools / TAFE - OVS-JM Oscillating Vertical Bobbin Sander (240V)
QLD Contract Item No.44
QLD Contract No.
QLD Item No.44
Schools / TAFE OVS-JM
Sanding Drum Speed (rpm)
Dust Collector Ports (No. x mm)
1 x Ø100
Motor Power (kW / hp)
0.75 / 1
Voltage / Amperage (V / amp)
240 / 10
Nett Weight
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.
  • Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain
  • User- friendly features including dust collection port which allows connection to dust extractor equipment for a cleaner and safer working environment
  • Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain
  • The rubber drum can be fitted on both ends to fully utilise the entire spindle
  • Bobbin oscillation stroke of 38mm to spread workload on sandpaper sleeves.
  • This machine accommodates ten sizes of spindle from 1/4" to 4", diameter to fit the various rubber drum diameters

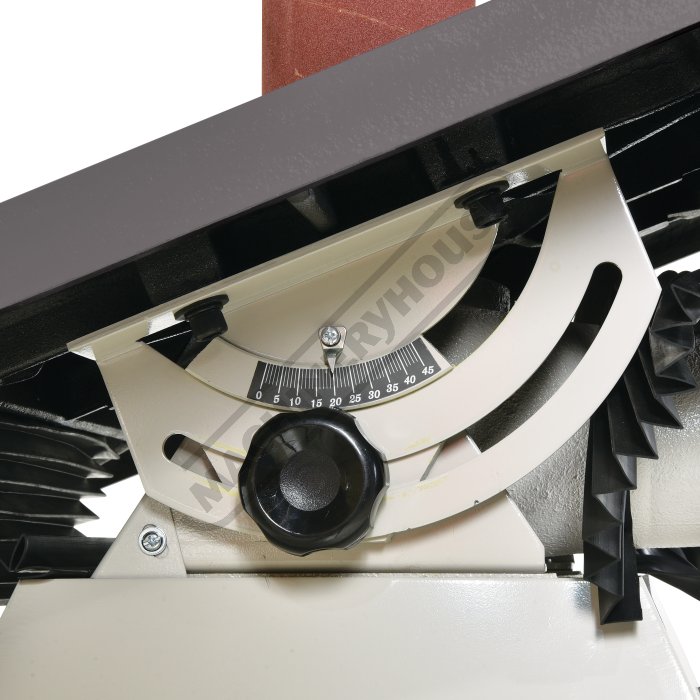

  • The tilting table can be easily tilted by loosening the two lock knobs located at both sides under the table for the sanding of bevelled parts. A graduated scale is attached to read the tilting degree
  • A dust hood is built under the table for connection to dust collector. The dust hood outlet is 4" diameter
  • Spindle change is easily made by using the supplied wrench
  • The oscillating sanding provides an extremely fine sanding finish
  • Easily interchanged spindles
  • The tilting table is precision ground
  • Heavy gauge steel frame
  • On-board accessory storage ensures convenient storage of all drums and table inserts plates
  • Heavy duty precision ground cast iron tilting table 609 x 609mm for greater stability, accuracy and durability
  • Rotating and oscillating action ensures exceptional finishing results
  • Powered by an 1hp 240V motor provides ample power
  • Oscillating per minute: 75 times
  • Sanding spindle speed: 1725rpm
  • Table height: 990mm
  • Sanding Spindles & Sleeves:
  • 1/4" x 5" long
  • 3/8" x 6" long
  • 1/2" x 6" long
  • 5/8" x 6" long
  • 3/4" x 9" long
  • 1" x 9" long
  • 1-1/2" x 9" long
  • 2" x 9" long
  • 3" x 9" long
  • 4" x 9" long
