THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Metal Band Saws - Vertical / Horizontal TAFE

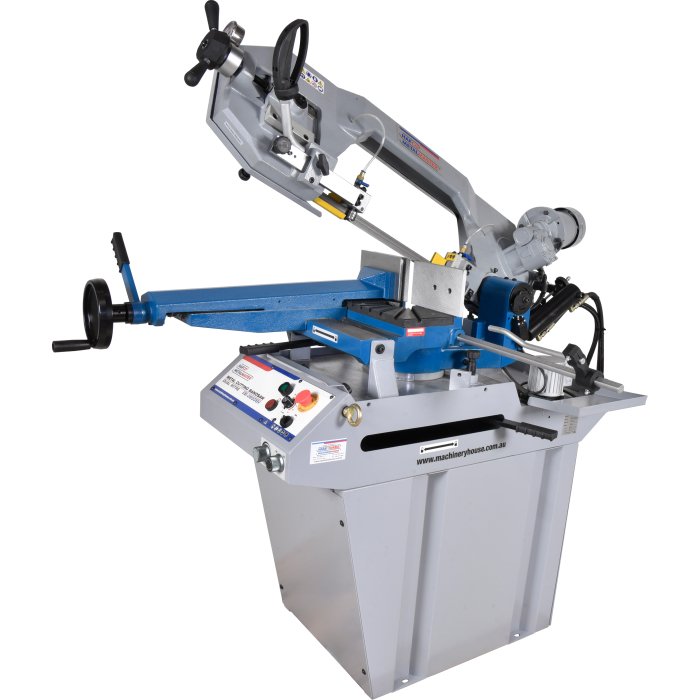

BS-7GRD Swivel Head Band Saw - Geared Drive
  • 1 of 13
  • 2 of 13
    Geared Drive Motor
  • 3 of 13

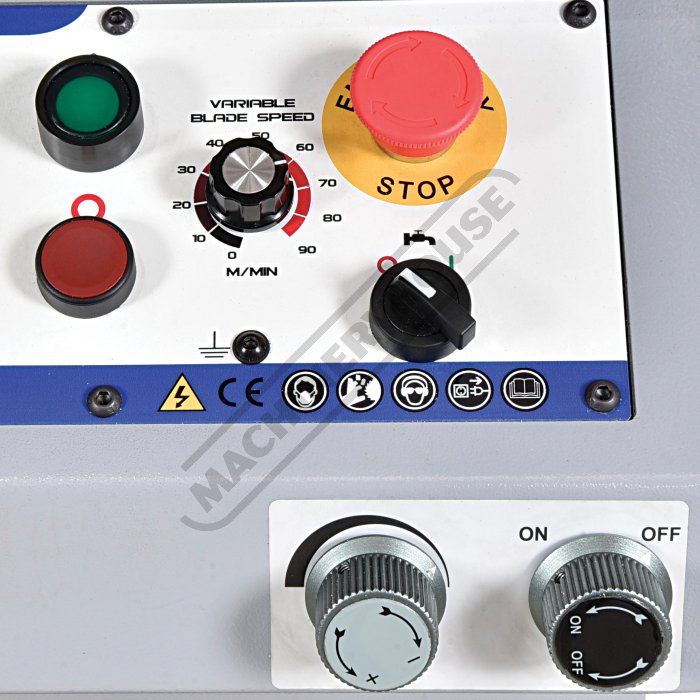

    Speed Change Dial
  • 4 of 13

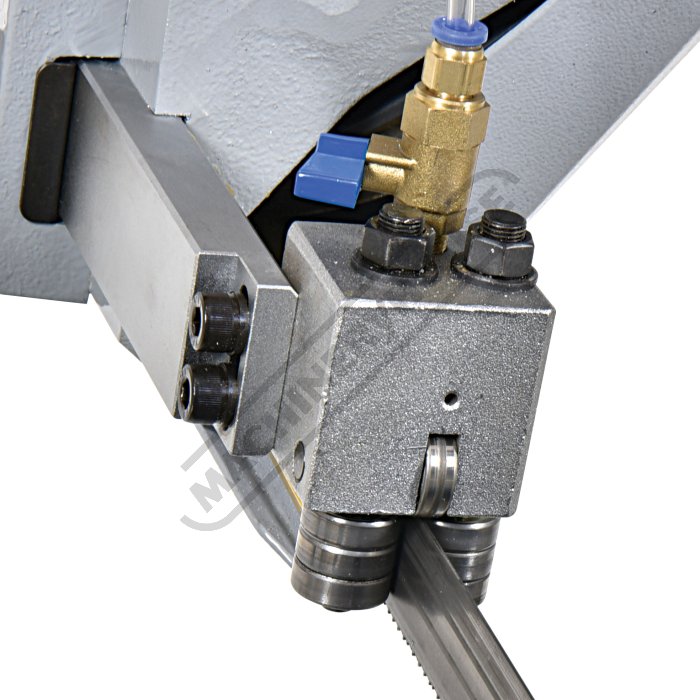

    Blade Guide
  • 5 of 13
    Coolant to Blades
  • 6 of 13
    Head Release Handle
  • 7 of 13

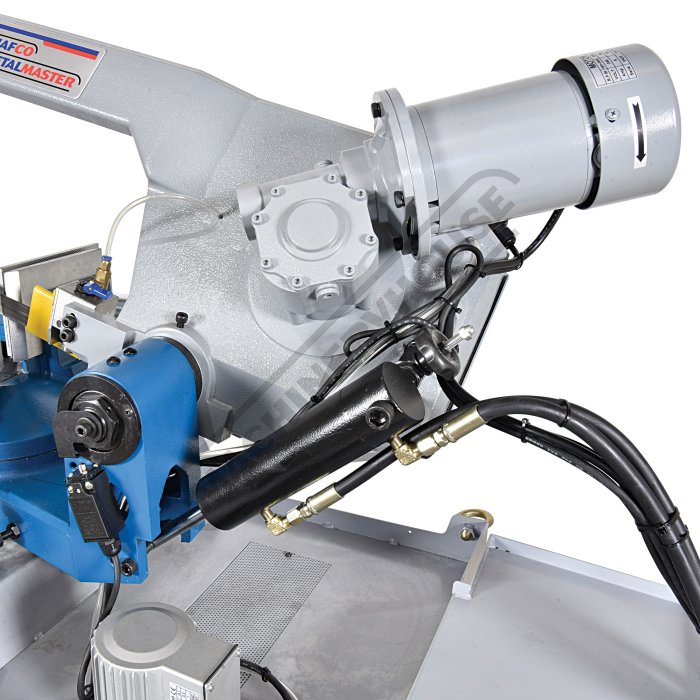

    Hydraulic Ram for Cutting Feed Rate
  • 8 of 13

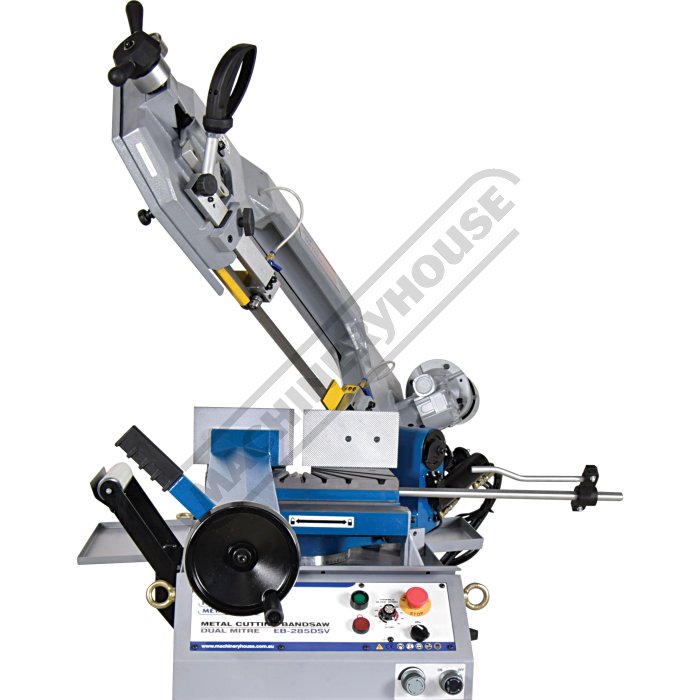

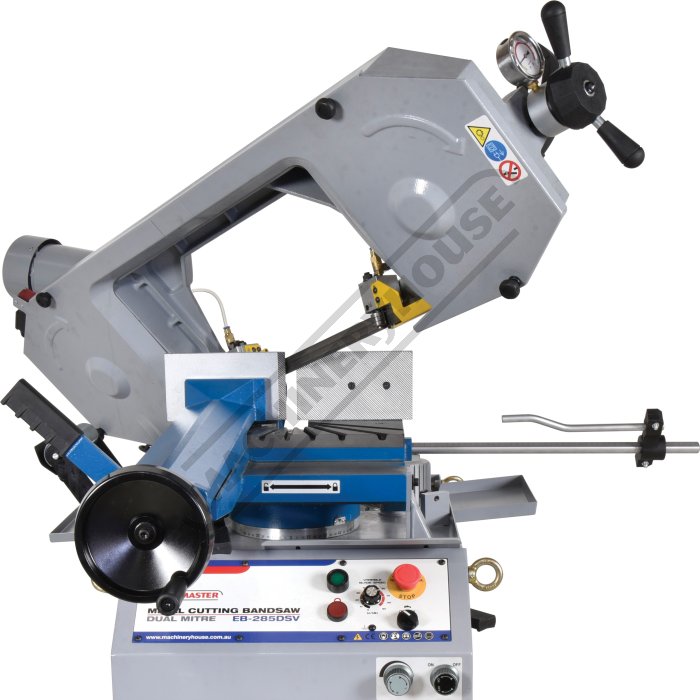

    Swivel Head
  • 9 of 13
    Quick Action Vice Handle Lever
  • 10 of 13
    Rear View
  • 11 of 13

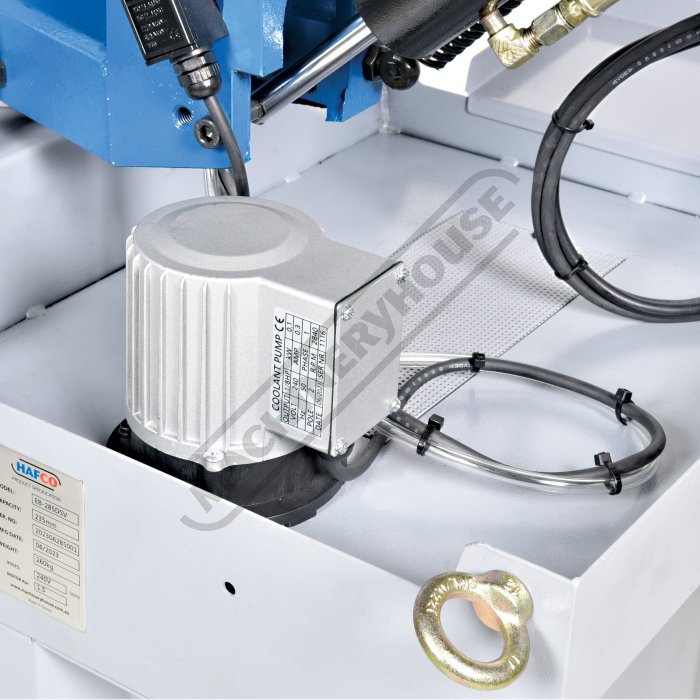

    Coolant System
  • 12 of 13
    Blade Loose and Tight Handle
  • 13 of 13

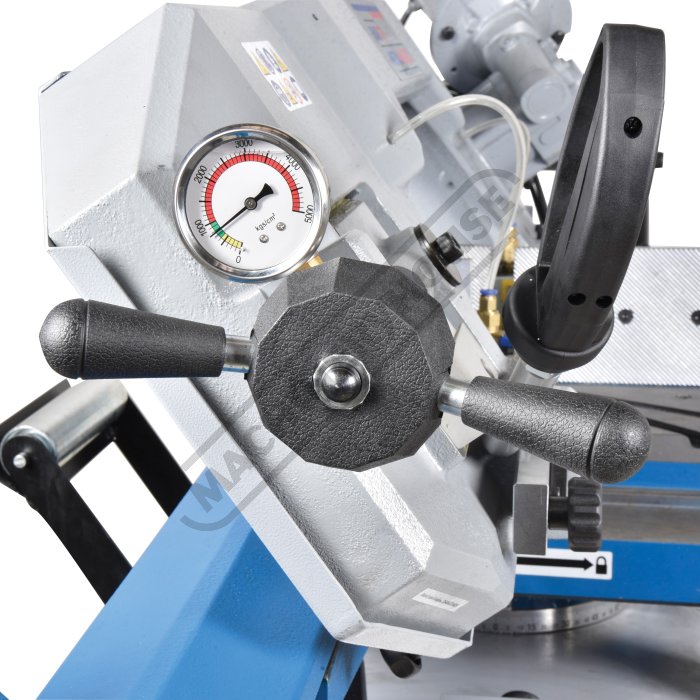

    Band Dynamometric Tension Indicator
Order Code: K8719
QLD Schools / TAFE - BS-7GRD Swivel Head Band Saw - Geared Drive (240V)
215 x 178mm (W x H) Rectangle
QLD Contract Item RDN3
QLD Contract No.
QLD Item No.8
School / TAFE BS-7GRD
Operation Type
Swivel Head
Round Capacity 90º (mm)
Round Capacity 45º (mm)
Square Capacity 90º (mm)
Square Capacity 45º (mm)
Rectangle Capacity 90º (mm)
215 x 178
Rectangle Capacity 45º (mm)
140 x 85
Blade Speed (m/min)
Blade Size (mm)
2362 x 19 x 0.8
Motor Power (kW / hp)
0.75 / 1
Voltage / Amperage (V / amp)
240 / 10
Nett Weight (kg)
The BS-7GRD medium duty swivel head metal cutting band saw has many features on offer with a double mitre swivel head capable of cutting up to 178mm diameter or 215 x 178mm in steel at 90º. There is a choice of three blade speeds via an adjustable 3 stage geared drive system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.
  • 215 x 178mm (W x H) rectangular capacity

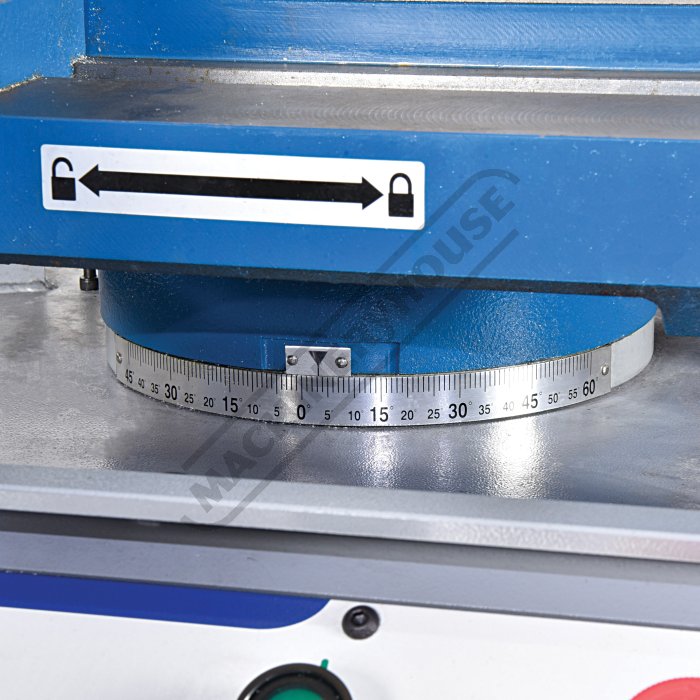

  • ±45º swivel head for easy angle cutting without moving material
  • Adjustable hydraulic feed cutting rate for multiple applications

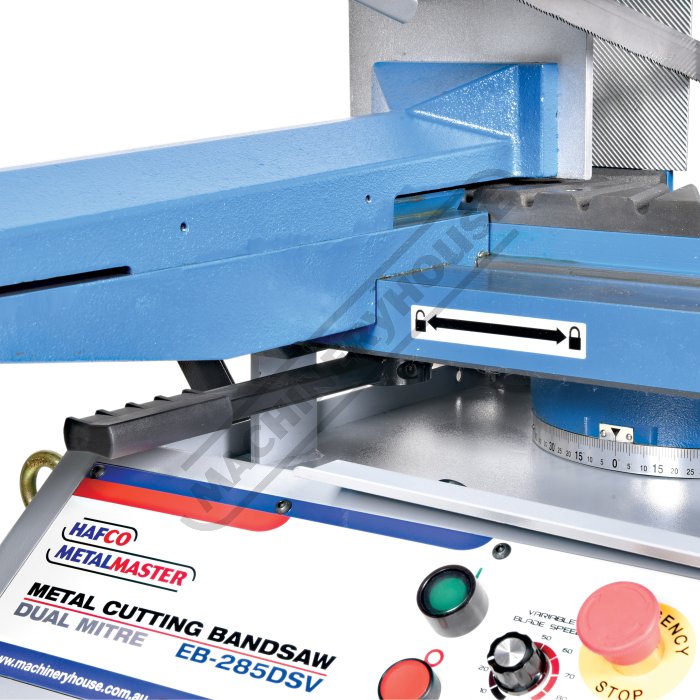

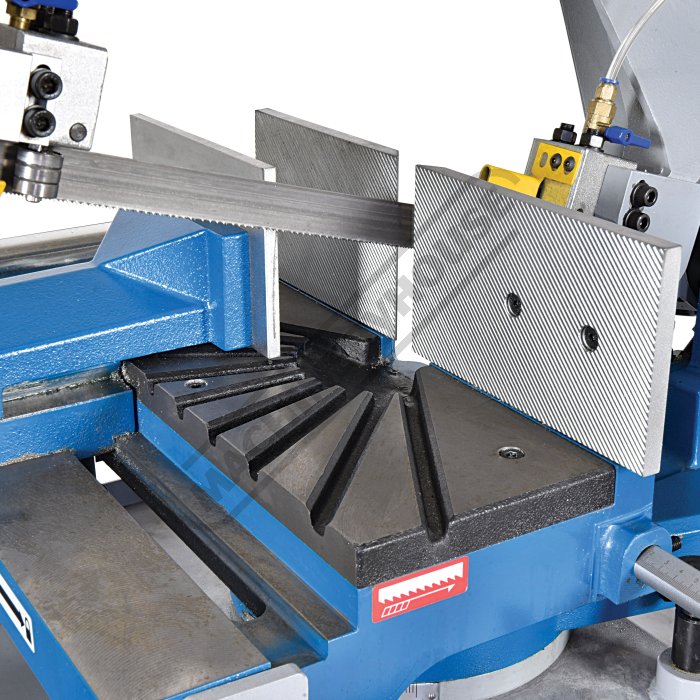

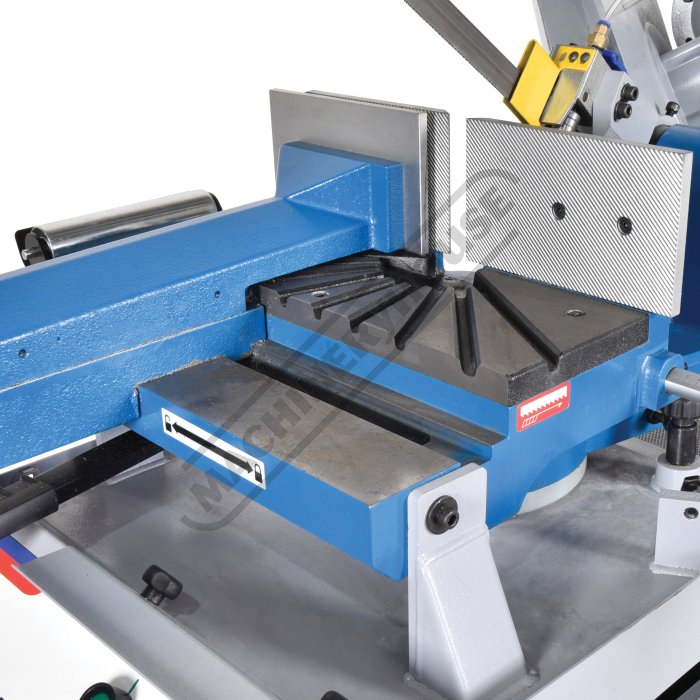

  • Dual mitre cutting capabilities to 45º via swivelling head and sliding vice
  • Built-in coolant system for maximum cutting efficiency
  • Limit switch stops machine when cut is complete
  • Coolant system with flow control valve
  • Quick action material clamping lever
  • Adjustable blade roller guides provides accurate cutting
  • 3-speed geared drive system enabling 34-50-65mpm cutting speeds

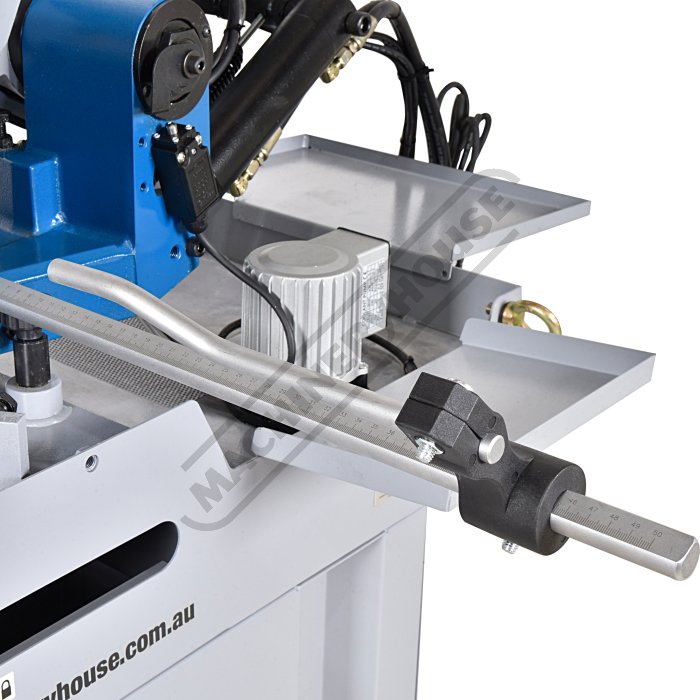

  • Adjustable length stop for repetition cutting

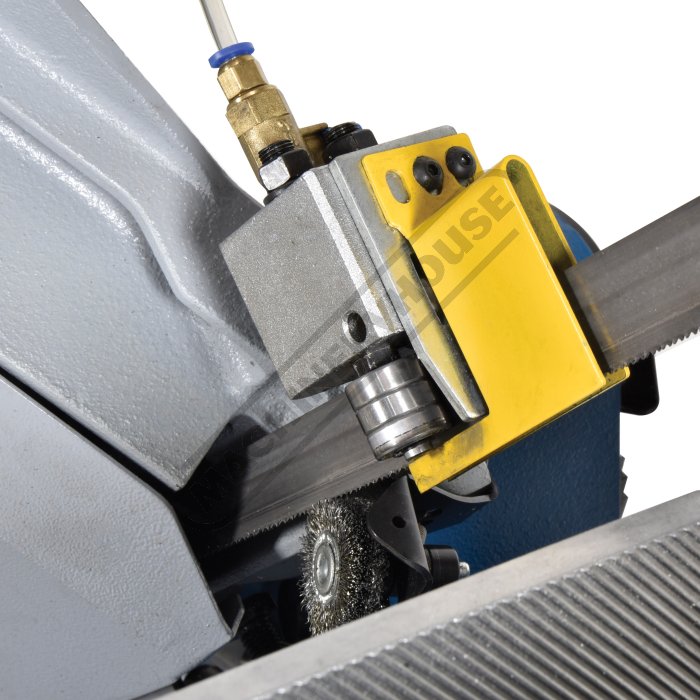

  • Wire wheel brush to clean swarf from blade
  • Automatic electric cut-out switch
  • Heavy-duty 750W/240V fully enclosed fan-cooled motor
Product Brochure
Blade Selection Chart
381.95 KB
Instruction Manual
5.13 MB
Trouble Shooting Guide
330.4 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
1.94 MB
