AL-1324 Centre Lathe - Includes Tooling Package
  • 1 of 22
    K8716
  • 2 of 22
    Safety Chuck Guard
  • 3 of 22
    Sliding drip tray for swarf removal
  • 4 of 22
    Footbrake
  • 5 of 22
    Leadscrew Covers
  • 6 of 22
    Leadscrew Covers
  • 7 of 22
    Headstock Controls
  • 8 of 22
    Feed Charts
  • 9 of 22
    Limit Switch
  • 10 of 22
    Thread Chasing Dial
  • 11 of 22
    Saddle Controls
  • 12 of 22
    Toolbox
  • 13 of 22
    Drive Plate
  • 14 of 22
    16mm Turning Tool Kit (L451)
  • 15 of 22
    Parting Tool Holder (L074)
  • 16 of 22
    HSS Parting Blade (L011B)
  • 17 of 22
    13mm Keyless Drill Chuck (C292)
  • 18 of 22
    3MT x JT6 Drill Chuck Arbor (D443)
  • 19 of 22
    3MT Live Centre (C052)
  • 20 of 22
    Knurling Tool Holder (Clamp Type) (L080)
  • 21 of 22
    6 x 500kg capacity Machine Mounts (M002)
  • 22 of 22
    Lathe Carrier 38mm (Bent Tail) (L081)
Order Code: K8716
QLD Schools / TAFE - AL-1324 Centre Lathe - Includes Tooling Package (415V)
330 x 600mm
QLD Contract Item No. 6.2
HAFCO METALMASTER
ORDER CODE
K8716
QLD Contract No.
QLD Item No. 6.2
MODEL
Schools/TAFE AL-1324

KIT
Digital Readout
Optional
Tool To Suit (mm)
16
Distance Between Centres (mm)
600
Swing Over Bed (mm)
330
Swing Over Cross-slide (mm)
200
Centre Height (mm)
165
Spindle Bore (mm)
Ø40
Camlock Spindle Size
D1-4
Bed Width (mm)
190
Head Stock Spindle Taper (MT)
5
Tail Stock Taper (MT)
3
Cross Slide Travel (mm)
175
Compound Slide Travel (mm)
100
Lead Screw
Metric
Cross Feed (mm/rev)
0.034 ~ 0.468m
Longitudinal Feed (mm/rev)
0.068 ~ 0.936
Metric Thread Range (No. / mm)
30 (0.4 - 7.0)
Imperial Thread Range (No. / TPI)
32 (4 - 56)
3 Jaw Chuck Diameter (mm)
Ø160
4 Jaw Chuck Diameter (mm)
Ø200
Spindle Steps/speeds (No. / RPM)
9 / 82-2000
Motor Power (kW / hp)
2.25 / 3
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
660

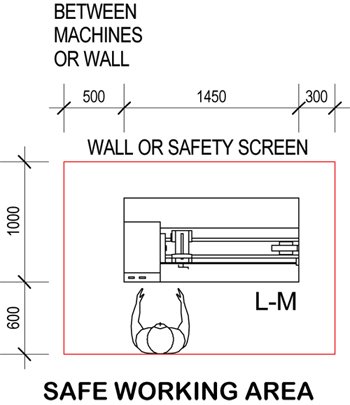

Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The AL-1324 is manufactured in Taiwan with all the safety features needed to comply with the education department. This machine has the following safety features such as leadscrew cover, chuck guard with micro switch, micro switch fitted to side access door and emergency foot brake making this machine superior in safety to protect the learning and developing students.
Features
  • Tool room quality precision lathe, Made in Taiwan and have been sold for over 20 years
  • Gear drive headstock for quick change of spindle speeds
  • Stand increasing rigidity and reducing vibration
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Foot operated spindle brake with safety cut out switch
  • Chuck guard fitted fitted with micro switch
  • Leadscrew cover ensures swarf not reaching clasp nut
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Overload clutch mechanism on auto power feed
  • Overload protection on drive motor and coolant system
  • 3HP/415V motor, 9-speed (82 - 2000rpm)
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
  • Dual calibrated feed dials
  • Coolant system with flexible hose
  • Slide out swarf tray
Includes
  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Faceplate
  • Fixed Steady
  • Travelling steady
  • Chuck guard
  • Leadscrew covers
  • Dead centre
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Rear splash guard
  • Drive Plate
  • Instruction booklet
  • 16mm Turning Tool Kit (L451)
  • Parting Tool Holder (L074)
  • HSS Parting Blade (L0007)
  • 13mm Keyless Drill Chuck (C292)
  • 3MT x JT6 Drill Chuck Arbor (D443)
  • 3MT Live Centre (C052)
  • Knurling Tool Holder (Clamp Type) (L080)

Product Brochure

Instruction Manual
5.66 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
