UNIMIGSchools / TAFE CG-30
Gas Cutting Kit - Straight Line
  • 1 of 1
Order Code: K8440
Schools / TAFE CG-30 - Gas Cutting Kit - Straight Line
NSW Contract Item No.48
NSW Contract No.
NSW Item No.48
Schools / TAFE CG-30
Cutting Capacity (mm)
5 - 50
Bevels (deg)
0 - 45º
Straight Cuts
1.8m & multiples
Circle Cutting Diameter (mm)
Ø30 - 2400
Cutting Speed (mm/min)
180 - 800
Torch Type
Acetylene / LPG
Dimensions (mm)
350 x 140 x 175
Nett Weight (kg)

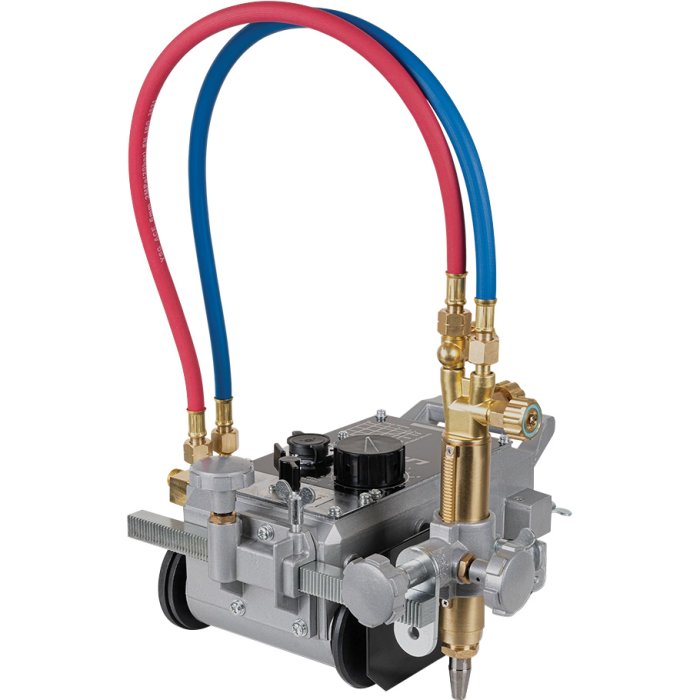

The CG-30 is an affordable portable Oxy fuel cutting machine. It is known around the world as one of the best portable cutting machines in the industry.
  • Performs high quality straight, circle and bevel cuts
  • Step-less Drive System - Maintains constant travel speed even with high temperatures ensuring stable, trouble-free cutting
  • Multiple Use Oxy Fuel Machine - Performs straight line & optional circle Oxy fuel cutting
  • Light Weight - 9.5kg, easy to carry & use yet rugged enough to be a true workhorse
  • Use on Radiagraph Track - Possible replacement for discontinued Radiagraph; user can use existing track
  • Extendible 1800mm Track Sections - Cut longer parts. 2 more pieces 1800mm tracks are recommended per set machine.
  • High Quality Tips - Superior design torch tips are included to ensure fast, smooth cuts
  • Includes 1 torch and 3 tips & 1800mm rail
  • Optional Snap Valve - One-touch on/off gas valve
