Order Code: K8430
Code: K8430

Please Call
240V / 15A
1 Year Warranty
Description

NSW Schools / TAFE - MIG-TIG-MMA COMPACT 200K Multi-Function Inverter Welder

30-200A
NSW Contract Item No.45A
Overview
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

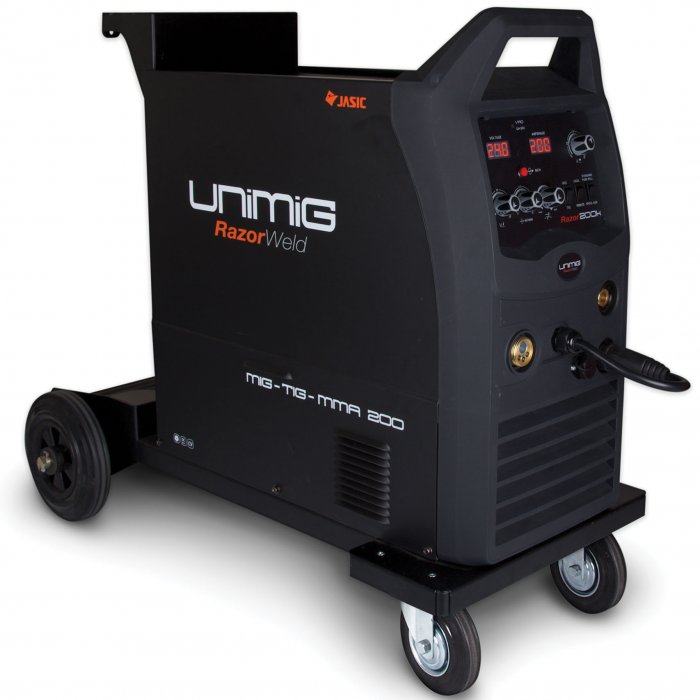

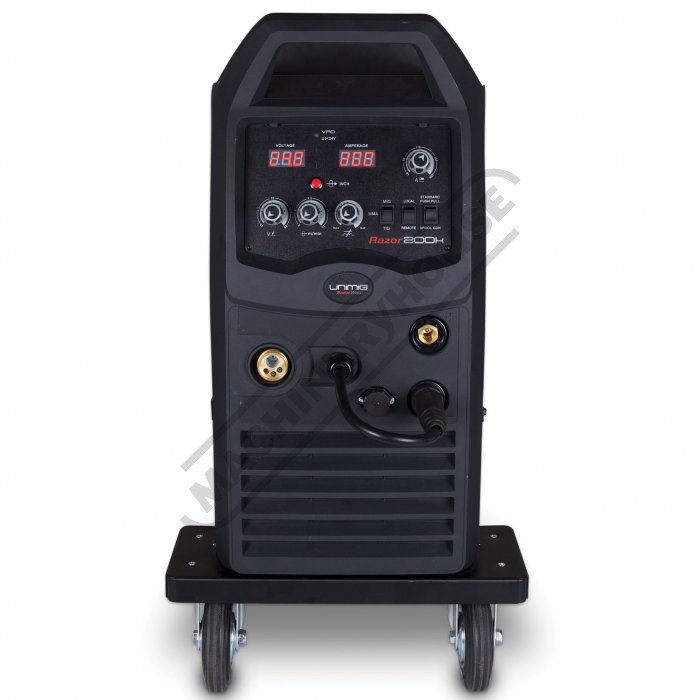

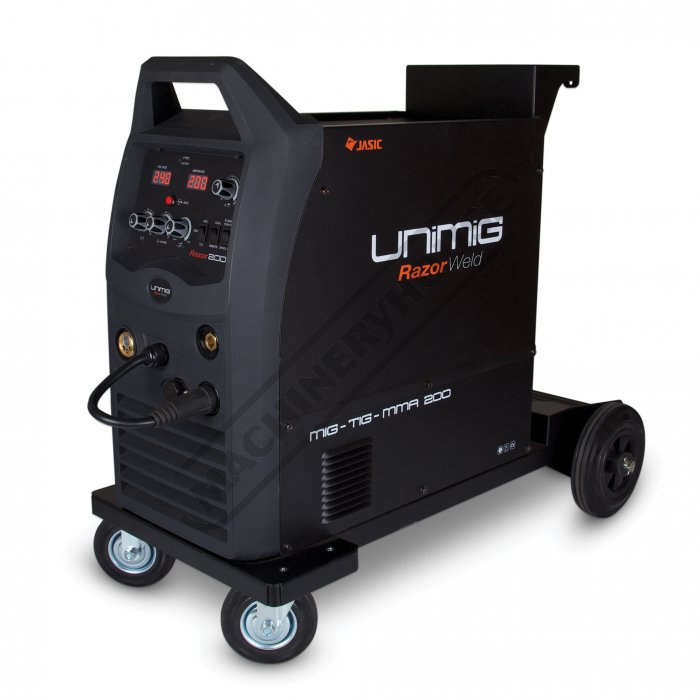

The Uni-Mig 200 is an inverter-based portable Mig welding machine with added MMA and TIG function. The MIG function allows you to weld with both Gas Shielded and Gasless wires.

Easy stepless adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent professional welding results. Wire inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire stick out ready for the next weld.

MMA welding capability delivers easy electrode welding with high quality results, including cast Iron, stainless steel and low hydrogen. Connection of the 26V TIG torch provides quality DC TIG (Lift Arc) welding of mild steel, stainless steel and copper.

Being 240v single phase gives great portability, providing more flexible use for site and home workshop locations. Ideal for general engineers, maintenance workshop, rural workshop, panel beaters and home workshops.

Designed and built to our specifications.

Certified to - AS/NZ60974.1
Features
  • Latest IGBT inverter technology
  • MIG/MAG with gasless wire function
  • MMA (Stick electrode) (DC+ / DC-) function
  • Digital Volt/Amp Meter Display
  • Spool Gun Ready
  • High strength metal case construction
  • Internal geared wire drive for 5Kg & 15kg spools
  • Euro style MIG torch connection
  • IP21S rating for environmental / safety protection
  • Step-less voltage and wire feed control
  • Lift Arc DC TIG welding
  • Excellent arc stability for MIG/MMA/TIG welding
  • Light weight and portable
  • Wire inch and Burn Back functions

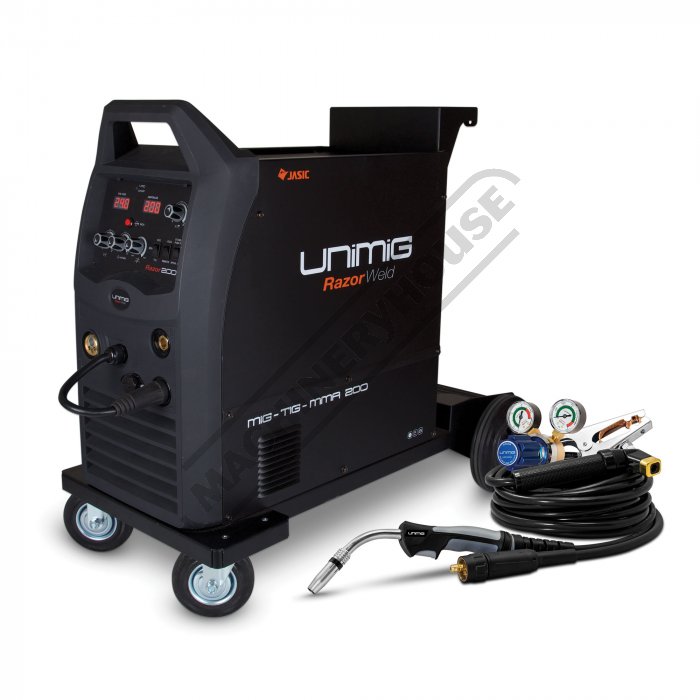

Includes
  • SB24 4M Uni-Mig MIG torch with Euro connector
  • Argon Regulator, 4M Earth Lead, 4M Arc Lead, Gas Hose with Fittings
  • UMRWXWH Auto Welding Helmet RWX6000 4 Sensor
  • UMWG1L Professional Leather Welding Gloves

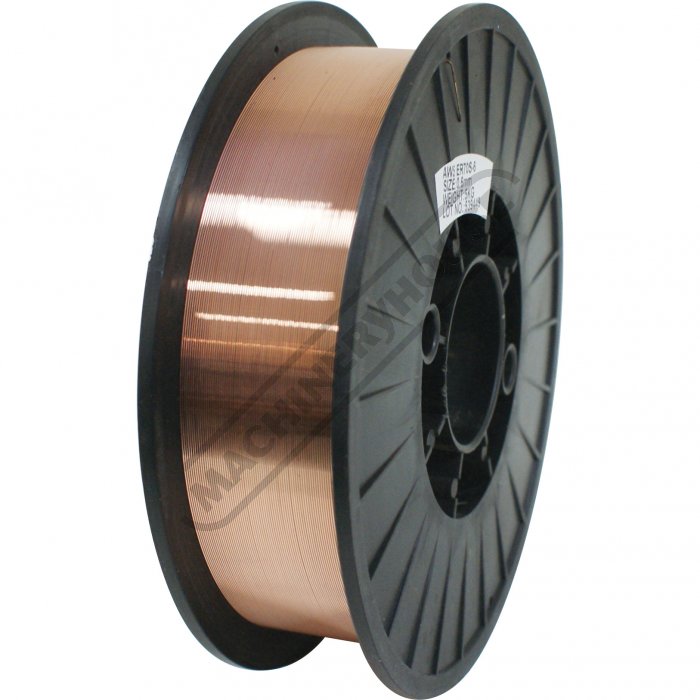

  • MS.8B 0.8mm ER70S-6 MIG Wire 5Kgs
  • UMMP Mig Pliers / Wire Cutters

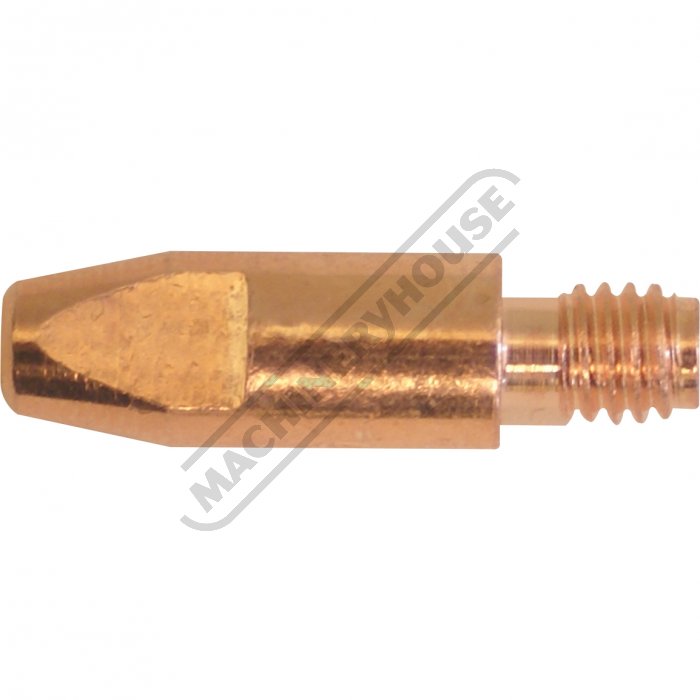

  • PCT0009-08 Starter Kit
Optional Accessories
  • 17VCP50 Tig torch (W170)
  • Spool gun (W181A / W181B)
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • NSW Contract No.
  • QLD Contract No.
  • MODEL

  • (V)Voltage
  • (amp)Welding Current
  • (amp)Duty Cycle
  • (kg)Wire Spool Size
  • (mm)Ferrous Wire Size
  • (mm)Stainless Steel Wire Size
  • (mm)Aluminium Wire Size
  • (mm)Dimensions
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • K8439
  • Compare
  • Wishlist
  • K8439
  • NSW Item No.46B Alternate
  • ~
  • NSW School / TAFE
    RAZORWELD 205SS MTS
  • 240
  • 10-200
  • 20% @ 200 Amps
  • 1 & 5
  • 0.6 - 0.9
  • 0.6 - 0.9
  • 0.9 - 1.2
  • 470 x 190 x 380
  • 12.5
  • Please Call
  • Please Call
  • ADD TO CART
  • K8430
  • Compare
  • Wishlist
  • K8430
  • NSW Item No.45A
  • ~
  • NSW School / TAFE
    MIG-MMA-TIG 200K
  • 240
  • 10-200
  • 35% @ 200 Amps
  • 5 & 15
  • 0.6 - 0.9
  • 0.8 - 0.9
  • 0.9 - 1.0
  • 900 x 400 x 670
  • 57
  • Please Call
  • Please Call
  • ADD TO CART
  • K8429
  • Compare
  • Wishlist
  • K8429
  • NSW Item No.45B
  • ~
  • NSW School / TAFE
    MIG-MMA-TIG 350 SWF
  • 415
  • 50 - 350
  • 40% @ 350 Amps
  • 15
  • 0.6 - 1.2
  • 0.8 - 1.2
  • 0.9 - 1.2
  • 1275 x 880 x 475
  • 72
  • Please Call
  • Please Call
  • ADD TO CART
  • K8438
  • Compare
  • Wishlist
  • K8438
  • NSW Item No.46B
  • ~
  • NSW School / TAFE
    MIG-MMA-ARC 400
  • 415
  • TIG-15~400, MMA-15~320
  • TIG-40%@400,MMA-40%@320
  • ~
  • ~
  • ~
  • ~
  • 530 x 270 x 430
  • 25
  • Please Call
  • Please Call
  • ADD TO CART
  • K8771
  • Compare
  • Wishlist
  • K8771
  • ~
  • QLD Item No. 16.1
  • School / TAFE
    MIG-TIG-MMA 250 MTS
  • 240
  • 30 - 250
  • 35% @ 250 Amps
  • 15
  • 0.6 - 0.9
  • 0.8 - 0.9
  • 0.9 - 1.0
  • 628 x 287 x 453
  • 30
  • Please Call
  • Please Call
  • ADD TO CART
