MC-315CE - 44rpm Cold Saw
  • 1 of 19
  • 2 of 19
    Front View Swivel Head
  • 3 of 19
    Right View
  • 4 of 19
    Side View
  • 5 of 19
    Self Centering Vice
  • 6 of 19
    Self Centering Vice Side View
  • 7 of 19
    Adjustable Vice Jaws
  • 8 of 19
    Safety Trigger Switch
  • 9 of 19
    Blade Guard
  • 10 of 19
    Swivel Head Release Lever
  • 11 of 19
    Positive Stops 45 and 90 Degrees
  • 12 of 19
    Coolant Pump and Tank
  • 13 of 19
    Blade Speeds
  • 14 of 19
    Adjustable Length Stop
  • 15 of 19
    Material Support Arm
  • 16 of 19
    Coolant Flow Valve
  • 17 of 19

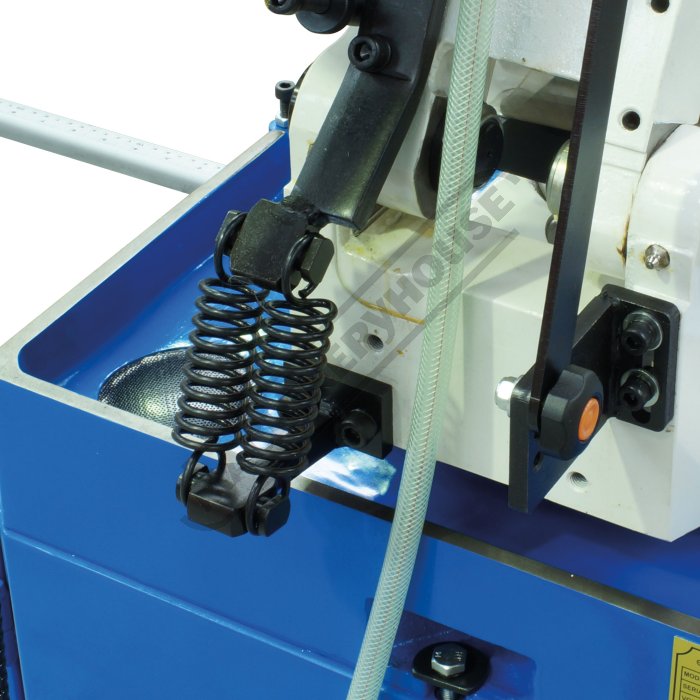

    Head Return Springs
  • 18 of 19
    Main Power Switch
  • 19 of 19
Order Code: K8271
NSW Schools / TAFE - MC-315CE - 44rpm Cold Saw (240V)
100 x 85mm
NSW Contract Item No.42A
NSW Contract No.
NSW Item No.42A
Schools / TAFE
MC-315CE - 44rpm
Cutting Head Action (auto-manual)
Operation Type
Swivel - Dual Mitre
Round Capacity 90º / 45º (mm)
100 / 100
Square Capacity 90º / 45º (mm)
90 / 85
Rectangle Capacity 90º / 45º (mm)
100 x 85 / 85 x 85
Blade Size (Diameter x Bore) (mm)
315 x 32
Vice Clamping Fixture
Manual - Dual
Coolant System
Table Working Height (with Stand) (mm)
Blade Speeds (1 Speed) (RPM)
Motor Power (kW / hp)
2.2 / 3
Voltage (V / amp)
240 / 15
Nett Weight (kg)
MC-315CE Metal Cutting Saw. We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The MC-315CE series is a very robust cold saw that relies on a heavy cast frame coupled with a industrial heavy duty gearbox and motor for years of production. The MC-315CE is simply the best quality circular cold saw designed for the engineering and fabrication work shops, representing excellent value for money invested.
The MC-315CE comes standard with the movable CE APPROVED safety guard and complete liquid cooling system, ensuring safety and long cold saw blade life. This machine can mitre 45° left & 45° right, as well as 90° to the right enabling jobs to be cut parallel to the vice jaws. This unique machine also incorporates manual flip over dead stop that locate the head at 45° and 90°.

This cold saws comes with a scaled mechanical stop for repeatable cuts, tools for saw blade changes and instruction manual.

The MC-315CE comes standard with a self centring vice, so there are no changes to make when changing diameters of tube or pipe. The vice also has a floating clamp that independently (left to right of saw blade) holds the jaws. This securely holds both sides of the cut material without dropping them into the rotating blade, which extends blade life.

These are the perfect cold saws for thin, medium, or thick walled pipe, tubing, extrusions, or solid bar stock.
The cabinet has storage for the mechanical stop and extra saw blades etc.

Burr Free & Less Dust
Self Centring vice with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment

Fast, Precision & Clean
Compared to Band Sawing, Circular Sawing is much more economical, faster in cutting, more precise, and produces a cleaner cut

Mitre Cutting
The Saw Head can be swivelled either direction at various degrees for mitre cutting (Circular Saw),
providing excellent precision in angle accuracy

Cooling System
Equipped with electrical cooling pump and a large coolant tank to ensure excellent working
temperature on the Saw Blade and the Work Piece, as well as a smooth cutting surface and longer
blade life

Safety Switch
Dead man trigger switch operation provides a safer working machine as one hand needs to be on the handle to start the machine, if hand is removed from the switch the machine will stop.

In feed roller support and 500mm length stops
Quick release lever for mitring the head
All models include a stand with a storage area

Made in Taiwan
  • Stand
  • Coolant System
  • Length Stop
  • Material Support
  • Blade

Product Brochure
Blade Selection Chart
377.09 KB
Instruction Manual
3.06 MB
