HAFCOALP-2
Automotive Lifting Workshop Package Deal
  • 1 of 64
    K097
  • 2 of 64
    Details
  • 3 of 64
    Engine Crane
  • 4 of 64
    Shown Folded Up
  • 5 of 64
    Shown Fully Up and Extended
  • 6 of 64
    Shown Fully Up
  • 7 of 64
    Shown With Ram Fully Down
  • 8 of 64
    Rear View
  • 9 of 64
    Pheumatic Hydraulic Single Action Ram
  • 10 of 64
    Single Action Manual Pump
  • 11 of 64
    Single Action Pump With Release Valve
  • 12 of 64
    Pheumatic Hydraulic Pump
  • 13 of 64
    Pheumatic Connection
  • 14 of 64
    Operating Instructions
  • 15 of 64
    Engine Stand
  • 16 of 64
    Fold Up Legs
  • 17 of 64
    Fold Up Legs Side View
  • 18 of 64
    Front View
  • 19 of 64
    Left View
  • 20 of 64
    Rear Left View
  • 21 of 64
    Rear View
  • 22 of 64
    Rear Right View
  • 23 of 64

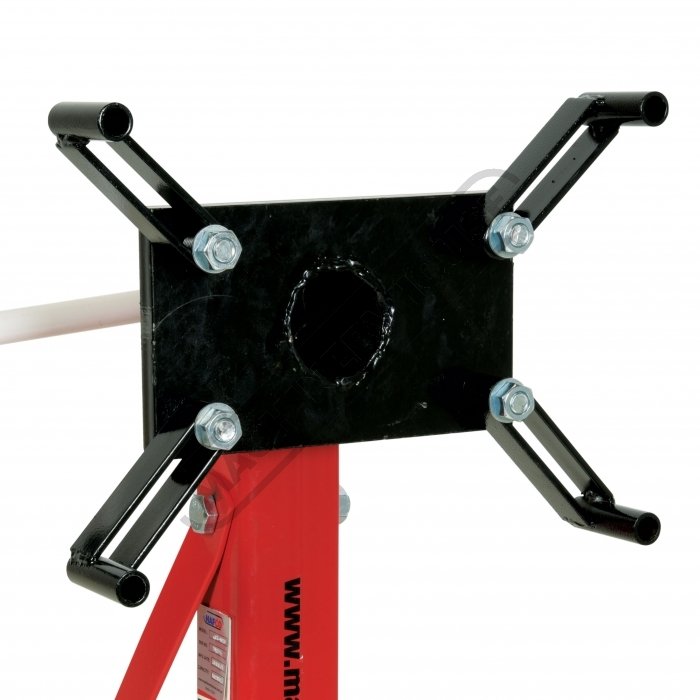

    Four Adjustable Arms
  • 24 of 64
    Handle and Index Lock Pin
  • 25 of 64
    Index Lock Pin Released For Rotation
  • 26 of 64

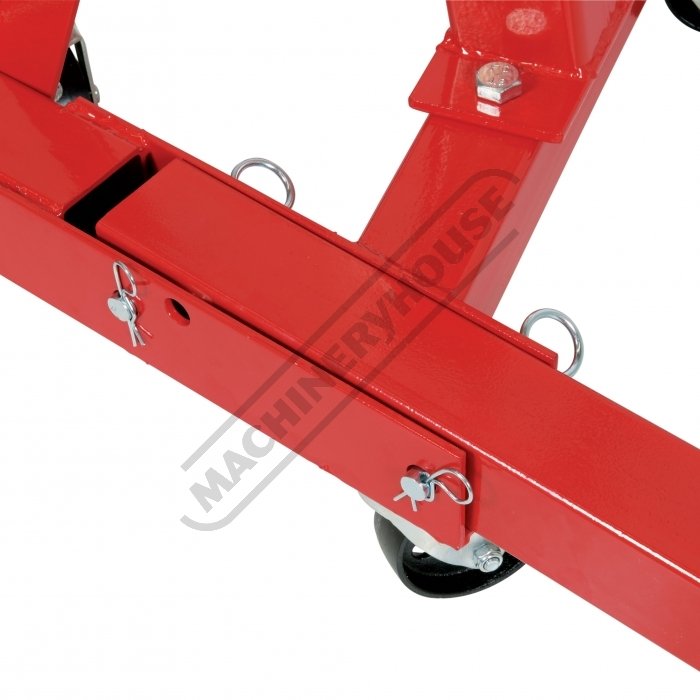

    Leg Locking Pins
  • 27 of 64
    Leg Locking Pins Full View
  • 28 of 64
    Five Swivel Castor Wheels
  • 29 of 64
    Index Lock Pin In Position 1
  • 30 of 64
    Index Lock Pin In Position 2
  • 31 of 64
    Index Lock Pin In Position 3
  • 32 of 64
    Index Lock Pin In Position 4
  • 33 of 64
    Index Lock Pin In Position 5
  • 34 of 64
    Shown with Ford 351 Engine Front View
  • 35 of 64
    Shown with Ford 351 Engine Mounted
  • 36 of 64
    Shown with Ford 351 Engine Rear View
  • 37 of 64
    Mounting Position Shown with Ford 351 Engine
  • 38 of 64
    Garage Jack
  • 39 of 64
    Lowest Height
  • 40 of 64
    Maximum Height
  • 41 of 64
    Full View
  • 42 of 64
    Side View
  • 43 of 64
    Rear View
  • 44 of 64

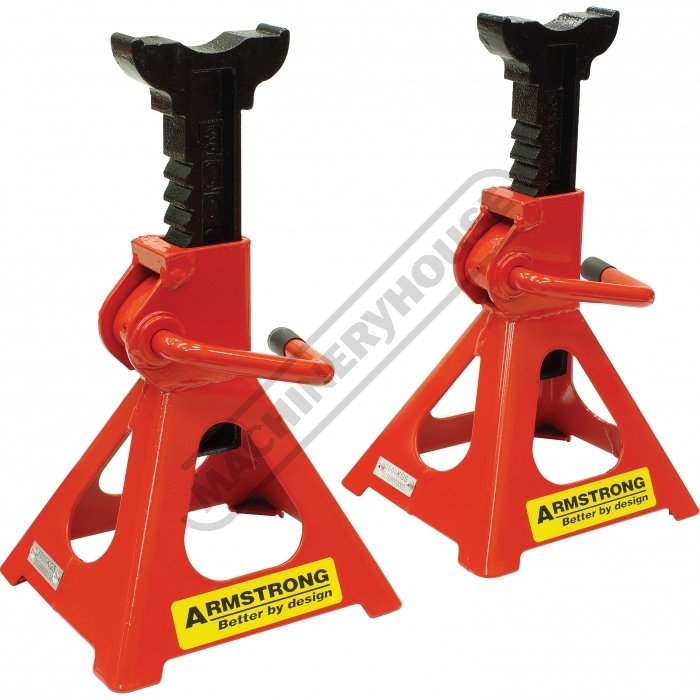

    Axle Stands
  • 45 of 64
    Front and Rear Views
  • 46 of 64
    Shown At Lowest and Heighest Ratchet Position
  • 47 of 64
    Mechanics Creeper
  • 48 of 64
    Creeper
  • 49 of 64
    Left View
  • 50 of 64
    Seat Front View
  • 51 of 64

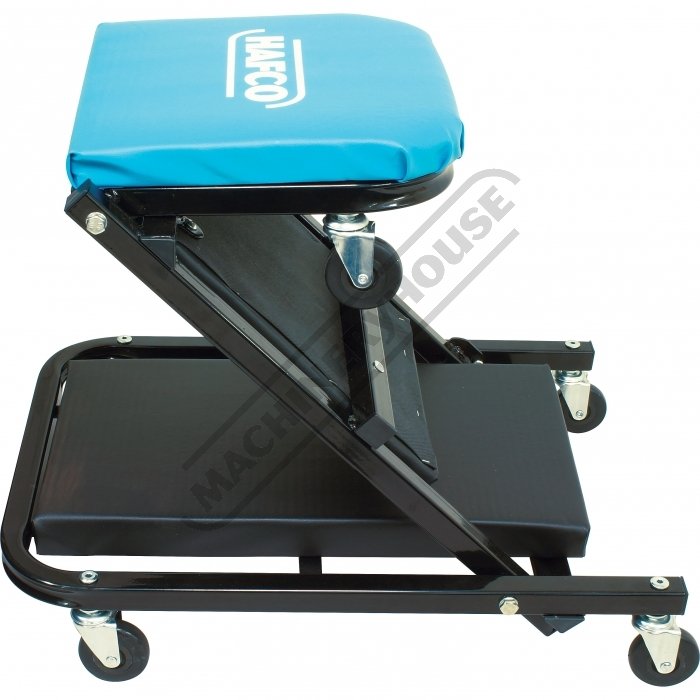

    Seat Side View
  • 52 of 64
    Release Pin for Changing to Seat
  • 53 of 64
    Seat Rear View
  • 54 of 64
    6 x Swivel Wheels
  • 55 of 64

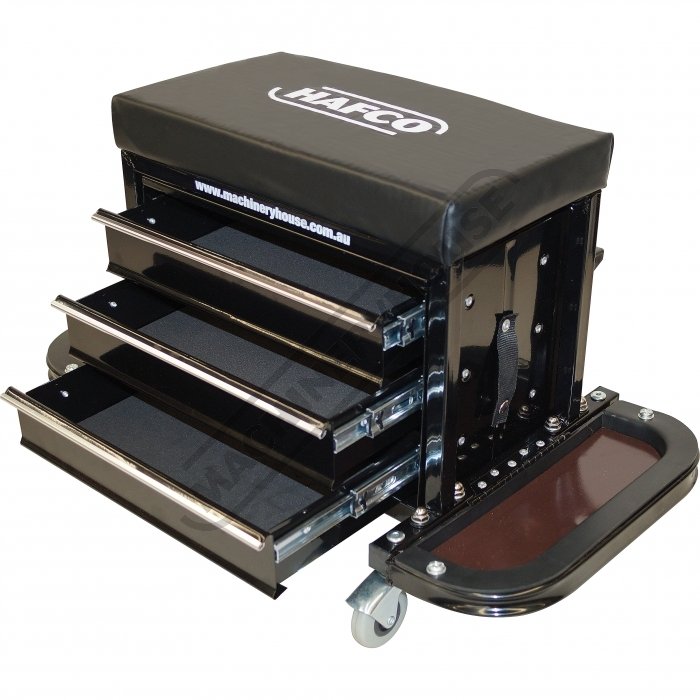

    Mobile Cabinet Seat
  • 56 of 64
    Shown Closed Up
  • 57 of 64
    Shown with Sides Down
  • 58 of 64
    Side View
  • 59 of 64
    Rear View
  • 60 of 64

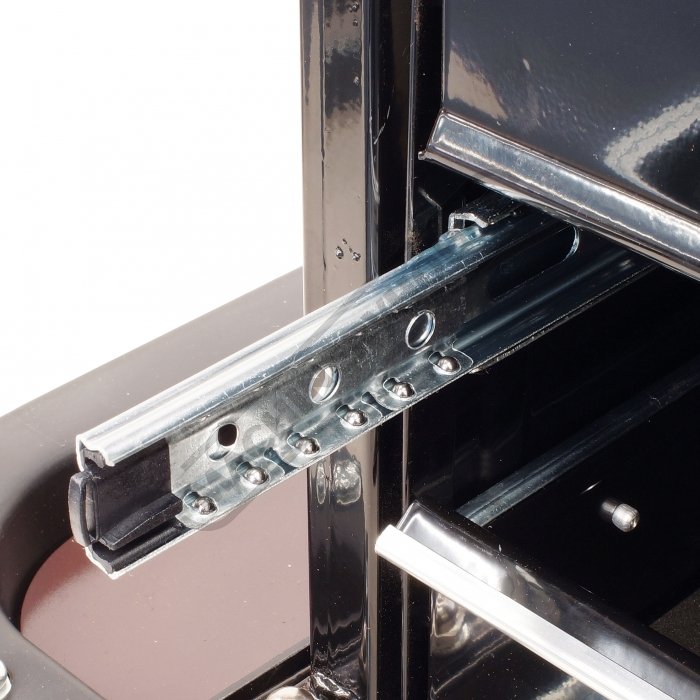

    Ball Bearing Slides
  • 61 of 64
    Magnetic Base Parts Tray
  • 62 of 64
    4 x Swivel Wheels
  • 63 of 64

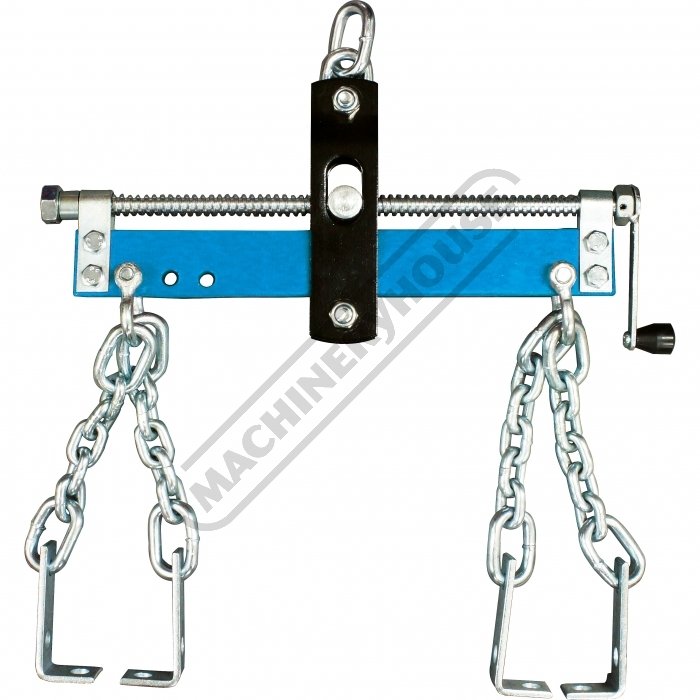

    Engine Tilter
  • 64 of 64
    Side View
Order Code: K097
ALP-2 - Automotive Lifting Workshop Package Deal
Includes Engine Crane, Engine Stand, Trolley Jack, Axle Stands, Creeper Trolley, Mobile Cabinet Seat & Engine Tilter
HAFCO
On Special
ex GST
inc GST
$987.00
$1,085.70
$890.00
$979.00

Package Contains:
ex GST
inc GST
ORDER CODE
K097
MODEL
ALP-2
Type
Workshop Package
Engine Crane Capacity (Tonne)
1
Engine Crane Operation (Type)
Pneumatic & Hydraulic
Engine Stand Capacity (kg)
907
Trolley Jack Capacity (Tonne)
2
Axle Stand Capacity - Each (Tonne)
3
Mechanics Creeper Capacity (kg)
150
Nett Weight (kg)
225
Features
  • A351 - HPC-1T - Pneumatic & Hydraulic Engine Crane:
  • This pneumatic & hydraulic operation engine crane has a 8 tonne long stroke lifting ram and single acting pump with a maximum load capacity of 1000kg. It quickly folds up designed to save space in the workshop. Very simple to use pneumatic over hydraulic or just manual hydraulic operation via a single acting pump equipped with automatic safety valve to control the lowering speed. The jib extends to the desired lifting capacity of 250kg, 500kg, 750kg or 1000kg secured by a single locking pin. Mounted on 6 swivel castor wheels & T-bar handle for excellent manoeuvrability around the workshop. The lifting range is 0-2300mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.Ideal for automotive, light engineering and general workshop
  • Ideal for automotive, light engineering and general workshop
  • Adjustable boom in four positions for lifting
  • Outrigger legs easily folded up for transport or storage
  • Six cast steel swivel castor wheels allow easy mobility
  • Pneumatic & hydraulic operation
  • Single action - piston 8 tonne long stroke hydraulic lifting ram
  • T-bar handle with grips on rear of hoist allows greater manoeuvrability control
  • Supplied with a short lifting chain & hook with safety latch
  • Tested to 2 Tonne

  • A340 - ESS-450 - Engine Stand:
  • Sturdy design prevents these engine stands from tipping while holding the block. Rear swivel castors allow you to move and position engine exactly where you need it. Four adjustable arms and 360º rotation for easy mounting
  • Heavy duty steel frame construction
  • 907kg capacity
  • Five swivel castor wheels
  • Fold-up legs for storing
  • 815mm mounting centre height

  • J020 - ARMM800 - Professional Hydraulic Trolley Jack - Steel:
  • Professional Premium Quality Trolley Jack Suitable for professional user where performance and safety is paramount
  • Tested to Australian standards capacity from 2000kg
  • Hydraulic stroke limitation system prevents ram from exceeding its stroke
  • High quality machined cylinders for leak free performance leading to extended service life
  • Ram and cylinder are polished to protect against internal abrasions
  • Fitted with high quality durable seals for extended service life
  • 125mm diameter lifting point
  • 620mm overall length
  • 340mm rear width
  • 270mm front width
  • 177mm chassis height

  • A3435 - ARMAS3000R - Professional Vehicle Axle Stands:
  • Stands are individually rated i.e. capacity rating refers to per stand not per pair
  • Capacity 3000kg per stand
  • Heavy duty, high quality ratchet type axle stands
  • Tested to Australian standards
  • A high quality axle stand that provides a safe & efficient means of supporting vehicles
  • Sturdy welded construction for added safety & strength
  • One piece ratchet bar provides superior strength & durability
  • Easy to use quick adjustment mechanism that securely locks stands into position
  • Supplied and priced as a set of 2 stands

  • A006 - MCW-47C - 2 in 1 Mechanics Creeper & Seat Combination
  • This combination Mechanic's Creeper is unique in the way that it can be folded up into a comfortable roller seat as well, also another advantage is that it will take up less room in your garage due to it being a 2 in 1 deal
  • Only 130mm off the ground allowing access under vehicles and equipment without excessive jacking
  • Quick & easy conversion from creeper to seat
  • Heavy duty, 150kg weight capacity
  • 40mm thick comfortable head rest
  • 305 x 300mm padded seat
  • 475mm seat height
  • Fabricated long sturdy steel frame
  • Creeper 1200 x 450 x 130mm (LxWxH)
  • Seat 600 x 450 x 475mm (LxWxH)
  • 6 swivel wheels for maximum stability when in creeper setup
  • 4 swivel wheels for maximum stability when in seat setup
  • 130mm creeper height

  • A001 - TCS-3 - Mobile Tool Cabinet Seat
  • This unique tool cabinet seat has many features right at your finger tips all whilst sitting down, like the 3 x storage drawers , fold away magnetic side trays, 4 swivel wheels making it very easy to manoeuvre & a rear tool storage support for those screwdrivers & odd tools
  • Large rectangle padded cushion seat for comfort 55mm thick
  • 325 x 195 x 60mm storage drawers on ball bearing slides
  • 2 x magnetic side work trays 25mm deep that can fold away
  • 16 holes rear tool storage support
  • 4 swivel wheels allows 360º rotation
  • 406mm seat height

  • A3425 - AET-900 - Engine Tilter - Heavy Duty
  • 907kg load capacity
  • Adjustable tilting lift point
  • 4 x lifting chains for better load stability
