HAFCOALP-1
Automotive Lifting Garage Package Deal
  • 1 of 56
    K096
  • 2 of 56
    Details
  • 3 of 56
    Engine Crane
  • 4 of 56
    Beam Fully Up and Extended
  • 5 of 56
    Shown Folded Up
  • 6 of 56
    Shown With Beam down
  • 7 of 56
    Beam Fully up
  • 8 of 56
    Ram
  • 9 of 56
    Front View
  • 10 of 56
    Rear View
  • 11 of 56
    Boom Adjustable Settings
  • 12 of 56
    Hand Operated Pump
  • 13 of 56
    Double Action Pump
  • 14 of 56
    Fold Up Legs Release Pins
  • 15 of 56
    Swivel Wheels
  • 16 of 56
    Push Handle
  • 17 of 56
    Ram Release Valve
  • 18 of 56
    Lifting Chain
  • 19 of 56
    Fold Up Legs with Pins
  • 20 of 56
    Slide Out Beam
  • 21 of 56
    Operating Instructions
  • 22 of 56
    Engine Stand
  • 23 of 56
    Front View
  • 24 of 56
    Right View
  • 25 of 56
    Side View
  • 26 of 56
    Rear Left View
  • 27 of 56
    Rear View
  • 28 of 56
    Rear Right View
  • 29 of 56
    Four Adjustbable Arms for Easy Mounting
  • 30 of 56

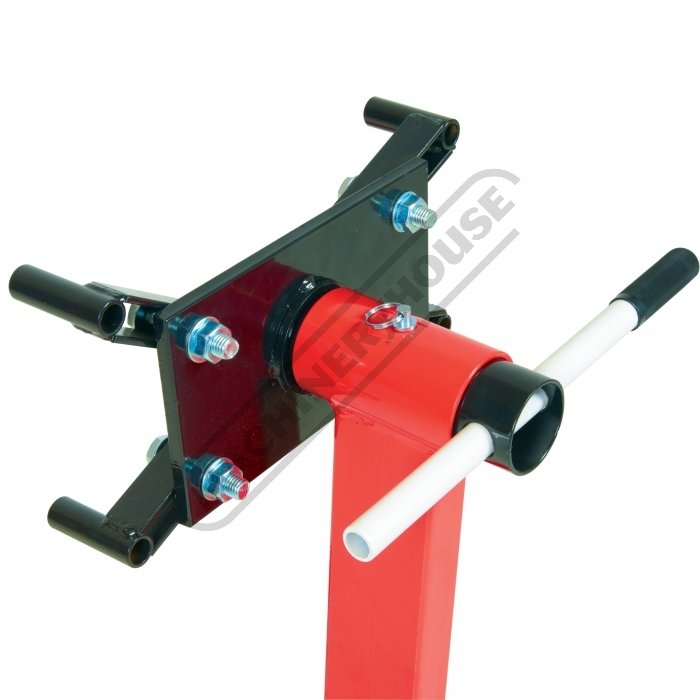

    Handle and Lock Pin For Rotation
  • 31 of 56
    Index Lock Pin Released For Rotating
  • 32 of 56
    Index Lock Pin in Position 1
  • 33 of 56
    Index Lock Pin in Position 2
  • 34 of 56
    Index Lock Pin in Position 3
  • 35 of 56
    Index Lock Pin in Position 4
  • 36 of 56
    2 x Swivel Castor Wheels
  • 37 of 56
    2 x Fixed Castor Wheels
  • 38 of 56
    Shown Holding a Light Weight V8 Engine
  • 39 of 56
    Shown Holding a Small Engine
  • 40 of 56
    Garage Jack
  • 41 of 56
    Lowest Height
  • 42 of 56
    Maximum Height
  • 43 of 56
    Full View
  • 44 of 56
    Side View
  • 45 of 56
    Rear View
  • 46 of 56
    Axle Stands
  • 47 of 56
    Front and Rear Views
  • 48 of 56
    Shown At Lowest and Heighest Ratchet Position
  • 49 of 56
    Creeper Trolley
  • 50 of 56

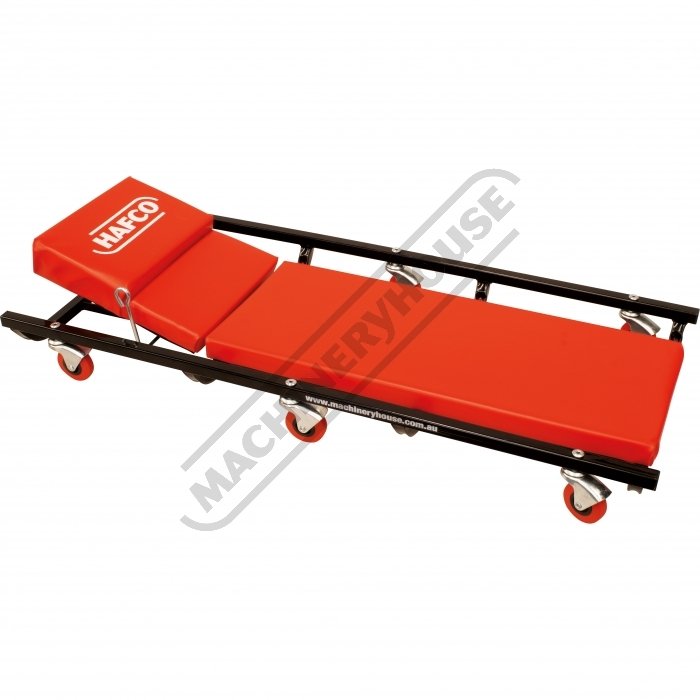

    Head Rest 2nd Position
  • 51 of 56
    Head Rest Flat
  • 52 of 56
    Head Rest 3rd Position
  • 53 of 56
    Head Rest Full Height
  • 54 of 56
    Rear View 1502947109
  • 55 of 56
    Head Support Handle
  • 56 of 56
    6 x Swivel Wheels
Order Code: K096
ALP-1 - Automotive Lifting Garage Package Deal
Includes Engine Crane, Engine Stand, Trolley Jack, Axle Stands & Creeper Trolley
HAFCO
On Special
ex GST
inc GST
$690.00
$759.00
$620.00
$682.00

Package Contains:
ex GST
inc GST
ORDER CODE
K096
MODEL
ALP-1
Type
Garage Package
Engine Crane Capacity (Tonne)
1
Engine Crane Operation (Type)
Hydraulic
Engine Stand Capacity (kg)
450
Trolley Jack Capacity (Tonne)
2
Axle Stand Capacity - Each (Tonne)
3
Mechanics Creeper Capacity (kg)
136
Nett Weight (kg)
200
Features
  • A350 - HC-1T - Hydraulic Engine Crane:
  • This engine crane has a 8 tonne long stroke lifting ram and single acting pump with a maximum load capacity of 1000kg. It quickly folds up designed to save space in the workshop. Very simple to use manual hydraulic operation via a single acting pump equipped with automatic safety valve to control the lowering speed. The jib extends to the desired lifting capacity of 250kg, 500kg, 750kg or 1000kg secured by a single locking pin. Mounted on 6 swivel castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2300mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
  • Ideal for automotive, light engineering and general workshop
  • Adjustable boom in four positions for lifting
  • Outrigger legs easily folded up for transport or storage
  • Six cast steel swivel castor wheels allow easy mobility
  • Single action piston on hydraulic 8 tonne lifting ram
  • T-bar handle with grips on rear of hoist allows greater manoeuvrability control
  • Supplied with a short lifting chain & hook with safety latch
  • Tested to 2 Tonne

  • A341 - ESS-450 - Engine Stand:
  • Sturdy design prevents these engine stands from tipping while holding the block. Two swivel castors allow you to move and position engine exactly where you need it. Four adjustable arms and 360º rotation for easy mount
  • Steel frame construction
  • Four castor wheels, with the front two swivelling
  • 450kg capacity
  • Engine mounting indexing position lock
  • 790mm mounting centre height

  • J020 - ARMM800 - Professional Hydraulic Trolley Jack - Steel:
  • Professional Premium Quality Trolley Jack Suitable for professional user where performance and safety is paramount
  • Tested to Australian standards capacity from 2000kg
  • Hydraulic stroke limitation system prevents ram from exceeding its stroke
  • High quality machined cylinders for leak free performance leading to extended service life
  • Ram and cylinder are polished to protect against internal abrasions
  • Fitted with high quality durable seals for extended service life
  • 125mm diameter lifting point
  • 620mm overall length
  • 340mm rear width
  • 270mm front width
  • 177mm chassis height

  • A3435 - ARMAS3000R - Professional Vehicle Axle Stands:
  • Stands are individually rated i.e. capacity rating refers to per stand not per pair
  • Capacity 3000kg per stand
  • Heavy duty, high quality ratchet type axle stands
  • Tested to Australian standards
  • A high quality axle stand that provides a safe & efficient means of supporting vehicles
  • Sturdy welded construction for added safety & strength
  • One piece ratchet bar provides superior strength & durability
  • Easy to use quick adjustment mechanism that securely locks stands into position
  • Supplied and priced as a set of 2 stands

  • A005 - MCW-40H - Mechanics Creeper - Tilting Head Rest
  • This Mechanic's Creeper has a 3 position adjustable head rest making it even more comfortable for you head & neck on those awkward jobs.
  • 3 position adjustable head rest
  • 70mm thick comfortable head rest
  • 6 swivel wheels for maximum stability
  • Fabricated steel frame
  • 136kg weight capacity
  • 1020 x 440mm sturdy steel frame (L x W)
  • 110mm height
