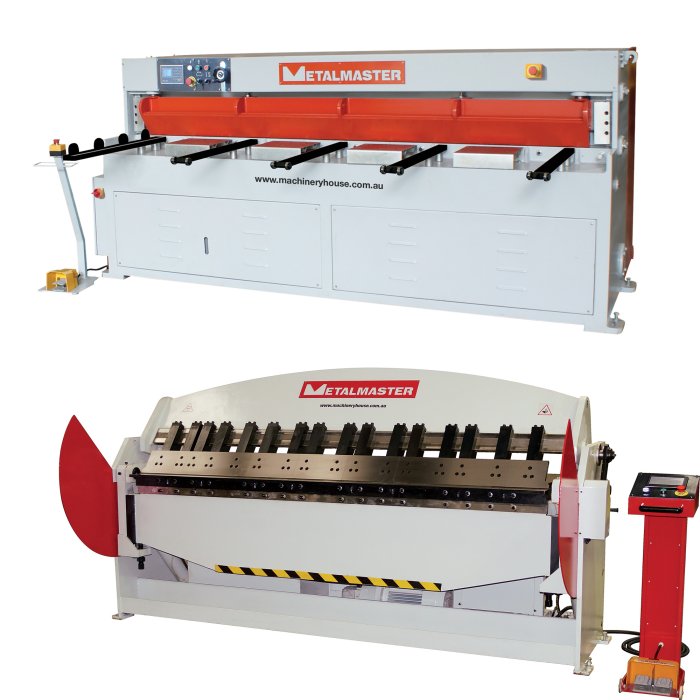

METALMASTERHG-840B & PB-830A
Hydraulic NC Guillotine & NC Panbrake Package
  • 1 of 33
    K062
  • 2 of 33

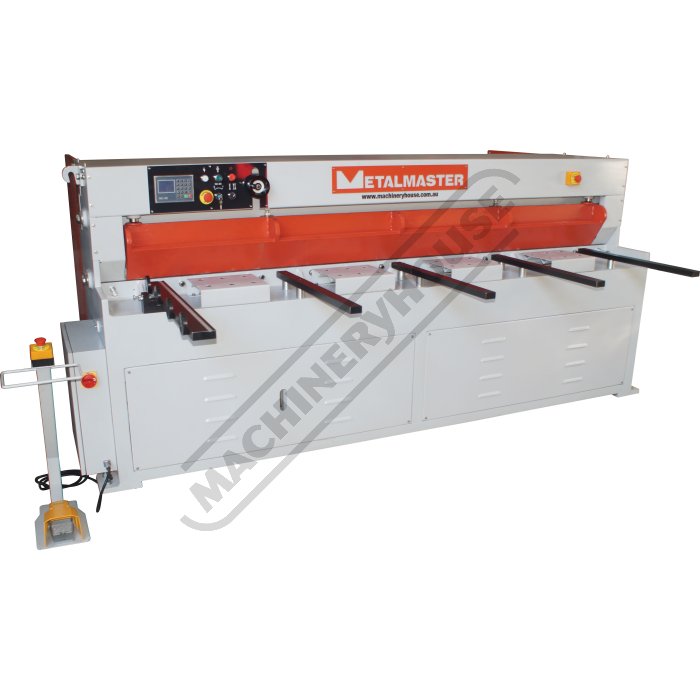

    Left View
  • 3 of 33
    Right View
  • 4 of 33

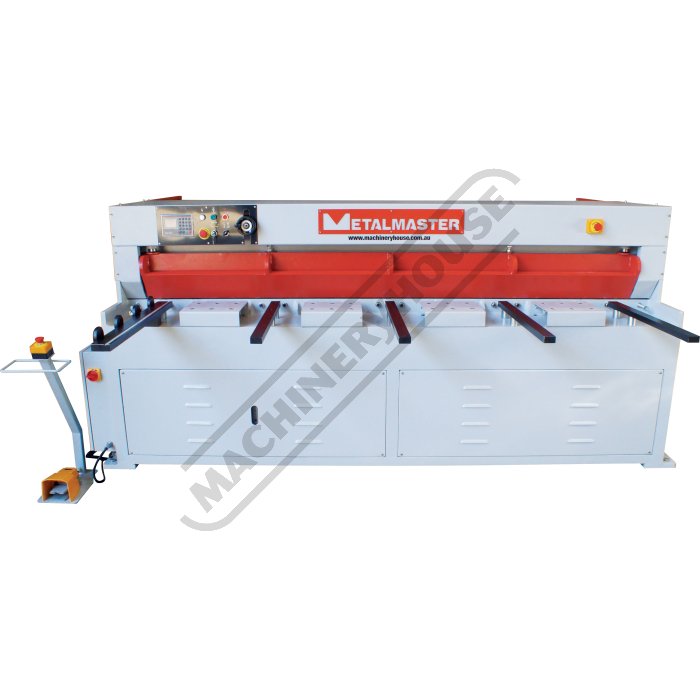

    Front View
  • 5 of 33

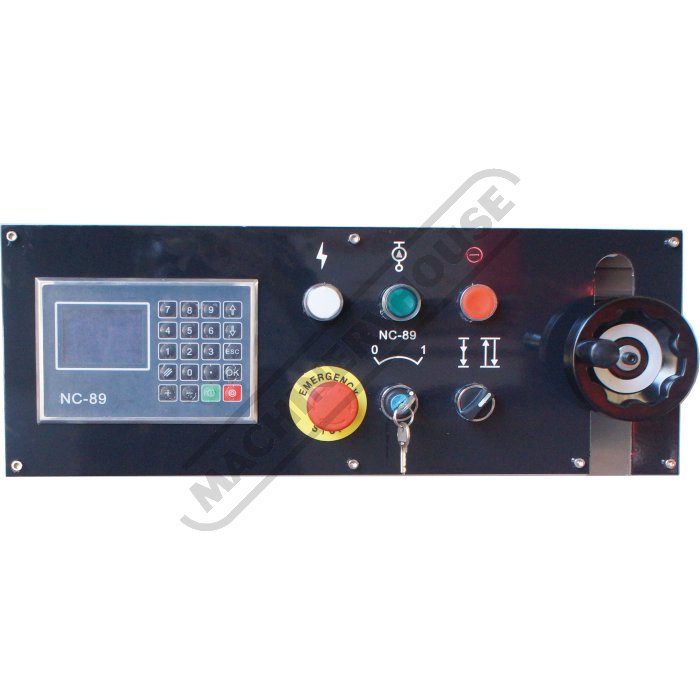

    NC 89 Control Panel
  • 6 of 33

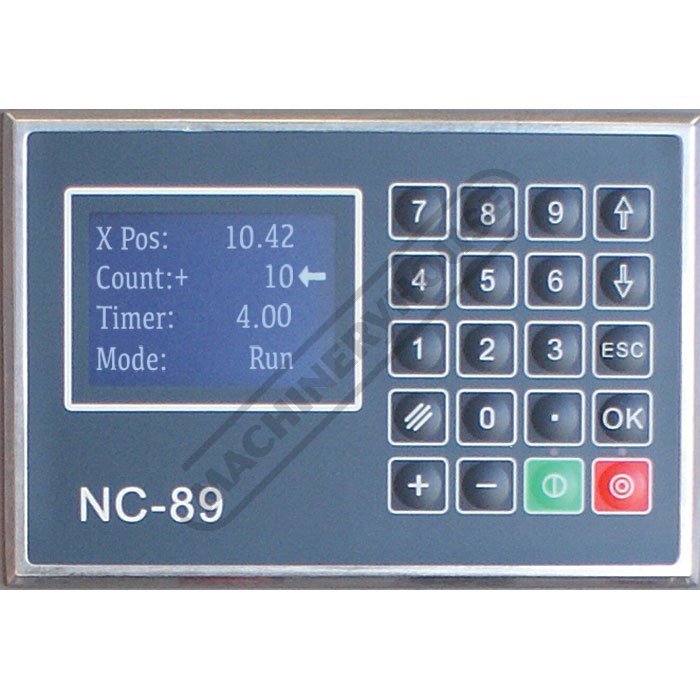

    NC 89 Backgauge DRO
  • 7 of 33

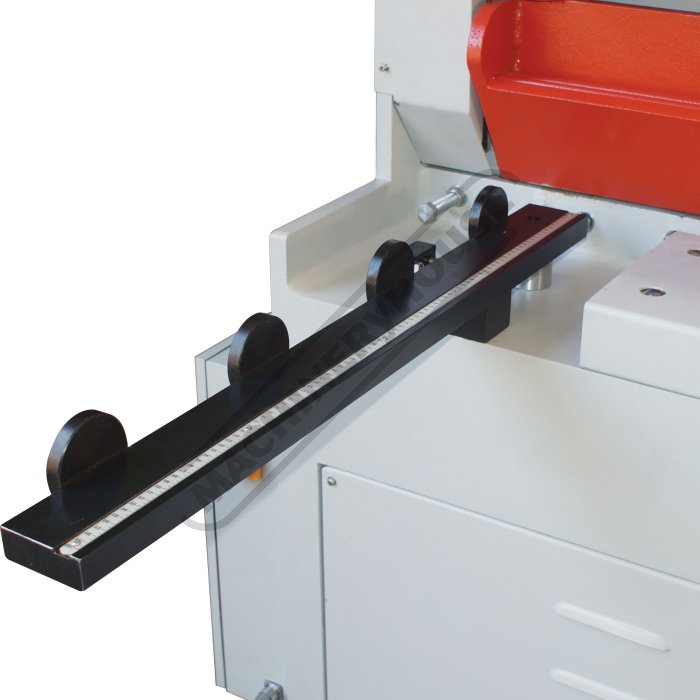

    Squaring Arm
  • 8 of 33

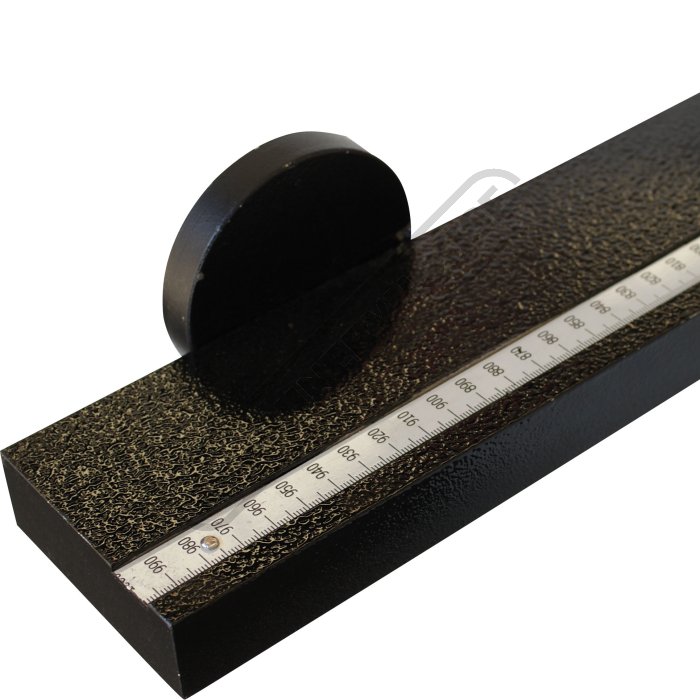

    Squaring Arm with Measuring Scale
  • 9 of 33

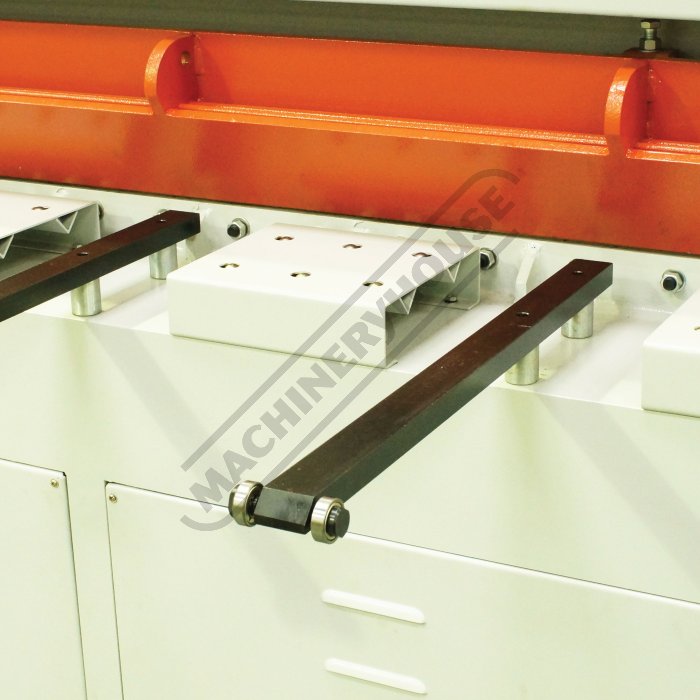

    Front Sheet Supports
  • 10 of 33

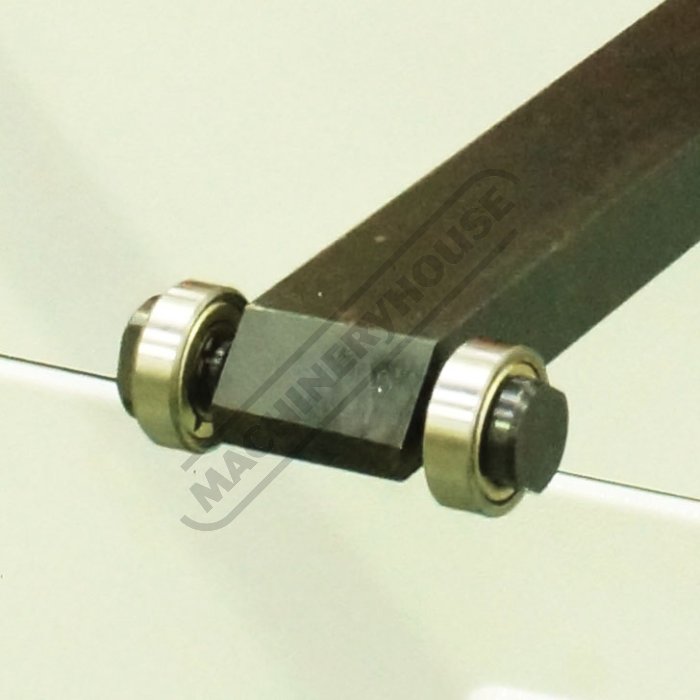

    Front Sheet Supports with Roller Bearings
  • 11 of 33

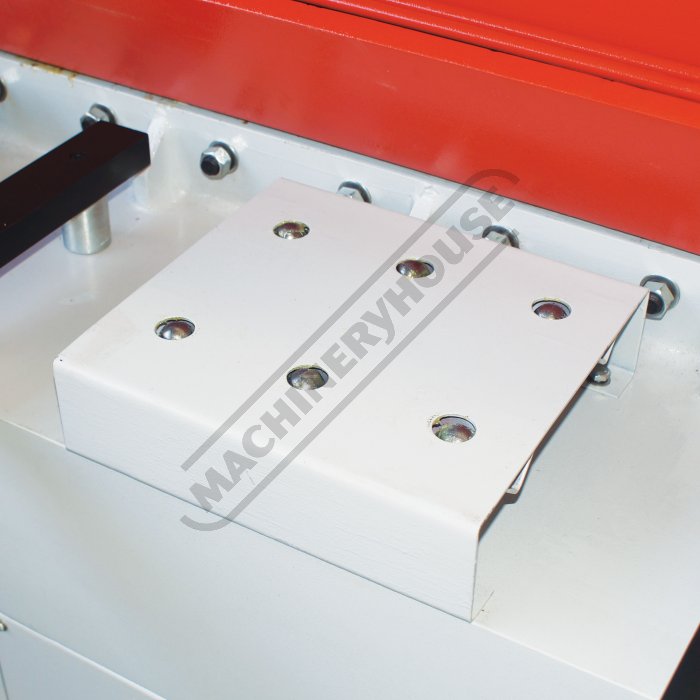

    Material Transfer Ball On the Table
  • 12 of 33

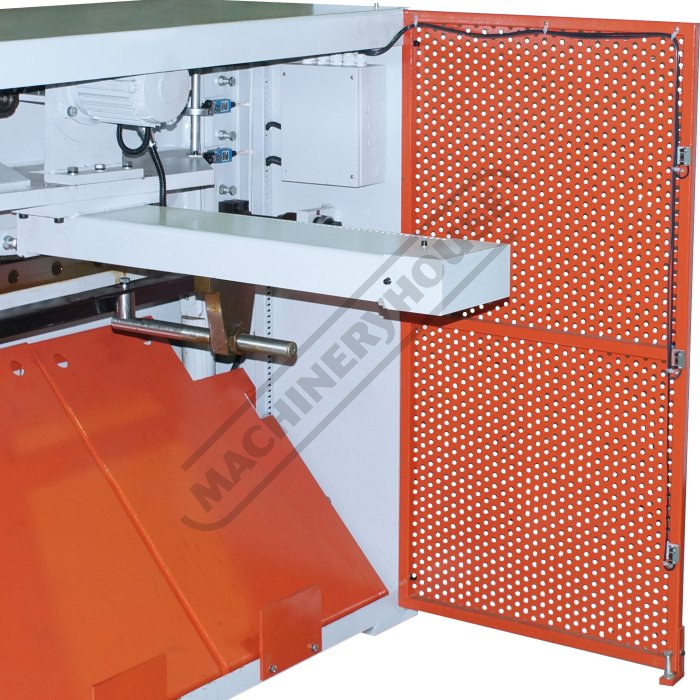

    3 Safety Photo Sensors
  • 13 of 33

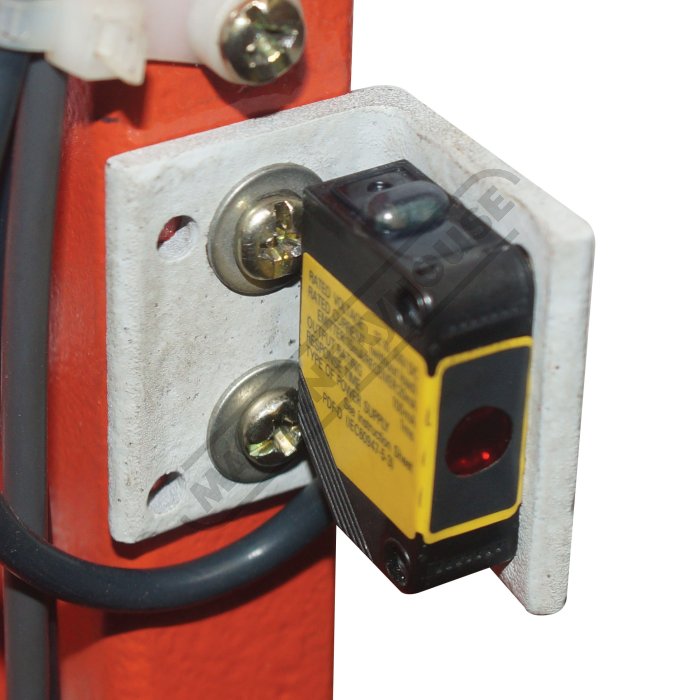

    Safety Omron E3ZS Rear Light Sensor Guarding
  • 14 of 33

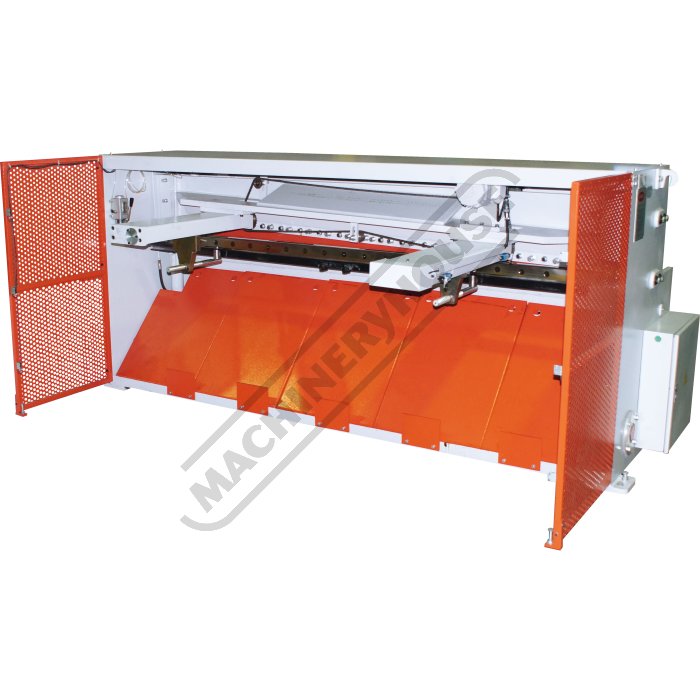

    Motorised Backgauge
  • 15 of 33

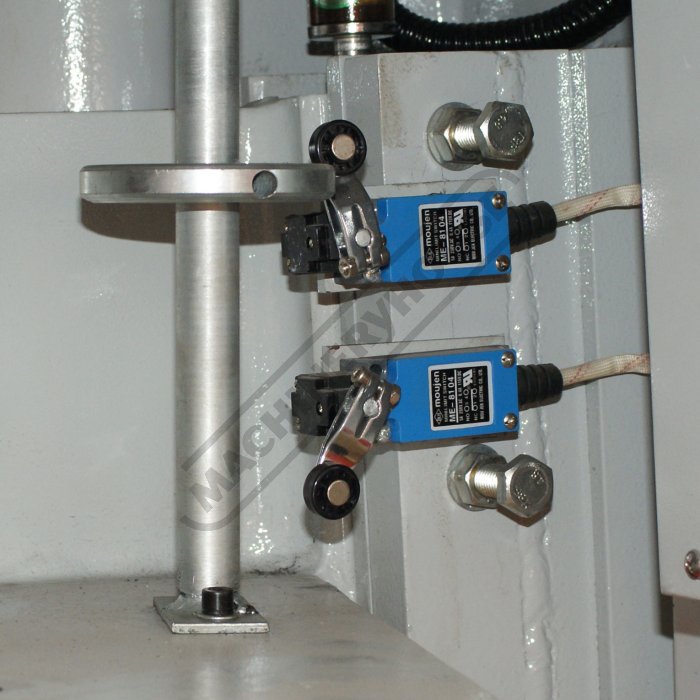

    Micro Switches
  • 16 of 33

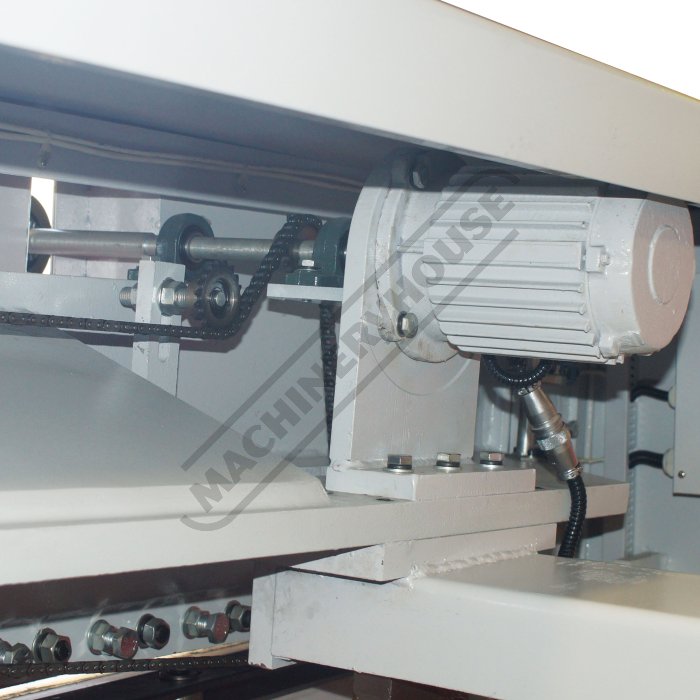

    Back Gauge Drive Motor
  • 17 of 33

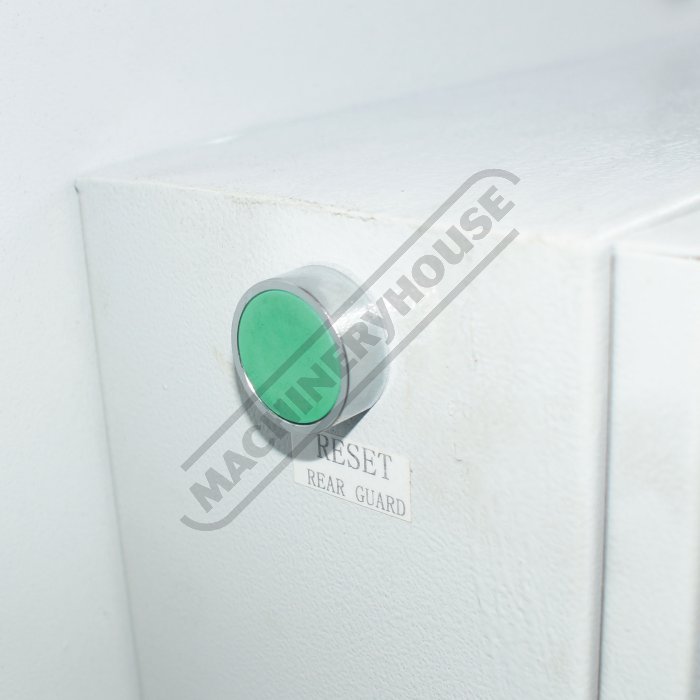

    Rear Guard Reset Button
  • 18 of 33

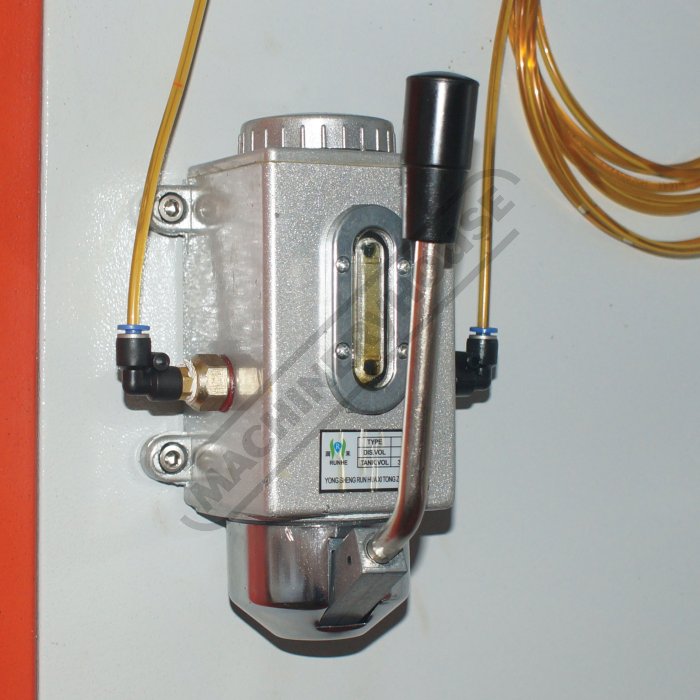

    One Shot Lubrication
  • 19 of 33

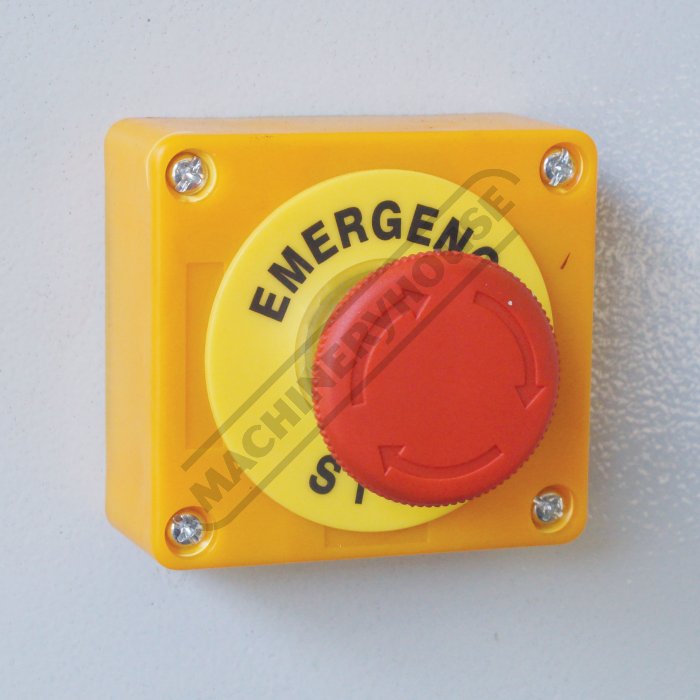

    Emergency Stop Switch
  • 20 of 33

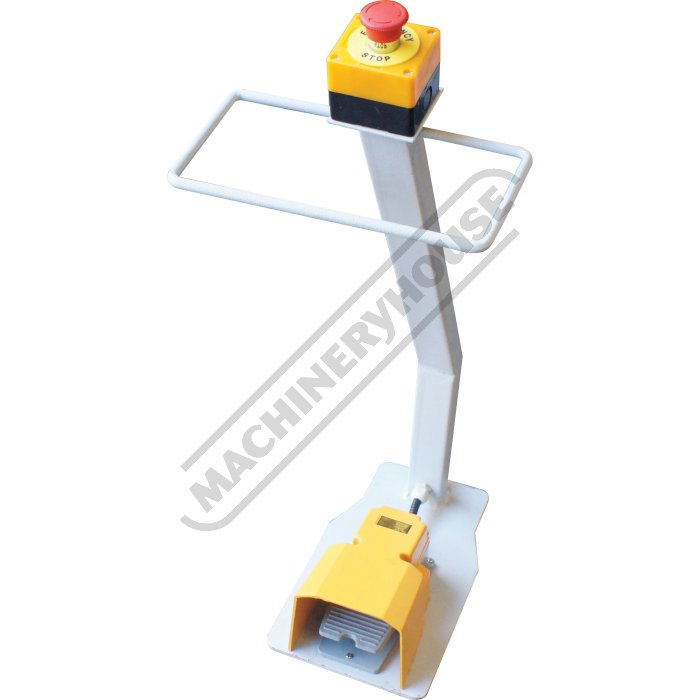

    Mobile Foot Control
  • 21 of 33

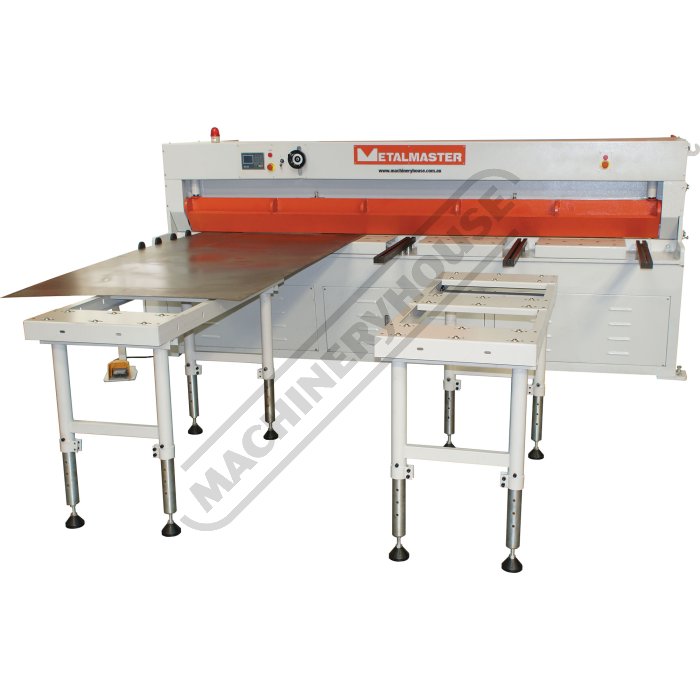

    Shown with Optional Ball Transfer Tables
  • 22 of 33

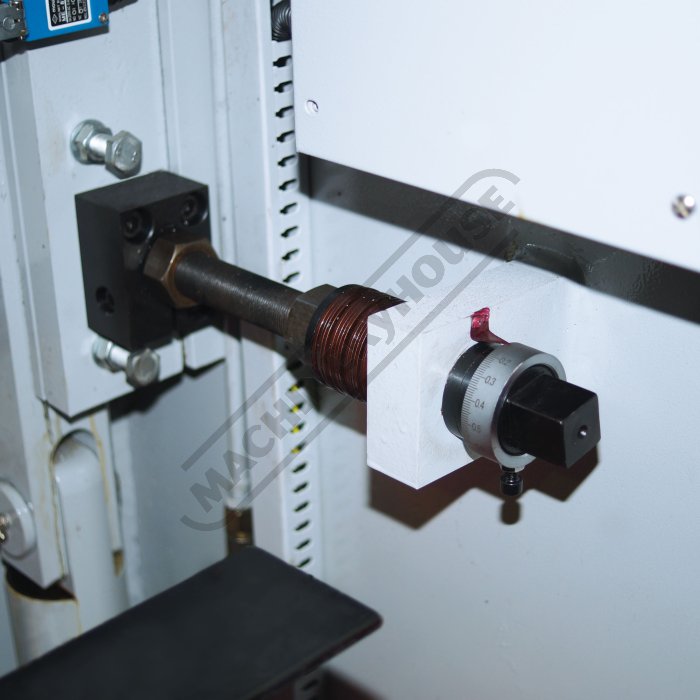

    Quick Action Blade Clearance Adjustment
  • 23 of 33

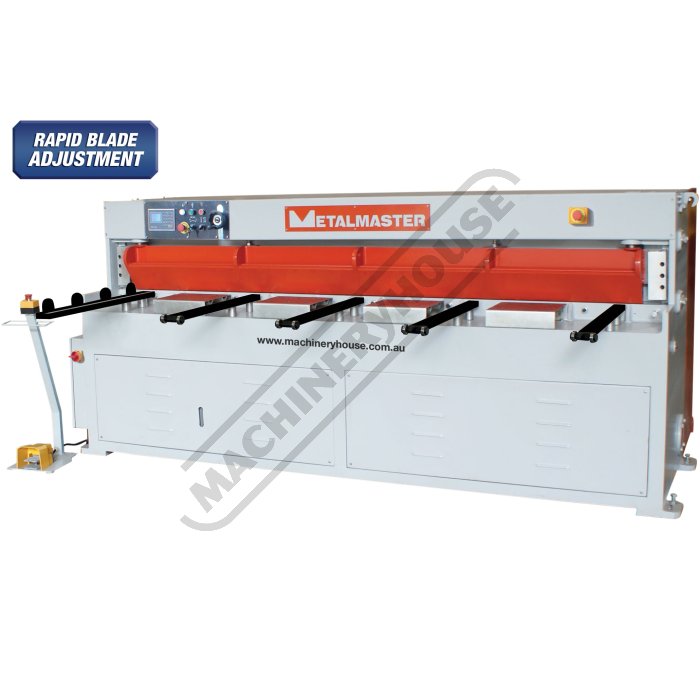

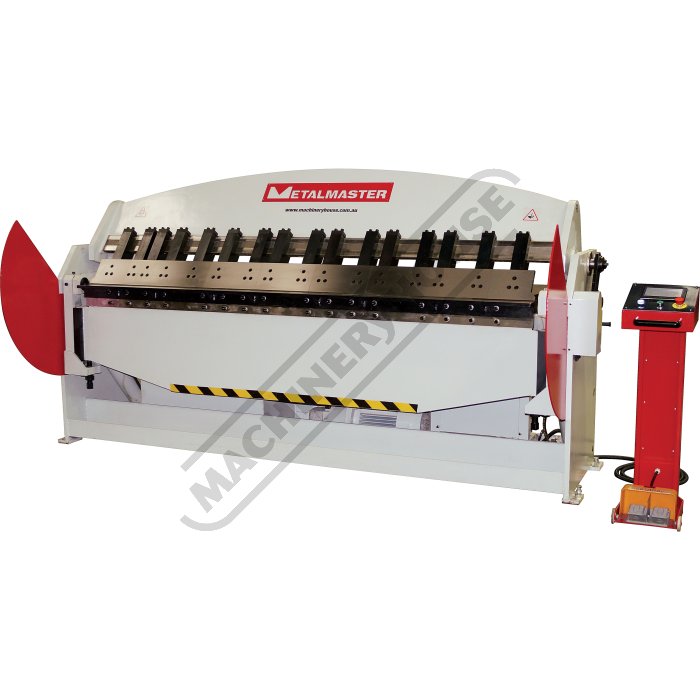

    Right View
  • 24 of 33

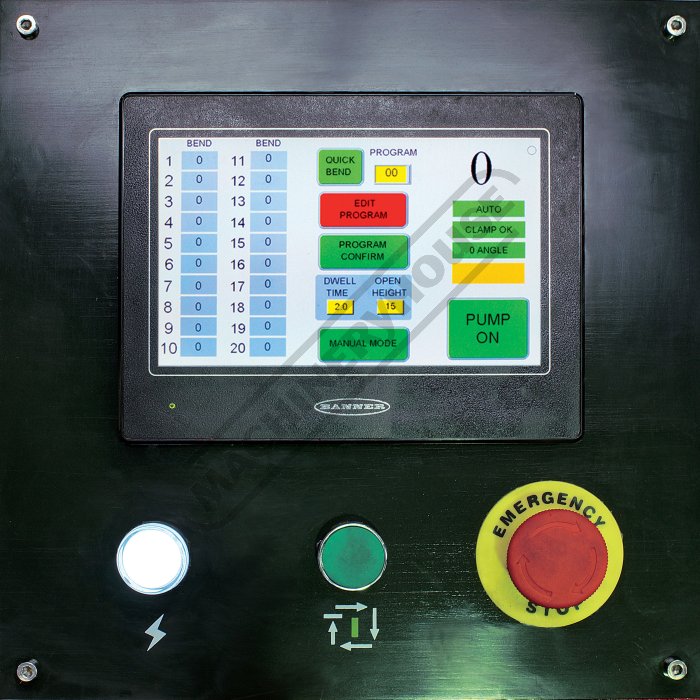

    NC 89 Control Panel
  • 25 of 33

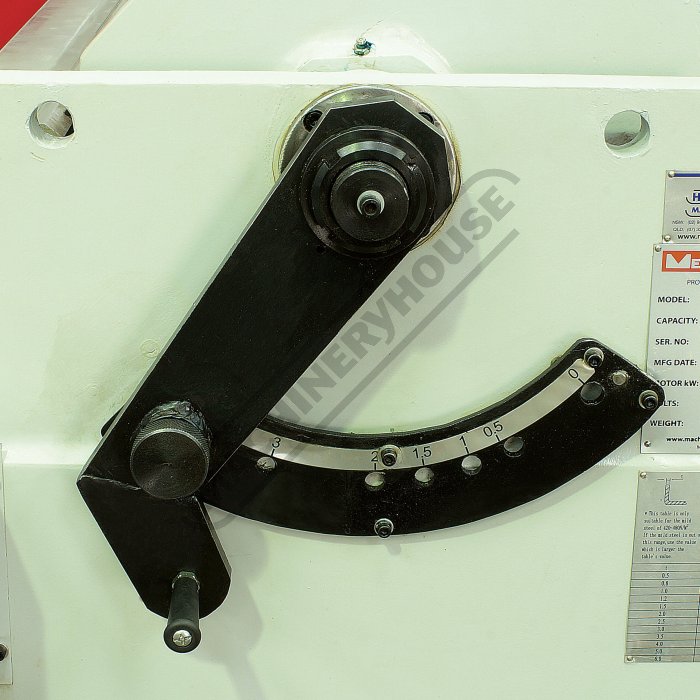

    Rapid Blade Adjustment for Material Thickness
  • 26 of 33

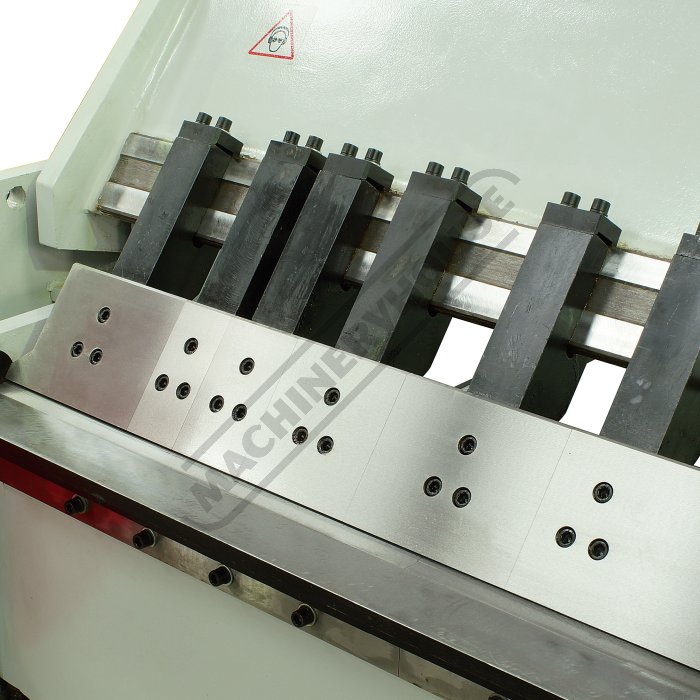

    Removable Fingers
  • 27 of 33

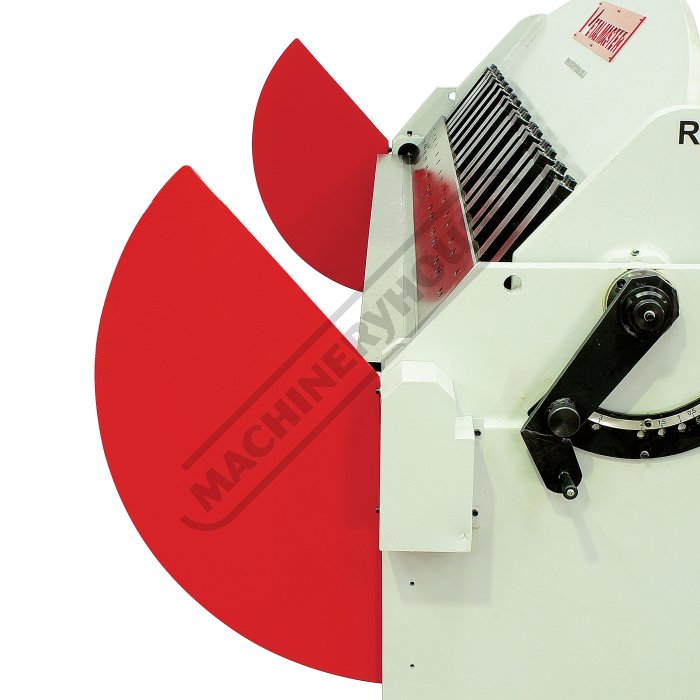

    Apron Safety Guards
  • 28 of 33

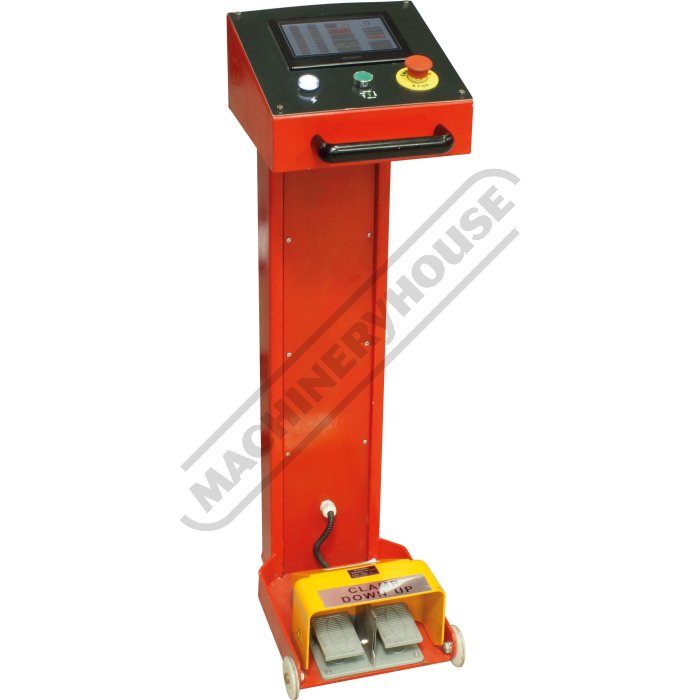

    Roving Foot Pedal
  • 29 of 33

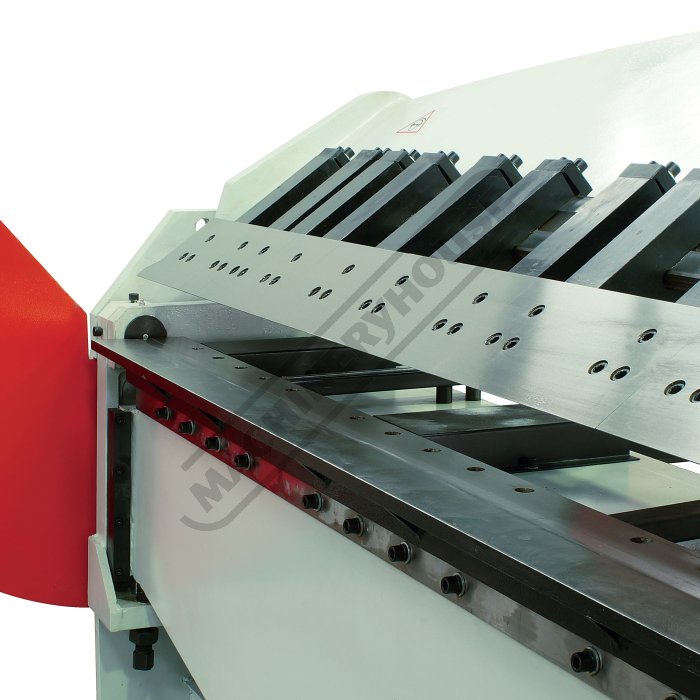

    Shown with Material Clamp Beam Open
  • 30 of 33

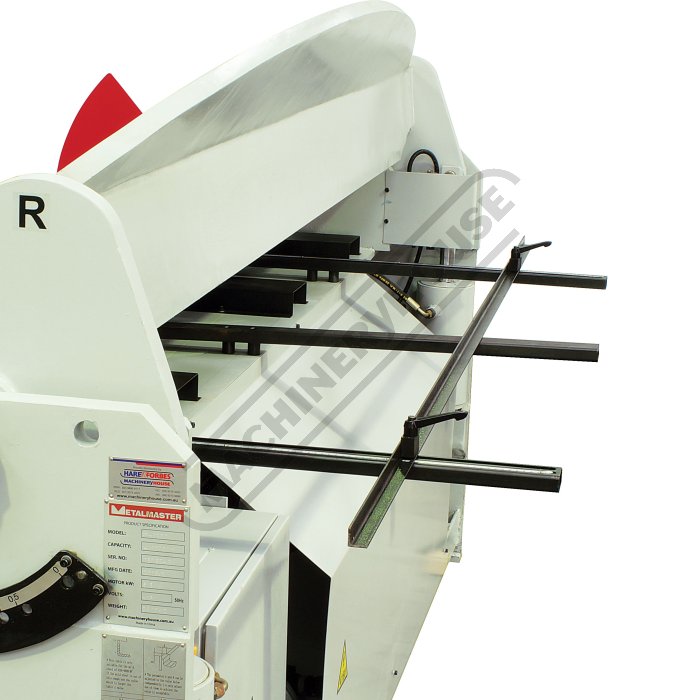

    Manual Backgauge
  • 31 of 33

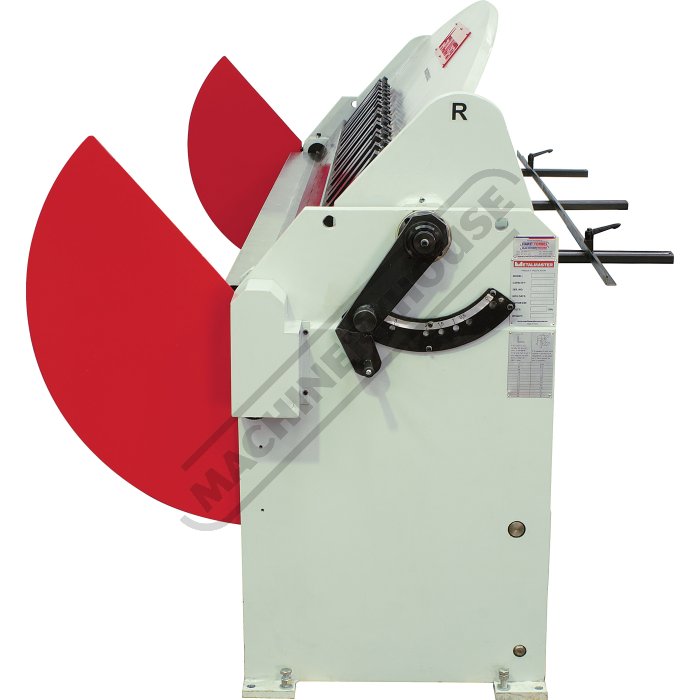

    Side View
  • 32 of 33

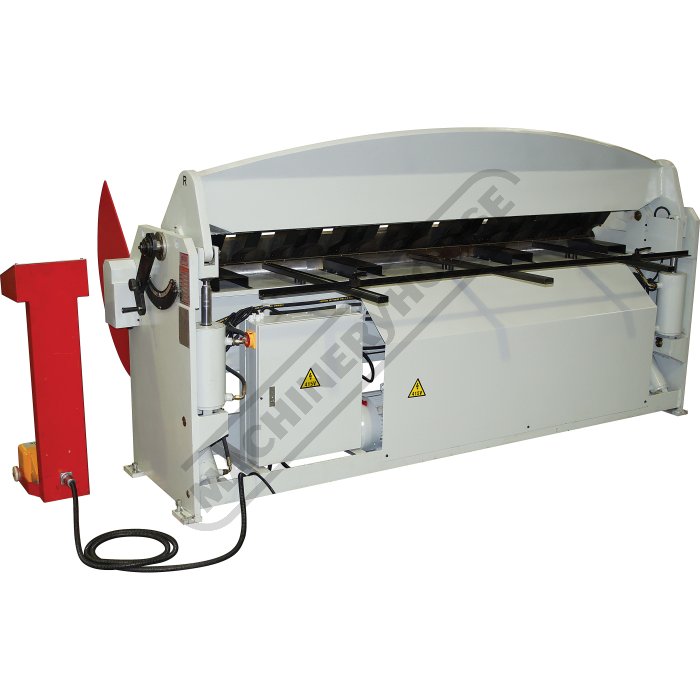

    Rear View
  • 33 of 33
    Shown with Optional Ball Transfer Tables
Order Code: K062
HG-840B & PB-830A - Hydraulic NC Guillotine & NC Panbrake Package (415V)
Ezy-Set NC-89 Guillotine - 2500 x 4mm, Ezy-Set NC-89 Panbrake 2500 x 4mm
METALMASTER
ORDER CODE
K062
MODEL
HG-840B + PB-830A
Shearing Capacity - Mild Steel (mm)
4
Shearing Capacity - Stainless Steel (mm)
2.5
Shearing Length (mm)
2500
Backgauge Travel (mm)
700
Backgauge Control (Type)
Ezy-Set NC-89
Quick Action Blade Clearance Adjustment
Backgauge (Type)
Leadscrew
Strokes / min (SPM)
12
Blade Angle (deg)
Motor Power (kW / hp)
5.5 / 7.5
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
5650
Features
  • S927 = HG-840B GUILLOTINE:
  • 2500mm x 4mm cutting capacity
  • 5.5kW / 7.5hp 415V motor
  • Ezy-Set NC-89 Go-To digital display controlled backgauge with DRO counter
  • Quick action blade clearance adjustment for shearing material 1 - 4mm
  • Hydraulic material clamping for accurate shearing
  • One shot lubrication pump & reservoir for slideway protection
  • Roving foot pedal control
  • Clamp beam design allows clear view to shadow line on material
  • Blades made from 9CrSi material suitable for cutting stainless steel
  • Plate support tables with transfer balls for quick & easy material alignment and manoeuvrability
  • Front sheet supports with ball bearing guides preventing material damage when setting up
  • Safety three photo electric light beams on rear guarding
  • Safety reset rear guarding button mounted to back of electrical box
  • Heavy duty under driven machine construction
  • Equipped with shadow line lighting-alignment device
  • Mild steel capacity is rated on hot rolled material with 250MPA

  • S584A = PB-830A PANBRAKE:
  • 2500mm x 4mm bending capacity
  • NC-89 digital single angle programmable control for angles from 0-125º
  • Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
  • Quick action rapid head adjustment to optimise bend radius on 1-4mm material thickness
  • Heavy duty steel fabricated construction
  • Roving foot pedal incorporates control panel for maximum flexibility
  • Unique moving guards ensures the front of the machine is clear for unobstructed loading/unloading of material
  • Quality hydraulic and electrical components supplies by leading manufactures including Rexroth, Telemechanique and Merlin Gerin
  • NC-89 controlled opening height adjustment
  • NC-89 controlled dwell timer ensures consistent bending angle
  • Extended fingers allows bending of pans or boxes to a depth of 205mm
  • Includes an adjustable rear manual backgauge, also adjustable for tapered material
  • Mild steel capacity is rated on hot rolled material with 250MPA


  • Pre-Commissioning:
  • 1. Panbrake bender is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
