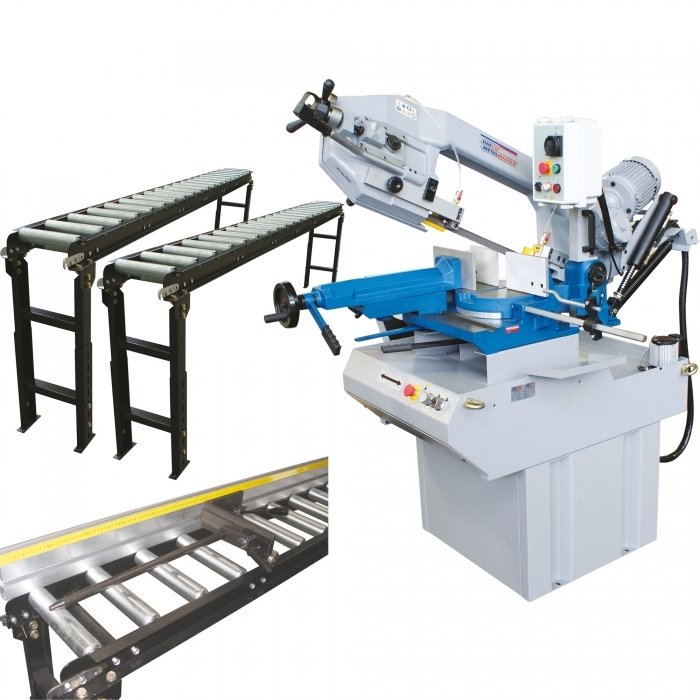

Swivel Head Metal Cutting Band Saw Package with Conveyor System
  • 1 of 18
  • 2 of 18
    Unique Rotating Table and Dual Mitre Swivel Head
  • 3 of 18
    Control Panel
  • 4 of 18
    Electronic Variable Speed Dial
  • 5 of 18
    Adjustable Automatic Feed
  • 6 of 18
    Blade Tension Gauge
  • 7 of 18
    Motor and Gearbox Drive
  • 8 of 18
    Quick Action Clamp Lever
  • 9 of 18
    Wire Wheel and Roller Bearing Blade Guides
  • 10 of 18
    Right View
  • 11 of 18
    Adjustable Length Stop
  • 12 of 18
    Sliding Vice with Quick Action Lock
  • 13 of 18
    Quick Action Clamping Lever
  • 14 of 18
    Rear View
  • 15 of 18
    Coolant System
  • 16 of 18
    Blade Height Micro
  • 17 of 18
    Blade Guard Micro
  • 18 of 18

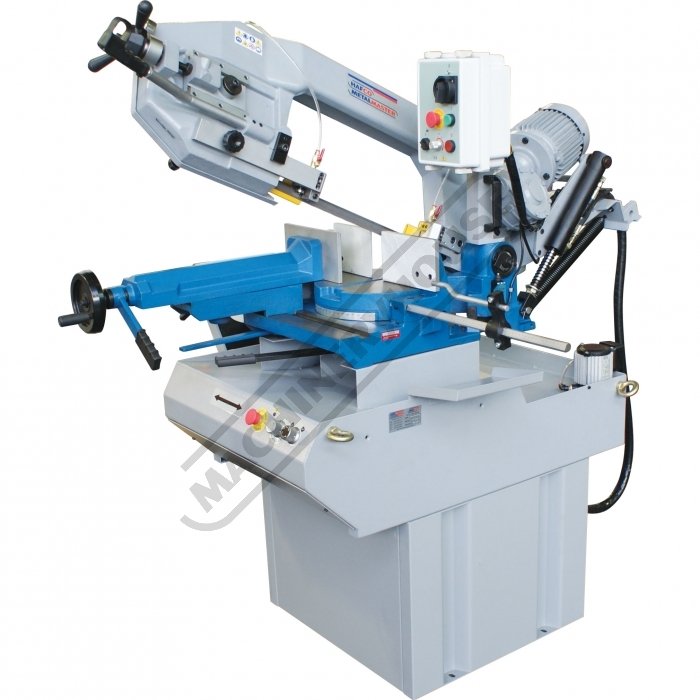

    Front View
Order Code: K003
EB-320DSV - Swivel Head Metal Cutting Band Saw Package with Conveyor System (415V)
315 x 230mm (W x H) Rectangle Capacity
Electronic Variable Blade Speed 20 - 75mpm
EB-320DSV Package Deal
Operation Type
Swivel Head - Dual Mitre
Round @ 90º (mm)
Round @ 45º (mm)
Round @ 60º (mm)
Square @ 90º (mm)
Square @ 45º (mm)
Square @ 60º (mm)
Rectangle (W x H) @ 90º (mm)
315 x 230
Rectangle (W x H) @ 45º (mm)
195 x 230
Rectangle (W x H) @ 60º (mm)
115 x 160
Coolant System
Table Working Height (mm)
Cutting Head Beam Type
Cutting Head Beam Return
Manual Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Vice Clamping Fixture
Manual - Quick Action
Blade Steps / Speeds (m/min)
Blade Size (L x W x T) (mm)
2750 x 27 x 0.9
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
Nett Weight (kg)
  • 315 x 230mm rectangular capacity
  • Electronic variable blade speeds 20 - 75mpm
  • Unique rotating table swivels with the cutting head
  • Larger capacity than conventional cold saws
  • Heavy-duty gear drive system
  • Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
  • Swivel head double mitre cut to 45º right & left, 60º right
  • Quick action lock/release lever for swivel head
  • Quick action vice release to change opening & closing
  • Quick-action clamping lever for repetition work
  • Unique sliding vice design for dual mitre operation
  • Coolant system for cutting efficiency and blade life
  • Input support roller for long stock
  • User friendly blade tension system with gauge
  • Adjustable hydraulic cylinder for auto feed
  • Vibration free, low noise operation ensures clean & high precision cuts
  • Machine stand with integrated cooling fitted as standard
  • 1 x EB320DS band saw
  • 2 x 290mm wide x 3000mm long roller conveyors
  • 4 x Conveyor stands
  • 1 x 3000mm length stop
