On Sale
Order Code: H258
ex-gst
inc-gst
$ 1,300.00
$ 1,430.00
$ 1,170.00
$ 1,287.00
240V / 10A
1 Year Warranty
Description

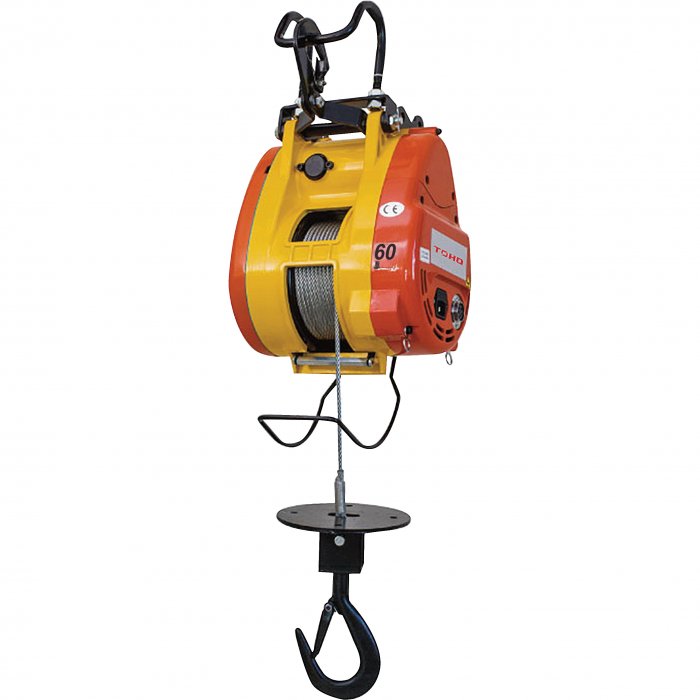

TBH360 - Compact Wire Rope Hoist

360kg
Overview
Designed for use on building sites and multi-storey units, these compact electric rope hoists are also suitable for a wide range of applications in warehouses, storage areas, factories, etc.
Features
  • Light weight and compact design allowing for easy installation
  • Automatic upper limit switch, when rope disc touches the limit arm, hoisting is automatically stopped
  • Lower overwind limit switch
  • Dynamic and mechanical brake providing instant and safe braking
  • Convenient 240 volt/single phase power supply
  • Sensor arm automatically stops motor if the wire rope is under-wound
  • Wire rope with 360º weighted hook with safety latch
  • Supplied with 3 metre power lead and industry plug & 10 metre heavy duty IP65 waterproof pendant control
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Model
  • Brand
  • (kg)Lifting Capacity
  • (Metre)Lifting Height
  • (m/min)Speed
  • (Metre)Pendant Control Length
  • (mm)Wire Rope Diameter
  • (kW)Motor Output
  • (V)Voltage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On SaleH257
  • Compare
  • Wishlist
  • H257
  • TBH250
  • TOHO
  • 250
  • 30
  • 19
  • 3
  • 5
  • 1.5
  • 240
  • 22
  • $990.00
  • $1,089.00
  • ADD TO CART
  • On SaleH258
  • Compare
  • Wishlist
  • H258
  • TBH360
  • TOHO
  • 360
  • 30
  • 13
  • 3
  • 6
  • 1.6
  • 240
  • 26
  • $1,170.00
  • $1,287.00
  • ADD TO CART
  • On SaleH259
  • Compare
  • Wishlist
  • H259
  • TBH500
  • TOHO
  • 500
  • 30
  • 13
  • 3
  • 6
  • 1.6
  • 240
  • 30
  • $1,350.00
  • $1,485.00
  • ADD TO CART
  • H273
  • Compare
  • Wishlist
  • H273
  • CWS-80
  • Pacific Hoist
  • 80
  • 35
  • 30
  • 10
  • Ø3.3
  • 0.8
  • 240
  • 18
  • $1,190.91
  • $1,310.00
  • ADD TO CART
  • H274
  • Compare
  • Wishlist
  • H274
  • CWS-160
  • Pacific Hoist
  • 160
  • 40
  • 22
  • 10
  • Ø4.0
  • 1.2
  • 240
  • 25
  • $1,530.00
  • $1,683.00
  • ADD TO CART
  • H275
  • Compare
  • Wishlist
  • H275
  • CWS-230
  • Pacific Hoist
  • 230
  • 24
  • 14
  • 10
  • Ø5.0
  • 1.3
  • 240
  • 26
  • $1,650.00
  • $1,815.00
  • ADD TO CART
  • H276
  • Compare
  • Wishlist
  • H276
  • CWS-300
  • Pacific Hoist
  • 300
  • 24
  • 13
  • 10
  • Ø4.8
  • 1.5
  • 240
  • 17
  • $2,000.00
  • $2,200.00
  • ADD TO CART
