HAFCOHF-750
Portable Magnetic Drill - 3MT
  • 1 of 13
    D9507
  • 2 of 13

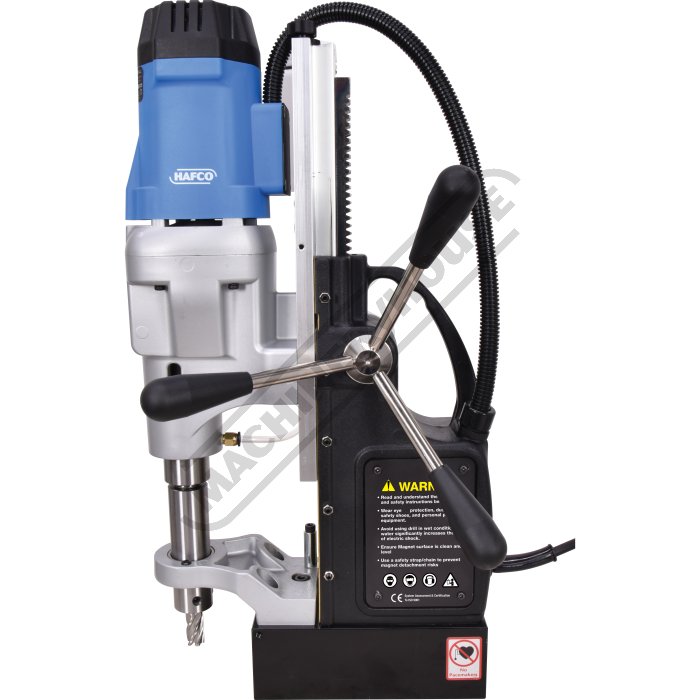

    Side View
  • 3 of 13
    Rear View
  • 4 of 13
    Rear Front View
  • 5 of 13
    Four Geared Speeds
  • 6 of 13
    Four Speed Gearbox Levers
  • 7 of 13
    Control Panel
  • 8 of 13
    Dovetail Bronze Slide
  • 9 of 13
    Through Spindle Coolant System
  • 10 of 13
    Coolant Storage Container with Valve
  • 11 of 13

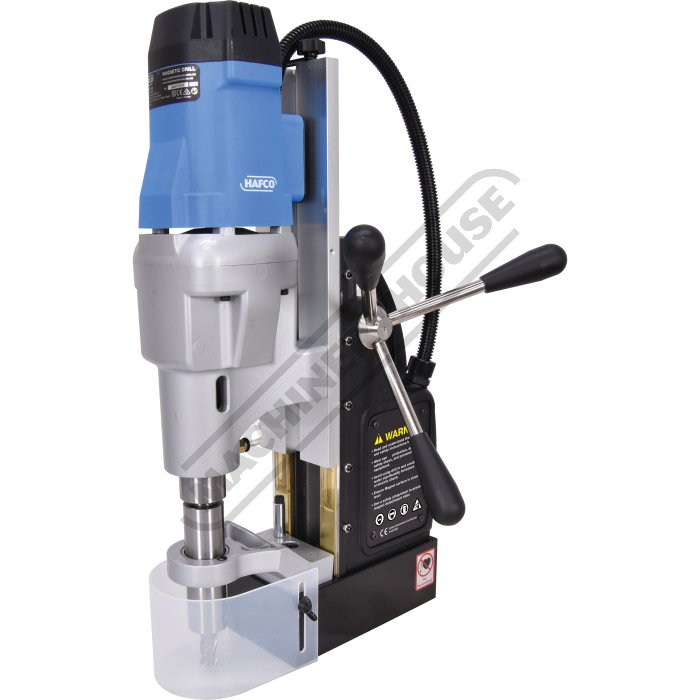

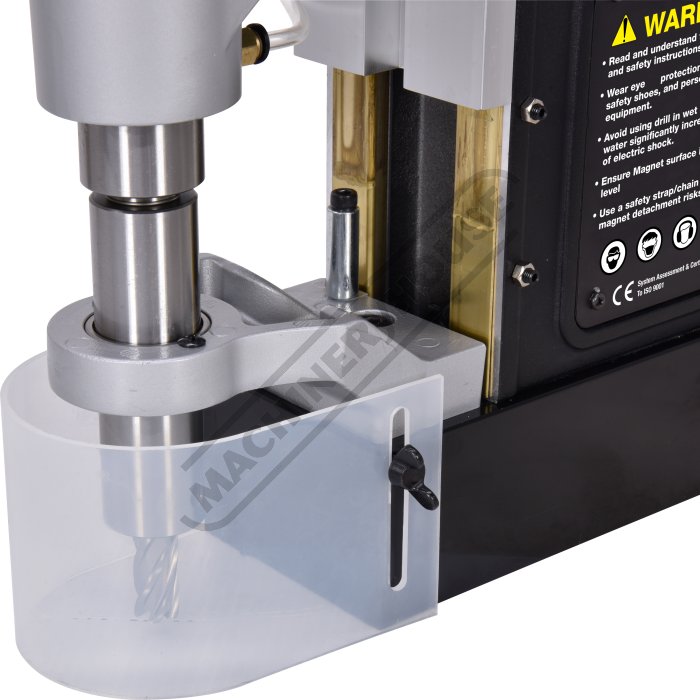

    Drill Guard
  • 12 of 13
    Case
  • 13 of 13
    Drilling I Beam with 3MT Taper Shank Drill
Order Code: D9507
HF-750 - Portable Magnetic Drill - 3MT (240V)
Ø75mm Drill Capacity
Manual Feed
HAFCO
ORDER CODE
D9507
MODEL
HF-750
Feed
Manual
Drilling Capacity Range - Manual (mm)
12 - 75
Maximum Thickness (mm)
50
Suits Cutter Shank Size (mm)
19
Number of Drilling Speeds (No.)
4
Full Load Drilling Speeds (rpm)
90 / 120 / 180 / 230
No Load Drilling Speeds (rpm)
150 / 200 / 300 / 380
Magnetic Holding Power (kg/f)
3263
Motor Power (kW / hp)
1.8 / 2.4
Voltage / Amperage (V / amp)
240 / 10
Nett Weight (kg)
31
Description
Manufactured in Taiwan

On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

Hafco offers a full line of robust and versatile magnetic drilling machines built specifically for the hole making needs of various industries. Applications include fabrication, industrial and civil construction, maintenance, ship building and many others.
This large No. 3 morse taper four speed model drill, has the versatility of using either broach cutters or taper shank drills. It is manual feed and has forward and reverse to make it suitable to be used as a tapping machine.
This model features a purpose-built mag drill motor. This is designed to have the ideal torque characteristics to produce the best performance and durability for heavy-duty industrial use.

NOTE: Shown with optional broach cutter
Features
  • 3MT spindle taper
  • 19mm shank broach holder & bracket
  • 4-speed gearbox
  • Full load speeds: 90, 120, 180, 230rpm
  • 1800W 240V motor
  • Forward/reverse for tapping
  • Ø75mm drilling capacity through 50mm plate
  • Bronze dovetail slides
  • Can be used with 3MT drills up-to 31.5mm
  • CE approved
Includes
  • 3MT spindle taper
  • 4 speed gearbox
  • Coolant tank kit
  • Safety chain
  • Blow mould plastic case
