EASSON
On Sale
Order Code: D738
ex-gst
inc-gst
$ 495.00
$ 544.50
$ 420.00
$ 462.00
1 Year Warranty
Description

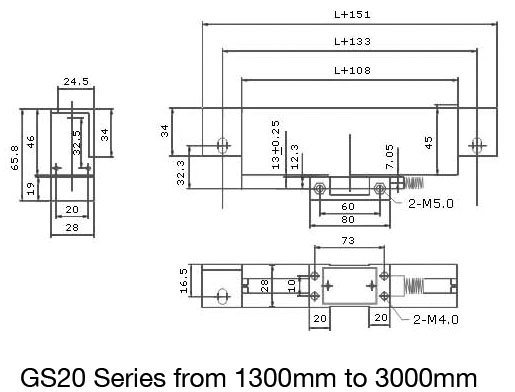

GS20 - Easson DRO Scales

1300mm Standard
5µm
Overview
Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation
Features
  • DOUBLE SEAL DESIGNED SCALES:
  • The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

  • 100% LASER CALIBRATION:
  • All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

  • ADVANCED OPTICAL MEASURING SYSTEM:
  • The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
  • The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

  • D.I.Y. INSTALLATION:
  • An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Type
  • (mm)Travel
  • (µm)Scale Accuracy
  • (Metre)Cable Length
  • (Yes / No)Backing Support Plate
  • (mm)Width x Height (W x H)
  • (mm)Overall Length (L)
  • (ex-gst)Pricing
  • (inc-gst)
  • On SaleD694
  • Compare
  • Wishlist
  • D694
  • DRO3-MS
  • Magnetic Scale
  • 1500
  • 5
  • ~
  • No
  • 10 x 1.5
  • 1500
  • $41.82
  • $46.00
  • ADD TO CART
  • On SaleD692
  • Compare
  • Wishlist
  • D692
  • DRO3-RH
  • Cable
  • ~
  • 5
  • ~
  • No
  • 32 x 23
  • 1500
  • $160.91
  • $177.00
  • ADD TO CART
  • On SaleD696
  • Compare
  • Wishlist
  • D696
  • DRO5-RH
  • Cable
  • ~
  • 5
  • ~
  • No
  • 32 x 23
  • 1500
  • $67.27
  • $74.00
  • ADD TO CART
  • On SaleD718
  • Compare
  • Wishlist
  • D718
  • GS30
  • Compact
  • 100
  • 5
  • 3
  • Yes
  • 20 x 28.5
  • 244
  • $176.36
  • $194.00
  • ADD TO CART
  • On SaleD719
  • Compare
  • Wishlist
  • D719
  • GS30
  • Compact
  • 150
  • 5
  • 3
  • Yes
  • 20 x 28.5
  • 294
  • $176.36
  • $194.00
  • ADD TO CART
  • On SaleD5209
  • Compare
  • Wishlist
  • D5209
  • MK-500-170/5U
  • Compact
  • 170
  • 5
  • 3
  • Yes
  • ~
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • On SaleD720
  • Compare
  • Wishlist
  • D720
  • GS10
  • Standard
  • 200
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 347
  • $185.45
  • $204.00
  • ADD TO CART
  • On SaleD720C
  • Compare
  • Wishlist
  • D720C
  • GS30
  • Compact
  • 200
  • 5
  • 3
  • Yes
  • 20 x 28.5
  • 344
  • $185.45
  • $204.00
  • ADD TO CART
  • On SaleD5210
  • Compare
  • Wishlist
  • D5210
  • MK-300-220/5U
  • Standard
  • 220
  • 5
  • 3
  • Yes
  • ~
  • ~
  • $111.82
  • $123.00
  • ADD TO CART
  • On SaleD5211
  • Compare
  • Wishlist
  • D5211
  • MK-500-220/5U
  • Compact
  • 220
  • 5
  • 3
  • Yes
  • ~
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • On SaleD721
  • Compare
  • Wishlist
  • D721
  • GS10
  • Standard
  • 250
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 397
  • $195.45
  • $215.00
  • ADD TO CART
  • On SaleD721C
  • Compare
  • Wishlist
  • D721C
  • GS30
  • Compact
  • 250
  • 5
  • 3
  • Yes
  • 20 x 28.5
  • 394
  • $195.45
  • $215.00
  • ADD TO CART
  • On SaleD7582
  • Compare
  • Wishlist
  • D7582
  • DC-10F250
  • Compact
  • 250
  • 5
  • 3
  • Yes
  • 18 x 23.2
  • 388
  • $180.00
  • $198.00
  • ADD TO CART
  • On SaleD5212
  • Compare
  • Wishlist
  • D5212
  • MK-300-270/5U
  • Standard
  • 270
  • 5
  • 3
  • Yes
  • ~
  • ~
  • $111.82
  • $123.00
  • ADD TO CART
  • On SaleD5213
  • Compare
  • Wishlist
  • D5213
  • MK-500-270/5U
  • Compact
  • 270
  • 5
  • 3
  • Yes
  • ~
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • On SaleD722
  • Compare
  • Wishlist
  • D722
  • GS10
  • Standard
  • 300
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 447
  • $200.91
  • $221.00
  • ADD TO CART
  • On SaleD722A
  • Compare
  • Wishlist
  • D722A
  • GS10
  • Standard
  • 300
  • 5
  • 5
  • Yes
  • 21.5 x 34
  • 447
  • $200.91
  • $221.00
  • ADD TO CART
  • On SaleD722C
  • Compare
  • Wishlist
  • D722C
  • GS30
  • Compact
  • 300
  • 5
  • 3
  • Yes
  • 20 x 28.5
  • 444
  • $204.55
  • $225.00
  • ADD TO CART
  • On SaleD7583
  • Compare
  • Wishlist
  • D7583
  • DC-10F300
  • Compact
  • 300
  • 5
  • 3
  • Yes
  • 18 x 23.2
  • 438
  • $180.00
  • $198.00
  • ADD TO CART
  • On SaleD723
  • Compare
  • Wishlist
  • D723
  • GS10
  • Standard
  • 350
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 497
  • $204.55
  • $225.00
  • ADD TO CART
  • On SaleD723A
  • Compare
  • Wishlist
  • D723A
  • GS10
  • Standard
  • 350
  • 5
  • 5
  • Yes
  • 21.5 x 34
  • 497
  • $210.00
  • $231.00
  • ADD TO CART
  • On SaleD724
  • Compare
  • Wishlist
  • D724
  • GS10
  • Standard
  • 400
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 547
  • $210.00
  • $231.00
  • ADD TO CART
  • On SaleD725
  • Compare
  • Wishlist
  • D725
  • GS10
  • Standard
  • 450
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 597
  • $210.00
  • $231.00
  • ADD TO CART
  • On SaleD5220
  • Compare
  • Wishlist
  • D5220
  • MK-300-470/5U
  • Standard
  • 470
  • 5
  • 3
  • No
  • ~
  • ~
  • $111.82
  • $123.00
  • ADD TO CART
  • On SaleD726
  • Compare
  • Wishlist
  • D726
  • GS10
  • Standard
  • 500
  • 5
  • 3
  • Yes
  • 21.5 x 34
  • 647
  • $214.55
  • $236.00
  • ADD TO CART
  • On SaleD727
  • Compare
  • Wishlist
  • D727
  • GS10
  • Standard
  • 550
  • 5
  • 3
  • No
  • 21.5 x 34
  • 697
  • $214.55
  • $236.00
  • ADD TO CART
  • On SaleD5222
  • Compare
  • Wishlist
  • D5222
  • MK-300-570/5U
  • Standard
  • 570
  • 5
  • 3
  • No
  • ~
  • ~
  • $130.91
  • $144.00
  • ADD TO CART
  • On SaleD728
  • Compare
  • Wishlist
  • D728
  • GS10
  • Standard
  • 600
  • 5
  • 3
  • No
  • 21.5 x 34
  • 747
  • $219.09
  • $241.00
  • ADD TO CART
  • On SaleD730
  • Compare
  • Wishlist
  • D730
  • GS10
  • Standard
  • 700
  • 5
  • 3
  • No
  • 21.5 x 34
  • 847
  • $219.09
  • $241.00
  • ADD TO CART
  • On SaleD5225
  • Compare
  • Wishlist
  • D5225
  • MK-300-720/5U
  • Standard
  • 720
  • 5
  • 3
  • No
  • ~
  • ~
  • $130.91
  • $144.00
  • ADD TO CART
  • On SaleD731
  • Compare
  • Wishlist
  • D731
  • GS10
  • Standard
  • 750
  • 5
  • 3
  • No
  • 21.5 x 34
  • 897
  • $223.64
  • $246.00
  • ADD TO CART
  • On SaleD732
  • Compare
  • Wishlist
  • D732
  • GS10
  • Standard
  • 800
  • 5
  • 3
  • No
  • 21.5 x 34
  • 947
  • $223.64
  • $246.00
  • ADD TO CART
  • On SaleD734
  • Compare
  • Wishlist
  • D734
  • GS10
  • Standard
  • 900
  • 5
  • 3
  • No
  • 21.5 x 34
  • 1047
  • $242.73
  • $267.00
  • ADD TO CART
  • On SaleD5229
  • Compare
  • Wishlist
  • D5229
  • MK-300-920/5U
  • Standard
  • 920
  • 5
  • 3
  • No
  • ~
  • ~
  • $140.00
  • $154.00
  • ADD TO CART
  • On SaleD736
  • Compare
  • Wishlist
  • D736
  • GS10
  • Standard
  • 1000
  • 5
  • 3
  • No
  • 21.5 x 34
  • 1147
  • $247.27
  • $272.00
  • ADD TO CART
  • On SaleD5231
  • Compare
  • Wishlist
  • D5231
  • MK-300-1020/5U
  • Standard
  • 1020
  • 5
  • 3
  • No
  • ~
  • ~
  • $140.00
  • $154.00
  • ADD TO CART
  • On SaleD736A
  • Compare
  • Wishlist
  • D736A
  • GS50
  • Standard
  • 1100
  • 5
  • 5
  • No
  • 21.5 x 34
  • 1247
  • $382.73
  • $421.00
  • ADD TO CART
  • On SaleD737
  • Compare
  • Wishlist
  • D737
  • GS50
  • Standard
  • 1200
  • 5
  • 5
  • No
  • 21.5 x 34
  • 1347
  • $401.82
  • $442.00
  • ADD TO CART
  • On SaleD738
  • Compare
  • Wishlist
  • D738
  • GS20
  • Standard
  • 1300
  • 5
  • 5
  • No
  • 28 x 46
  • 1447
  • $420.00
  • $462.00
  • ADD TO CART
  • On SaleD739
  • Compare
  • Wishlist
  • D739
  • GS20
  • Standard
  • 1500
  • 5
  • 5
  • No
  • 28 x 46
  • 1651
  • $490.00
  • $539.00
  • ADD TO CART
  • On SaleD741
  • Compare
  • Wishlist
  • D741
  • GS20
  • Standard
  • 1700
  • 5
  • 7
  • No
  • 28 x 46
  • 1851
  • $579.09
  • $637.00
  • ADD TO CART
  • On SaleD745
  • Compare
  • Wishlist
  • D745
  • GS20
  • Standard
  • 2000
  • 5
  • 7
  • No
  • 28 x 46
  • 2151
  • $910.91
  • $1,002.00
  • ADD TO CART
  • On SaleD746
  • Compare
  • Wishlist
  • D746
  • GS20
  • Standard
  • 2400
  • 5
  • 9
  • No
  • 28 x 46
  • 2551
  • $1,121.82
  • $1,234.00
  • ADD TO CART
  • On SaleD750
  • Compare
  • Wishlist
  • D750
  • GS20
  • Standard
  • 3000
  • 5
  • 9
  • No
  • 28 x 46
  • 3151
  • $2,196.36
  • $2,416.00
  • ADD TO CART
  • On SaleD751
  • Compare
  • Wishlist
  • D751
  • DM3000
  • Magnetic
  • 3000
  • 5
  • 5
  • No
  • 28 x 46
  • 3120
  • $1,401.82
  • $1,542.00
  • ADD TO CART
  • On SaleD752
  • Compare
  • Wishlist
  • D752
  • DM4000
  • Magnetic
  • 4000
  • 5
  • 5
  • No
  • 28 x 46
  • 4120
  • $1,571.82
  • $1,729.00
  • ADD TO CART
  • On SaleD755
  • Compare
  • Wishlist
  • D755
  • DM5000
  • Magnetic
  • 5000
  • 5
  • 5
  • No
  • 28 x 46
  • 5120
  • $1,827.27
  • $2,010.00
  • ADD TO CART
  • On SaleD7559
  • Compare
  • Wishlist
  • D7559
  • DM10000
  • Magnetic
  • 10000
  • 5
  • 5
  • No
  • 28 x 46
  • 10120
  • $2,421.82
  • $2,664.00
  • ADD TO CART
