THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > C0645
Live Centre Set - Interchangeable Centring Tips
  • 1 of 1
Order Code: C064
Live Centre Set - Interchangeable Centring Tips
Taper (MT)
Nett Weight (kg)
Toolmaster high speed live centre set with interchangeable centres.
The body uses at the front a double row ball bearings and a thrust bearing with the main shaft supported at the other end with a needle roller bearing
  • Complete with 7 interchangeable points for various operations
  • Supplied in plastic blow-mould case
  • Body manufactured from SC45C tool steel hardened to HRC-60 and precision ground
  • Maximum speed 3000rpm
  • Concentric 0.0005mm

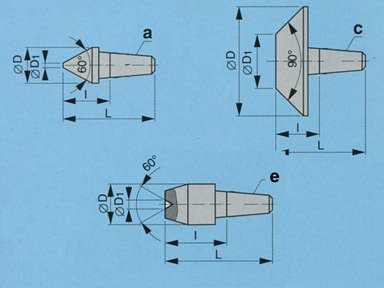

  • 2 x A Type D=12.5mm L=32mm I=16mm
  • 1 x A Type D=9.8mm L=38.6mm I=24mm
  • 1 x A Type D=8mm L=38.6mm I=20mm
  • 1 x A Type D=6mm L=38.6mm I=20mm
  • 1 x C Type D=32mm D1=10mm L=40mm I=22mm
  • 1 x E Type D=7.5mm L=32mm I=12mm
