THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > B118 (H-300HA-NC)

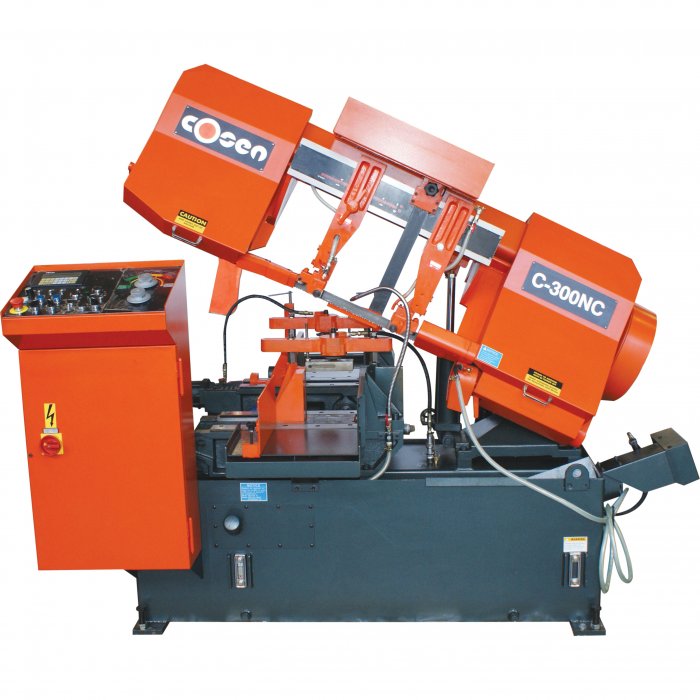

Automatic Hitch Feed Metal Cutting Band Saw
  • 1 of 22
  • 2 of 22
    Control Panel
  • 3 of 22
    Hitch Feeding System
  • 4 of 22
    Hydraulic Blade Tension Device with Gauge
  • 5 of 22
    Blade Tension Gauge
  • 6 of 22
    Bundle Cutting Clamp
  • 7 of 22
    Heavy Duty Gearbox Drive System
  • 8 of 22
    Ball Bearing Blade Guides with Carbide Pads
  • 9 of 22
    Rear View Left
  • 10 of 22
    Hydraulic Blade Tension Device Side View
  • 11 of 22
    Hydraulic Driven Swarf Conveyor
  • 12 of 22
    Rapid Approach Material Sensor
  • 13 of 22
    Light Direct Above Work Piece
  • 14 of 22
    Coolant Nozzle and Fixed Hose Direct Above Blade
  • 15 of 22
    Wire Wheel Blade Cleaning Brush
  • 16 of 22
    Coolant Pump and Tank
  • 17 of 22
    Hydraulic Oil Level Gauge
  • 18 of 22
    Dual Clamp
  • 19 of 22
    Rack Type Clamps
  • 20 of 22
    Rear View
  • 21 of 22
    Right View
  • 22 of 22
    Bundle Cutting
Order Code: B042
C-300NC - Automatic Hitch Feed Metal Cutting Band Saw (415V)
340 x 300mm (W x H) Rectangle Capacity
Operation Type
Fixed Head
Round @ 90º (mm)
Square @ 90º (mm)
Rectangle (W x H) @ 90º (mm)
340 x 300
Coolant System
Table Working Height (mm)
Cutting Head Beam Type
Cutting Head Beam Return
Auto-Hydraulic Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Vice Clamping Fixture
Bundle Cutting Fixture
Blade Steps / Speeds (m/min)
Variable 20-100
Blade Size (L x W x T) (mm)
3820 x 34 x 1.1
Motor Power (kW / hp)
3.75 / 5
Voltage / Amperage (V / amp)
Nett Weight (kg)
Manufactured in Taiwan

Automatic, hitch feed operation
Bundle cutting with nesting fixture

Smart NC-20 (SNC-20) control programmable to 20 different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
1. Automatic kerf compensation:= blade thickness for multiple indexing: this function allows and calculates the blade thickness into the programmed cut length so you achieve desired length required ( factory pre-set )
2. "Save-a-blade": to prevent blade tooth deformities, this function retracts the material back approx 3mm away from the blade preventing the blade teeth rubbing on the material on the return after completion of cut
3. Automatic shut-off for finished jobs or out of stock
4. Simplified self diagnostics error code display
5. LCD screen with keypad displaying the following blade speed, blade life & feed vice position display
bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
  • Idle wheel motion proximity switches shuts off machine if blade breaks or slips
  • Coolant system incorporating a wash down hose with trigger gun
  • Back-tilted saw frame for longer blade life
  • Inverter controlled infinitely variable blade speed 20-100mpm
  • Precision feed pressure & feed rate dual valve system for optimal performance in any material
  • Carbide and ball bearing blade guides provides superior accuracy and reduce friction for longer blade life
  • Bundle and single cutting mode switch
  • Automatic (work height) material sensor with rapid approach
  • Automatic hydraulic blade tensioning system
  • Synchronised power driven blade cleaning brush removes swarf from blade
  • Dual vice clamping providing burr free cut
  • Electrical and hydraulic safety interlock prevents machine starting vices securely clamped
  • Double retracting vice jaws ( feeding vice only ) reduces friction from jaws rubbing on material during the feeding process
  • Quick action hydraulic vice provides quicker set-up of jobs
  • Hydraulic swarf conveyor directs excess waste to side of machine
  • Vibration dampener system provides smoother cutting
Product Brochure
Blade Selection Chart
381.95 KB
Instruction Manual
25.56 MB
Trouble Shooting Guide
330.4 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
20.97 MB
