THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > B021 (BS-10LS)

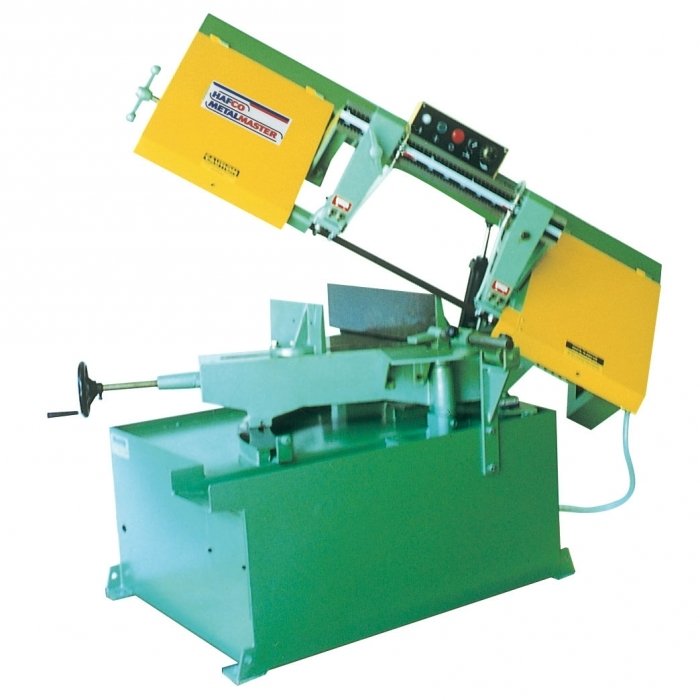

Swivel Head Metal Cutting Band Saw
  • 1 of 1
Order Code: B019
BS-10S - Swivel Head Metal Cutting Band Saw (415V)
400 x 230mm (W x H) Rectangle Capacity
Operation Type
Swivel Head
Round @ 90º (mm)
Round @ 45º (mm)
Square @ 90º (mm)
Square @ 45º (mm)
Rectangle (W x H) @ 90º (mm)
400 x 230
Rectangle (W x H) @ 45º (mm)
250 x 215
Coolant System
Cutting Head Beam Type
Cutting Head Beam Return
Manual Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Vice Clamping Fixture
Blade Steps / Speeds (m/min)
Blade Size (L x W x T) (mm)
3352 x 27 x 0.9
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
Nett Weight (kg)
  • 400 x 230mm (W x H) rectangular capacity
  • Swivel head for easy angle cutting without moving material saving on valuable floor space
  • Adjustable hydraulic feed cutting rate for multiple applications
  • Mitre cuts to 45º using swivel head via a single locking nut
  • Built-in coolant system for maximum cutting efficiency
  • Adjustable 4-speed pulley drive system enabling 25-40-51-75mpm cutting speeds
  • Limit switch stops machine when cut is complete
  • Electric control panel mounted on base for quick operation
  • Combination roller bearing & Carbide blade guides
  • Robust heavy duty cast Iron blade wheels
  • Large mitre scale - easy to read
  • Cast iron frame with heavy duty fabricated base
  • Adjustable blade roller guides provides accurate cutting
  • Adjustable length stop for repetition cutting
  • Wire wheel brush to clean swarf from blade
  • Heavy-duty gearbox drive
  • 1.5kW / 2hp 415V motor
Product Brochure
Blade Selection Chart
381.95 KB
Instruction Manual
26.44 MB
Trouble Shooting Guide
330.4 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
7.96 MB
