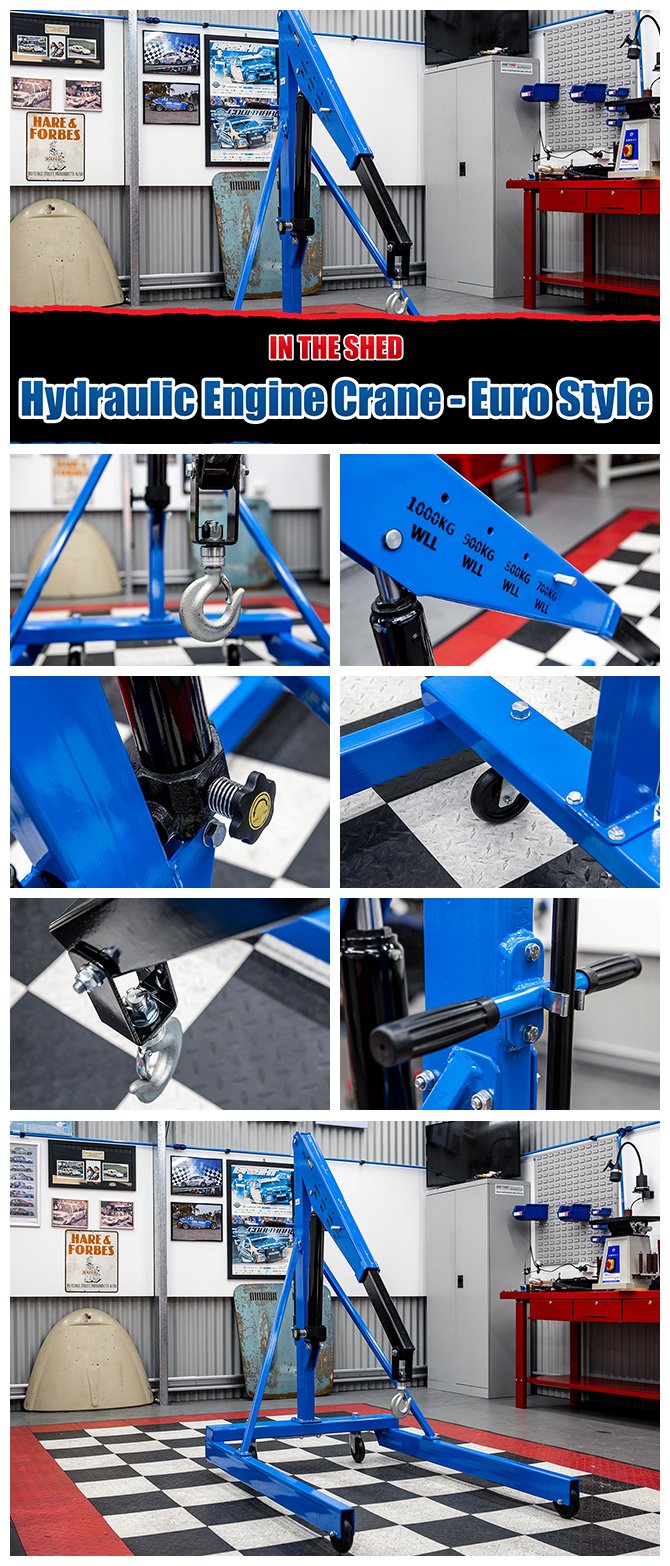

In The Shed: HAFCO HCH-1T Euro-style Hydraulic Engine Crane
Not only ideal for motors, the HAFCO HCH-1T Euro-style Hydraulic Engine Crane (Order Code: A357) can also be utilised to lift machines or other heavy items, making it a valuable piece of equipment for the workshop or warehouse.
Tested to 2 tonne, this industrial engine crane boasts a maximum loading/lifting capacity of 1 tonne. Its adjustable jib extends in four positions to the desired lifting capacity of: 700kg (2500mm maximum lifting height), 800kg, 900kg or 1000kg (2200mm maximum lifting height), and is secured by a single locking pin. At the end of the boom is a tilting and swivelling lifting hook. A 0-2500mm lifting range means an engine can be lifted clear out of the engine bay with little effort.
The HAFCO HCH-1T engine crane has a long-stroke lifting ram. Simple-to-use, heavy-duty hydraulic operation is via its single pump-action handle.
Robust, steel fabricated wide legs with structural supports offer great stability. They’re mounted on four large caster wheels which, along with a T-bar handle with grips on the rear of the hoist, allow for excellent mobility and manoeuvrability around the workshop.
