Pneumatic & Hydraulic Engine Crane
  • 1 of 13
  • 2 of 13
  • 3 of 13
    Shown Folded Up
  • 4 of 13
    Shown With Ram Fully Down
  • 5 of 13
    Shown Fully Up
  • 6 of 13
    Shown Fully Up and Extended
  • 7 of 13
    Rear View
  • 8 of 13
    Pheumatic Hydraulic Single Action Ram
  • 9 of 13
    Single Action Manual Pump
  • 10 of 13
    Single Action Pump With Release Valve
  • 11 of 13
    Pheumatic Hydraulic Pump
  • 12 of 13
    Pheumatic Connection
  • 13 of 13
    Operating Instructions
Order Code: A351
HPC-1T - Pneumatic & Hydraulic Engine Crane
Engine Crane
Engine Crane Capacity (Tonne)
Engine Crane Operation (Type)
Pneumatic & Hydraulic
Nett Weight (kg)
This pneumatic & hydraulic operation engine crane has a 8 tonne long stroke lifting ram and single acting pump with a maximum load capacity of 1000kg. It quickly folds up designed to save space in the workshop. Very simple to use pneumatic over hydraulic or just manual hydraulic operation via a single acting pump equipped with automatic safety valve to control the lowering speed.

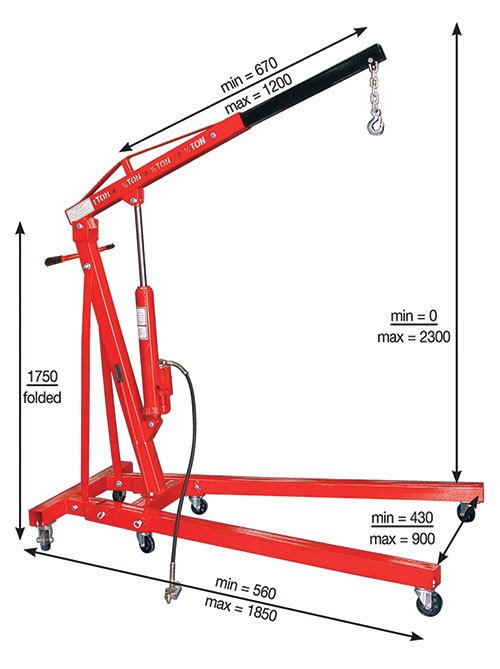

The jib extends to the desired lifting capacity of 250kg, 500kg, 750kg or 1000kg secured by a single locking pin. Mounted on 6 swivel castor wheels & T-bar handle for excellent manoeuvrability around the workshop. The lifting range is 0-2300mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
  • Ideal for automotive, light engineering and general workshop
  • Adjustable boom in four positions for lifting
  • Outrigger legs easily folded up for transport or storage
  • Six cast steel swivel castor wheels allow easy mobility
  • Pneumatic & hydraulic operation
  • Single action - piston 8 tonne long stroke hydraulic lifting ram
  • T-bar handle with grips on rear of hoist allows greater manoeuvrability control
  • Supplied with a short lifting chain & hook with safety latch
  • Tested to 2 Tonne
