HAFCO WOODMASTERBP-360

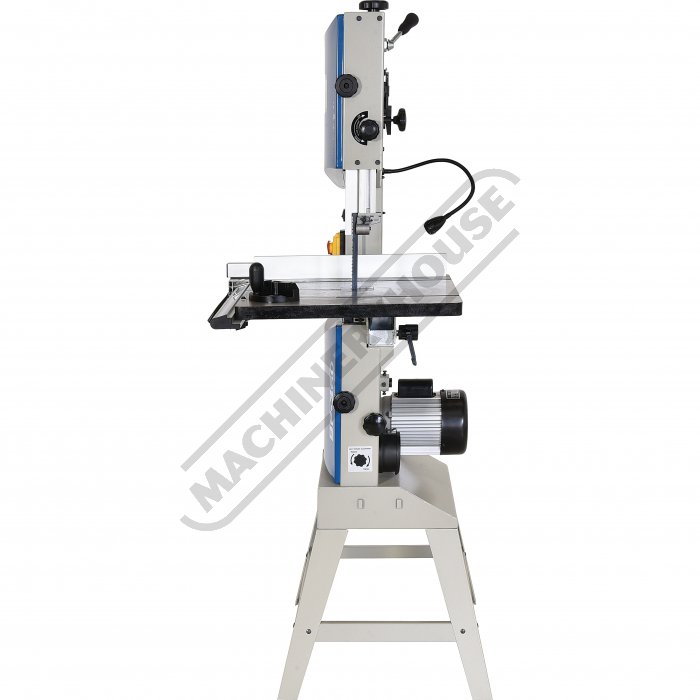

Wood Band Saw
  • 1 of 21
    W955
  • 2 of 21

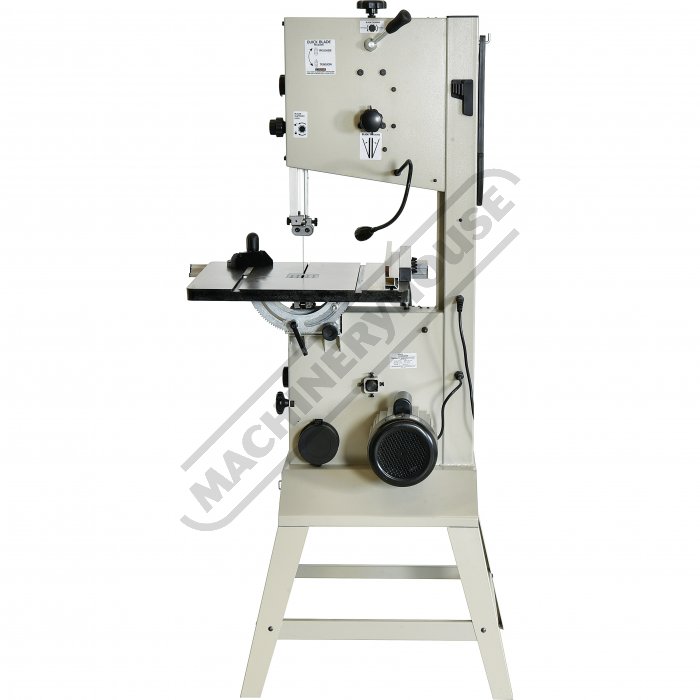

    Rear View
  • 3 of 21

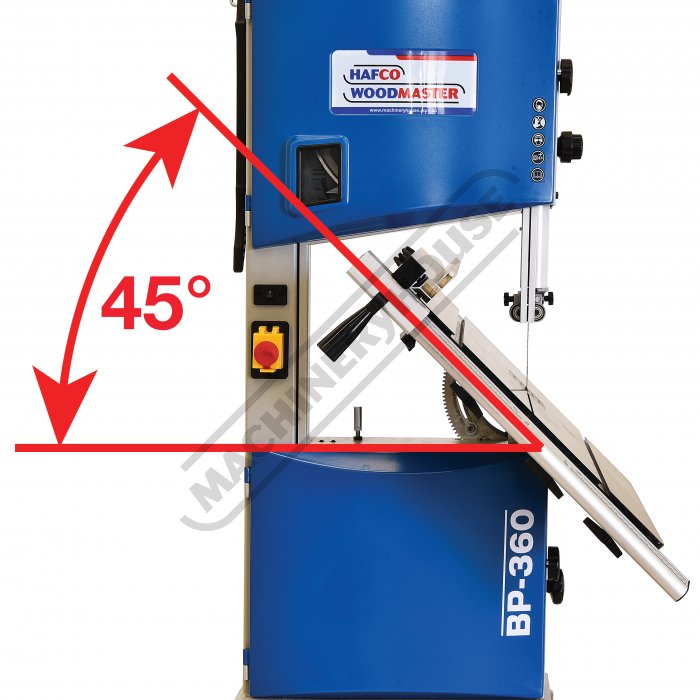

    Cast Iron Table Tilts to 45 Degrees
  • 4 of 21

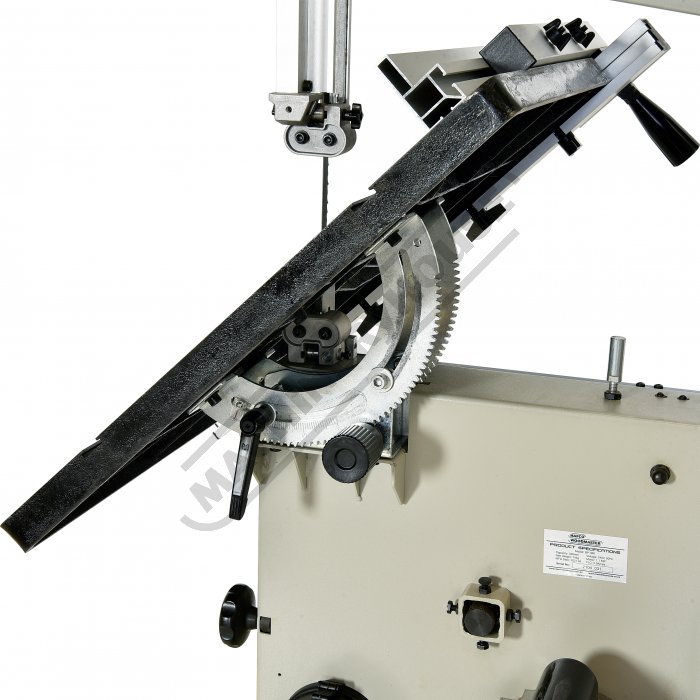

    Tilt Table Adjustment
  • 5 of 21

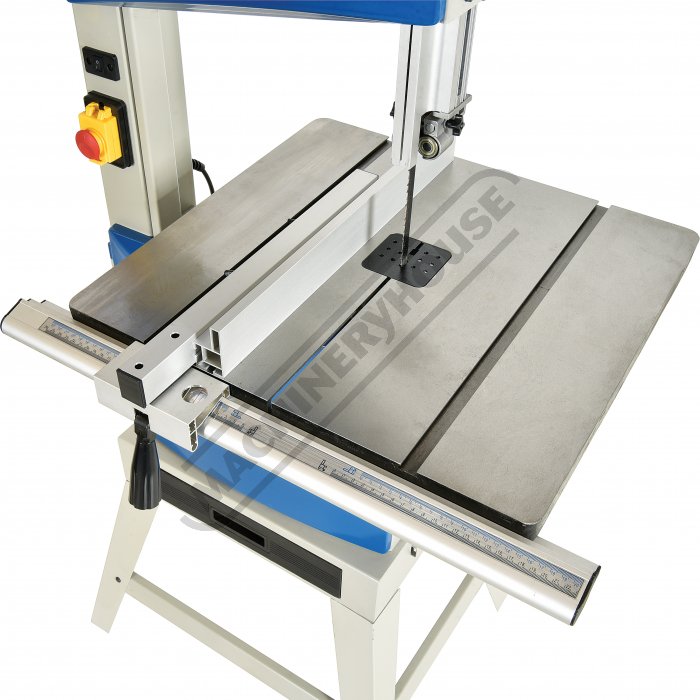

    Sliding Rip Fence
  • 6 of 21

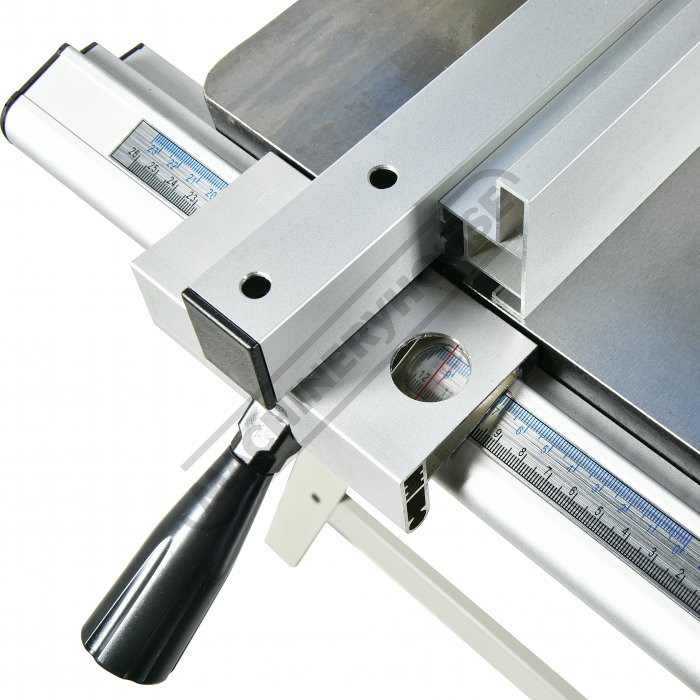

    Quick Action Lock
  • 7 of 21
    Work Light
  • 8 of 21
    Blade Guard Micro Switch
  • 9 of 21

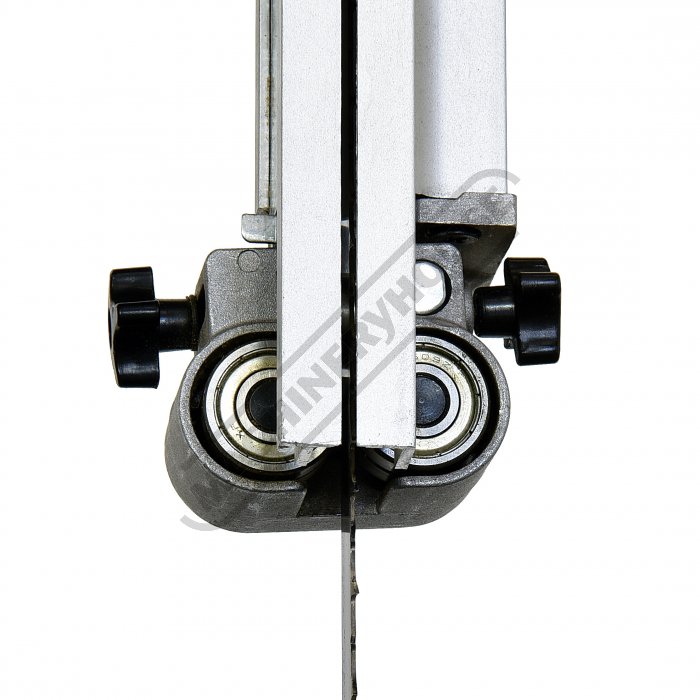

    Ball Bearing Blade Guides
  • 10 of 21

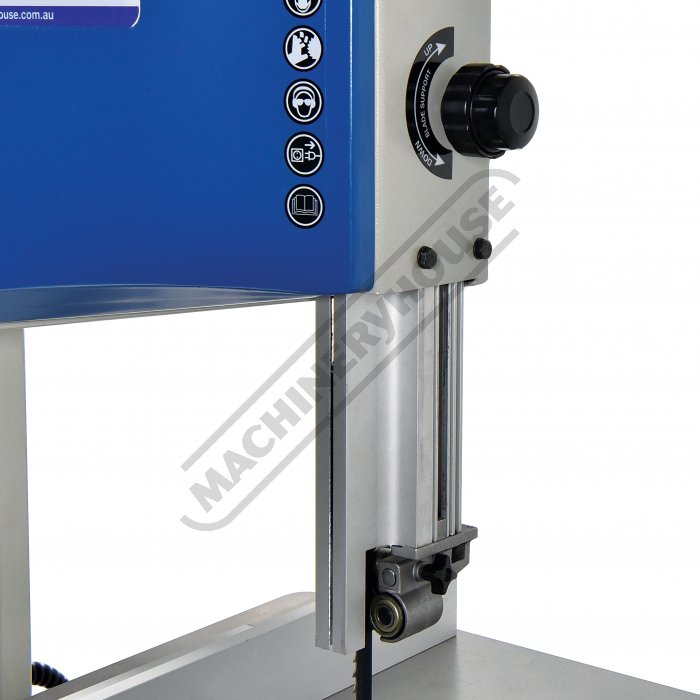

    Height Adjustment Knob
  • 11 of 21
    Cast Iron Table
  • 12 of 21
    Bottom Belt Tension Knob and Mitre Guide Holder
  • 13 of 21
    Mitre Guide
  • 14 of 21

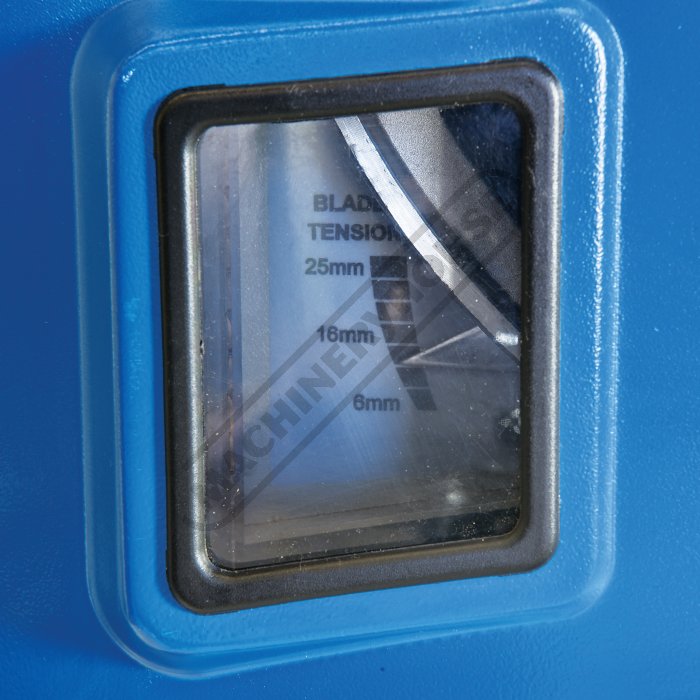

    Blade Tension Sight Indicator
  • 15 of 21

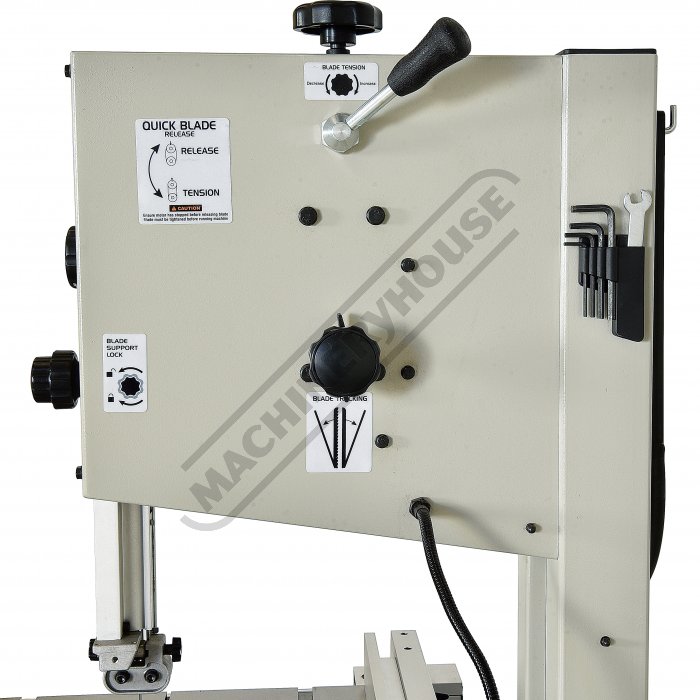

    Blade Tension Adjustment
  • 16 of 21

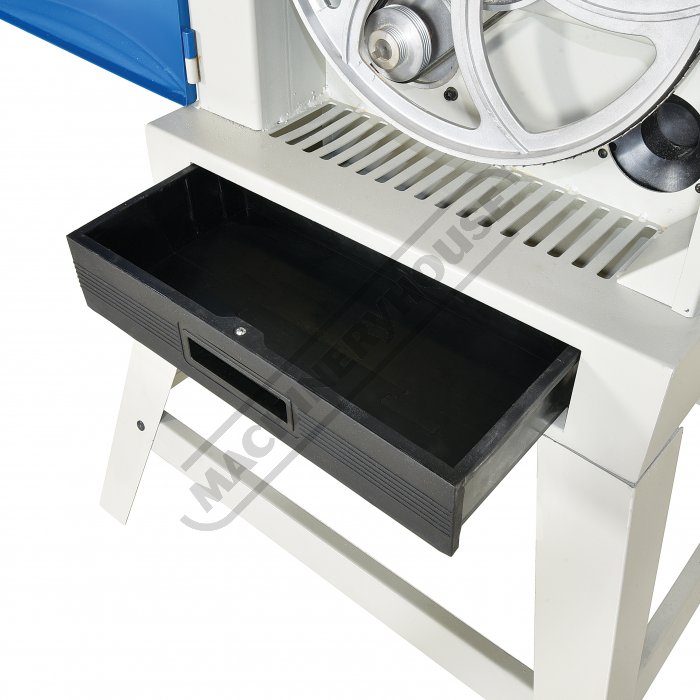

    Slide Out Dust Compartment Drawer
  • 17 of 21
    Dust Port and Motor
  • 18 of 21
    Blade Tracking Knob
  • 19 of 21

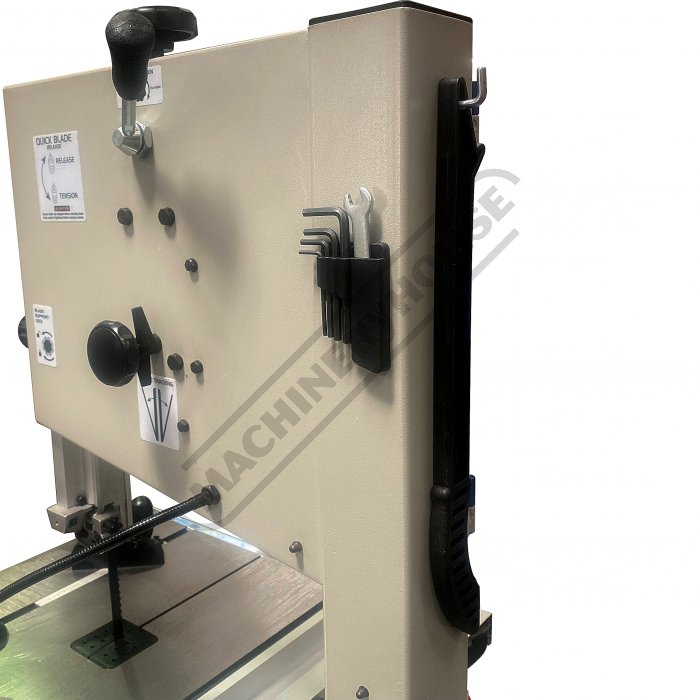

    Push Stick and Tools
  • 20 of 21

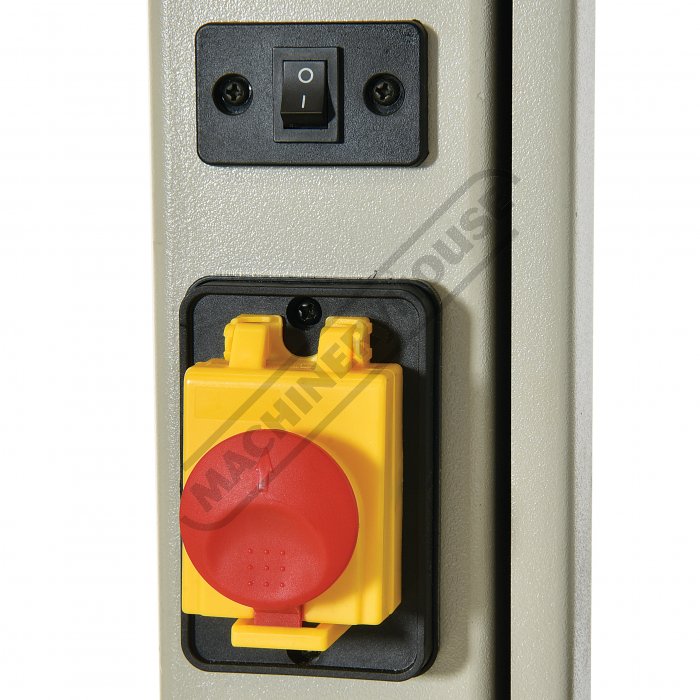

    Safety Magnetic Switch and Light Switch
  • 21 of 21

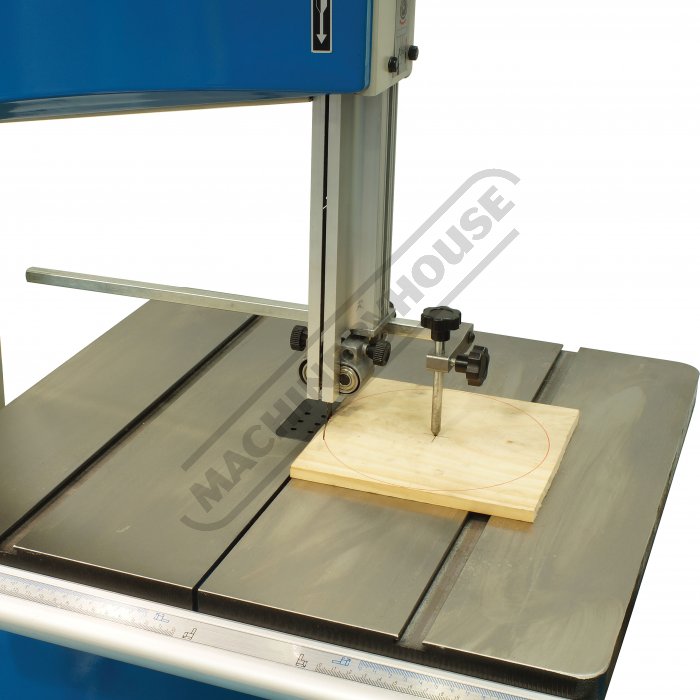

    Shown with Optional Circle Cutting Attachment
Order Code: W955
BP-360 - Wood Band Saw (240V)
340mm Throat x 225mm Height Capacity
HAFCO WOODMASTER
ORDER CODE
W955
Model
BP-360
Throat Capacity
340mm
Wheel Diameter
Ø360mm
Height Capacity
225mm
Table Size
545 x 515mm
Frame Type
Steel
Motor Power
1.1kW / 1.5hp
Motor Voltage
240V
Blade Code
W955A,W955B, W955F
Blade Size (L x W x T)
2560 x 16 x 0.65mm

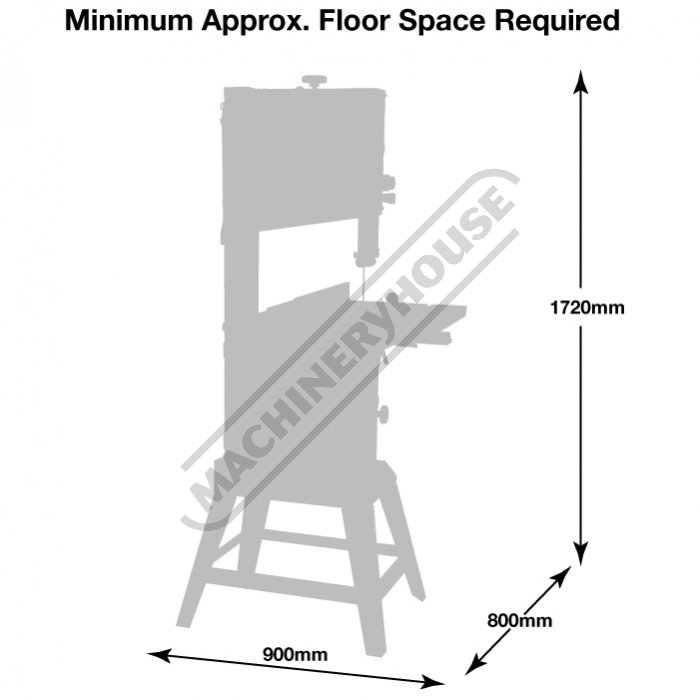

Floor Space (W x D x H)
920 x 800 x 1710mm
Shipping Dimensions (L x W x H)
1350 x 575 x 440mm
Weight (nett)
82kg
Features
  • 1100W / 1.5hp 240V induction motor
  • Ball bearing blade guides to ensure smooth operation
  • Safety magnetic switch with dust cover and emergency stop
  • Hinged blade guards with safety micro-switches
  • LED work light on flexible arm
  • Cast iron table tilts 0-45° with mitre guide
  • Rack & pinion table tilt mechanism
  • Quick release blade tension lever
  • Geared rack on cutting height adjustment
  • Window in top blade guard for blade tension indicator

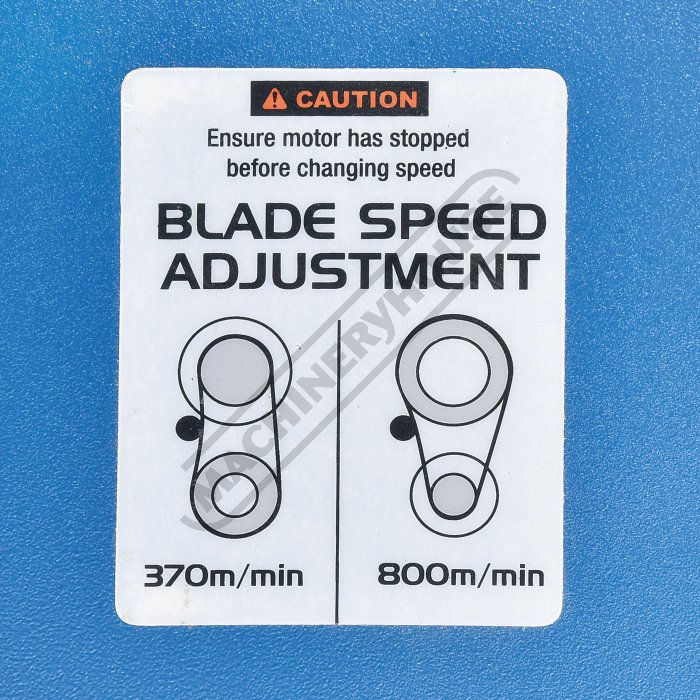

  • 2 blade speeds - 370 & 800m/min
  • Aluminium rip fence with quick action lock

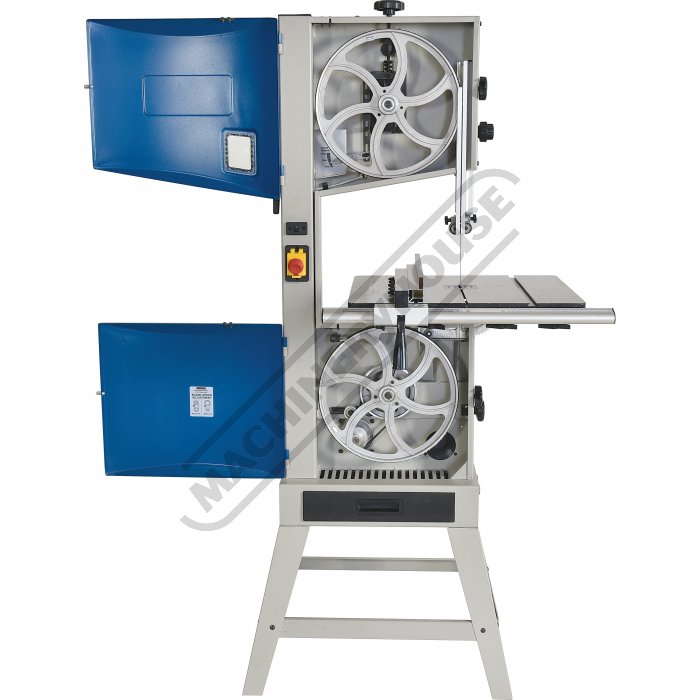

  • Hinged top & bottom blade guard doors enables quick blade replacement
  • Steel stand with slide dust compartment drawer
  • 100mm dust collector port


Includes
  • Push Stick
  • Allen Keys
  • Spanner
