THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > W851 (Plana 3.1c)
SCHEPPACHPlana 3.0
Planer & Thicknesser Combination
  • 1 of 5
    W850
  • 2 of 5
    Shown Thicknessing
  • 3 of 5
    Shown Planing
  • 4 of 5
    Shown Planing b
  • 5 of 5
    Max Timber Thickness
Order Code: W850
Plana 3.0 - Planer & Thicknesser Combination (240V)
260mm Wide Planer Capacity
250 x 210mm (W x H) Thicknesser Capacity
SCHEPPACH
ORDER CODE
W850
MODEL
Plana 3.0
Planer Capacity (mm)
260
Table Length - Planer (mm)
1050
Table Height - Planer (mm)
680
Thicknesser Capacity (mm)
250 x 210
Feed Speed (m/min)
5
Motor Power (kW / hp)
2.25 / 3
Voltage / Amperage (V / amp)
240 / 15
Floor Space (W x D x H) (mm)
1300 x 730 x 1000
Shipping Dimensions (L x W x H) (mm)
1100 x 620 x 1050
Nett Weight (kg)
180
Description
Whether stationary or mobile: the Plana 3.0 is the most efficient and cost effective planer & thicknesser available for the professional user, serious home wood workers and educational workshops.

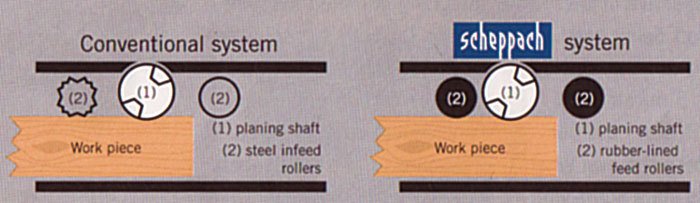

Sheppach's unique patented feed and cutting system, which ensures the best possible finish irrespective of the timbers used. Feed roller indentation marks are totally eliminated and the moderately set feed speed of 5m/min combined with 13,000 cuts per minute.

These special features are enhanced by superb power and stability.

Cast iron tables and powerful motor supply add to the outstanding performance of this robust classic machine.
Adjustment of the thickness table height can be set to within 1/10th mm allowing for a "super-fine" final finish. Perfect when you are working on wild grain timbers!
Whether you are looking for the best working capacity combined with best quality finish or economical price, you get it all with the new Sheppach Plana 3.0
Features
  • German design & technology
  • Heavy duty machines CAST IRON tables (easily and accurately adjustable)
  • Unique vulcanised rubber feed system on the thickness mode
  • 260mm planer width capacity
  • 250 x 210mm thicknesser capacity
  • 100mm dust collector port
  • 3mm stock removal
  • Powerful 3HP motor for constant feed in both hard and soft timbers
  • Large professional planing fence
  • Cast Iron thickness table adjustment to 1/10mm for super fine finishing
