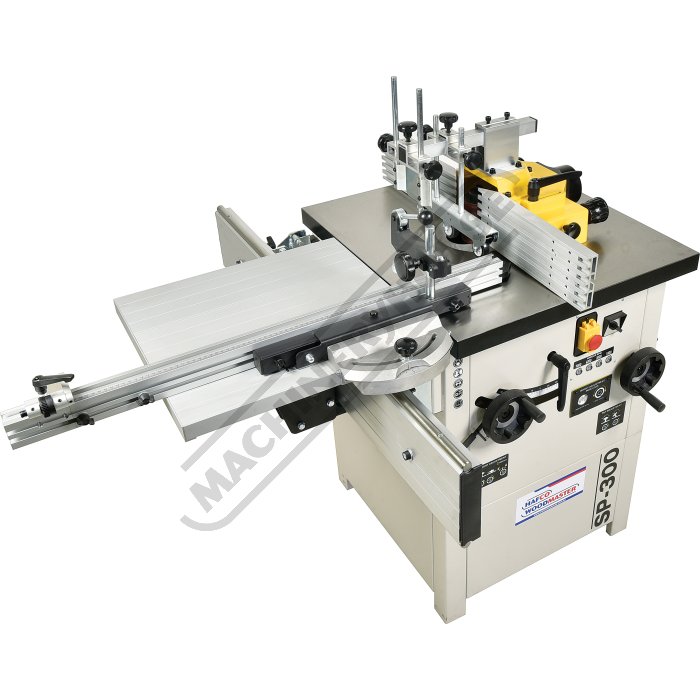

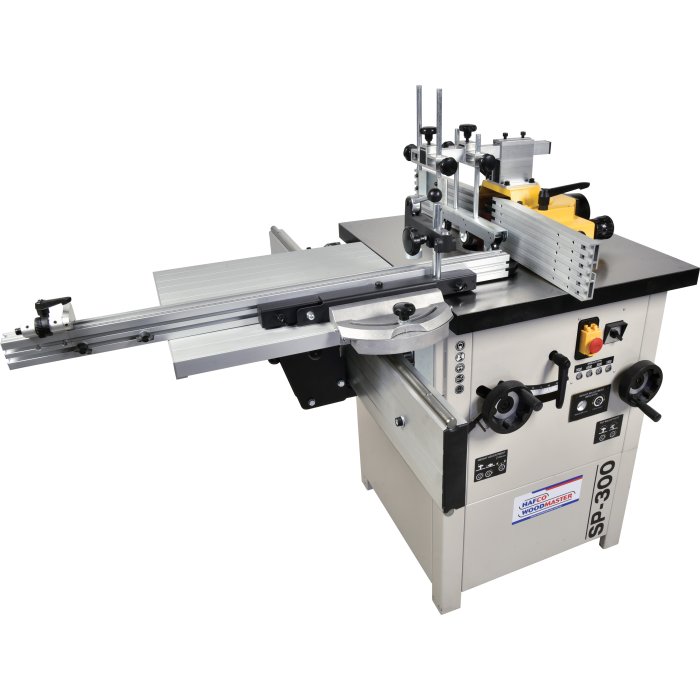

HAFCO WOODMASTERSP-300
Spindle Moulder
  • 1 of 7
    W640
  • 2 of 7

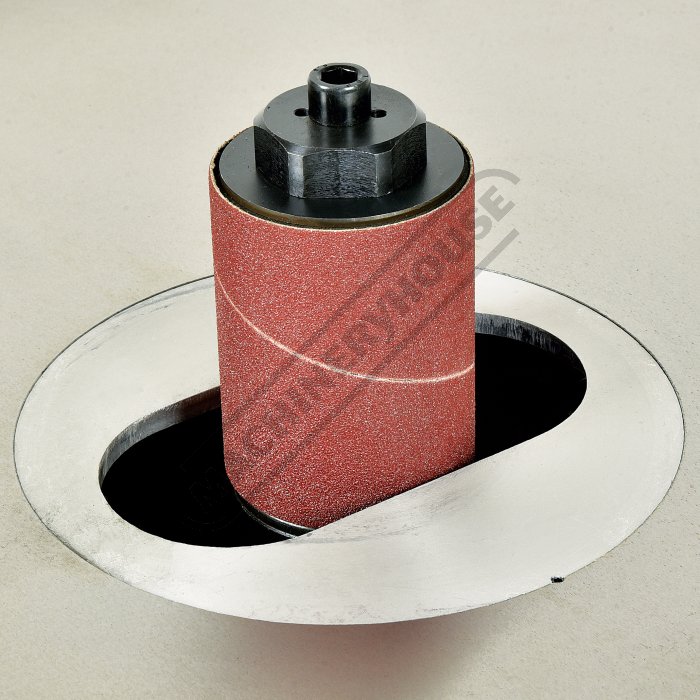

    Sanding Attachment
  • 3 of 7

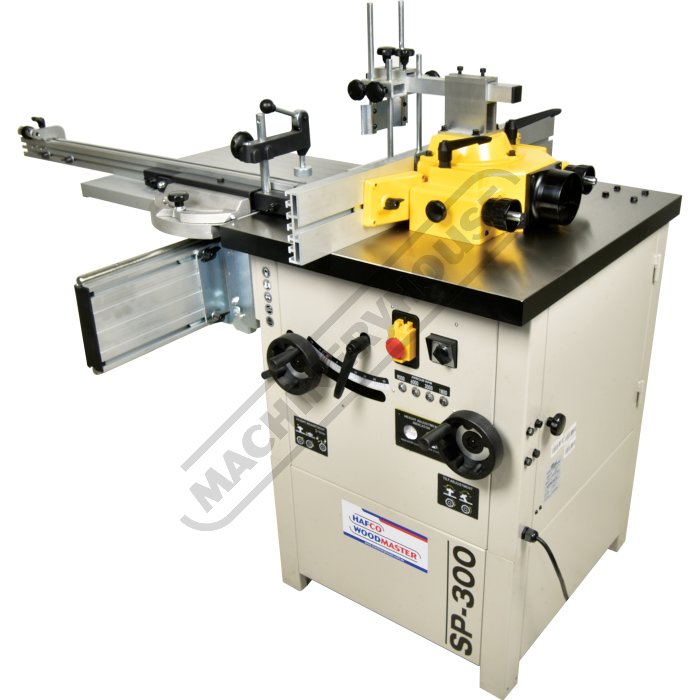

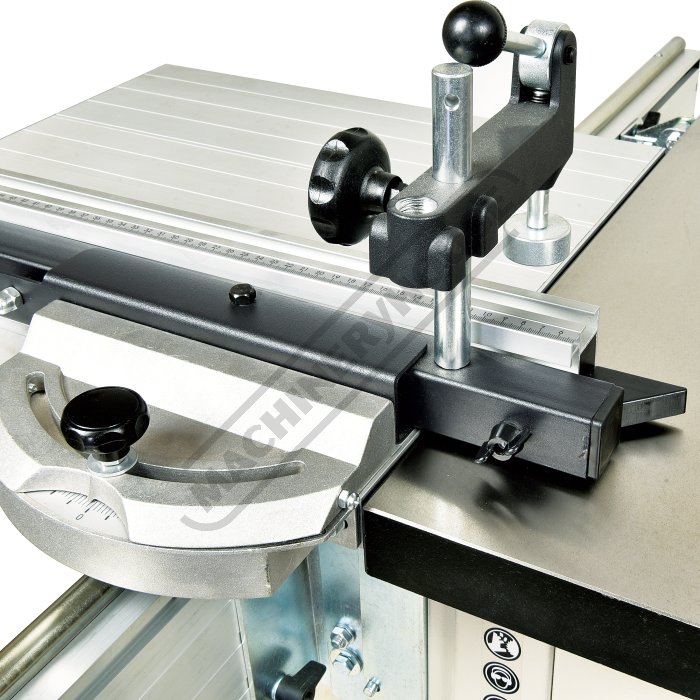

    Sliding Table with Mitre Guide & Top Clamp
  • 4 of 7

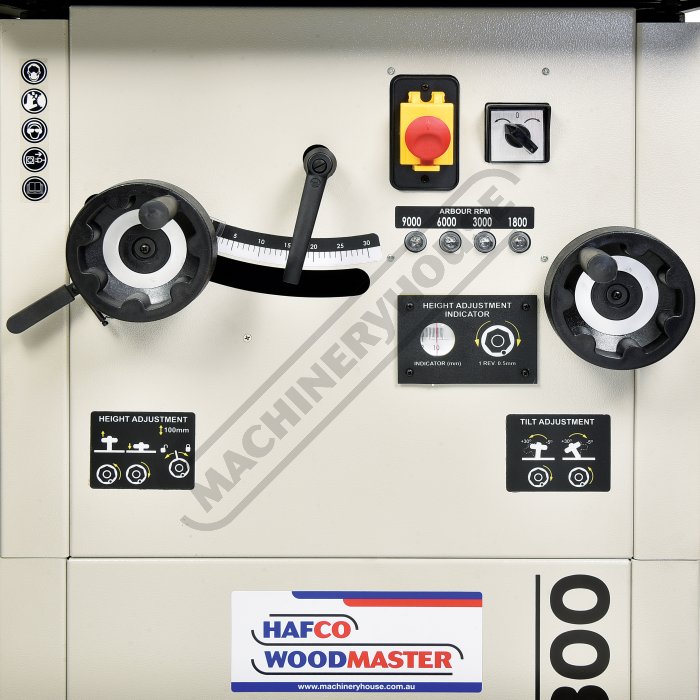

    Spindle Adjustment Controls
  • 5 of 7

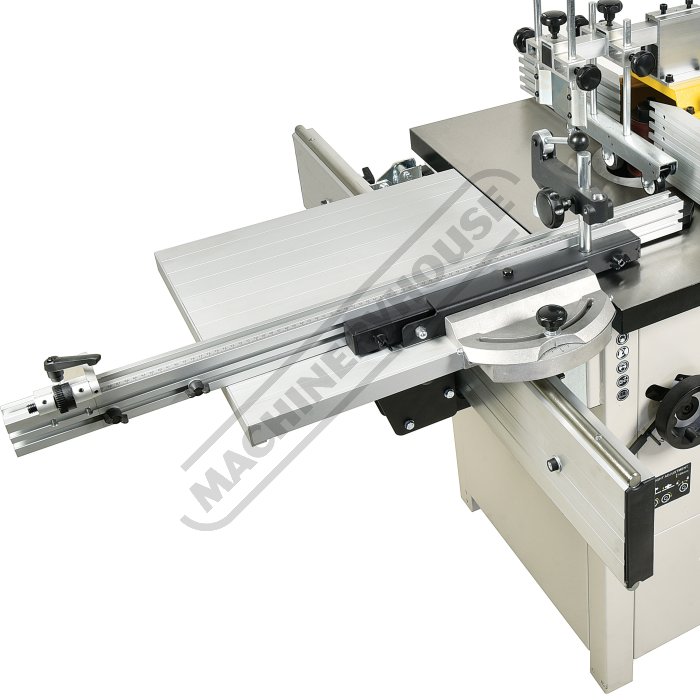

    Includes Sliding Table
  • 6 of 7

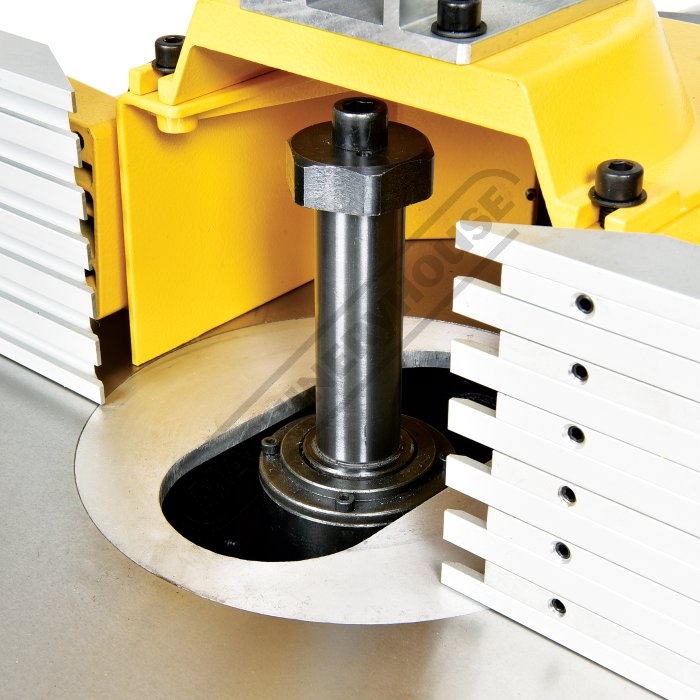

    30mm Tilting Spindle
  • 7 of 7

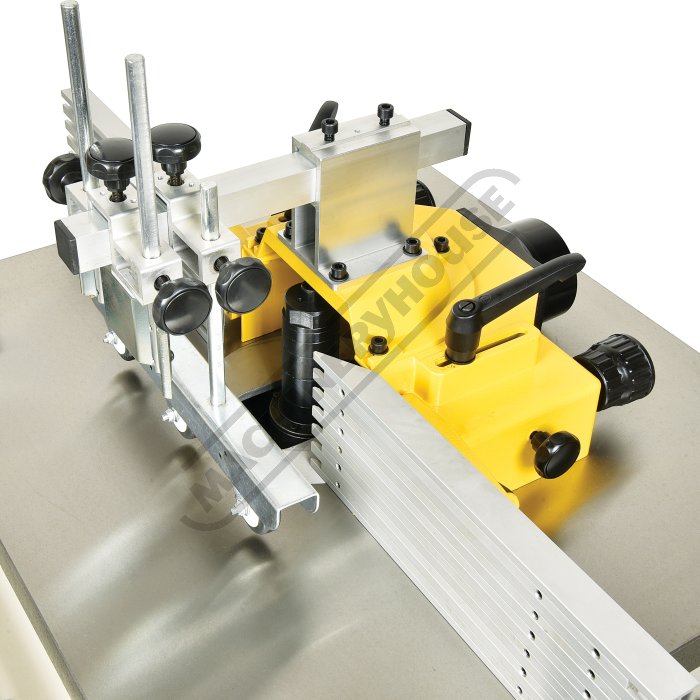

    Cutter Guard with Dust Chute
Order Code: W640
SP-300 - Spindle Moulder (240V)
710 x 640mm Table Size
HAFCO WOODMASTER
ORDER CODE
W640
Model
SP-300
Table Size
710 x 640mm
Spindle Speeds (rpm)
1800,3000,6000,9000
Spindle Diameter
30mm
Motor Power
2.8kW / 3.75hp
Voltage
240V - 15 amp
Floor Space (W x D x H)
1230 x 1500 x 1300mm
Shipping Dimensions (L x W x H)
1210 x 700 x 1130mm
Weight (nett)
221kg
Features
  • Tilting arbor to 30º for various profiles
  • 710 x 640mm cast iron work table
  • Cast cutter guard with Ø100mm dust collector port
  • 30mm spindle
  • 90mm spindle travel
  • 200mm spindle length
  • Rise and fall adjustment and spindle lock for easy cutter change
  • 4 spindle speeds with FWD/REV 1800, 3000, 6000, 9000rpm
  • 900mm table height
  • Includes sliding table with mitre, micro adjustment aluminium fence and top clamp
  • 2.8kW / 3.75hp 15Amp 240V motor
Includes
  • Sliding table
  • Mitre guide
  • Cutter guard
Optional Accessories
  • 30mm Cutter Head with Blades (W647)
