THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > W952 (BP-310)

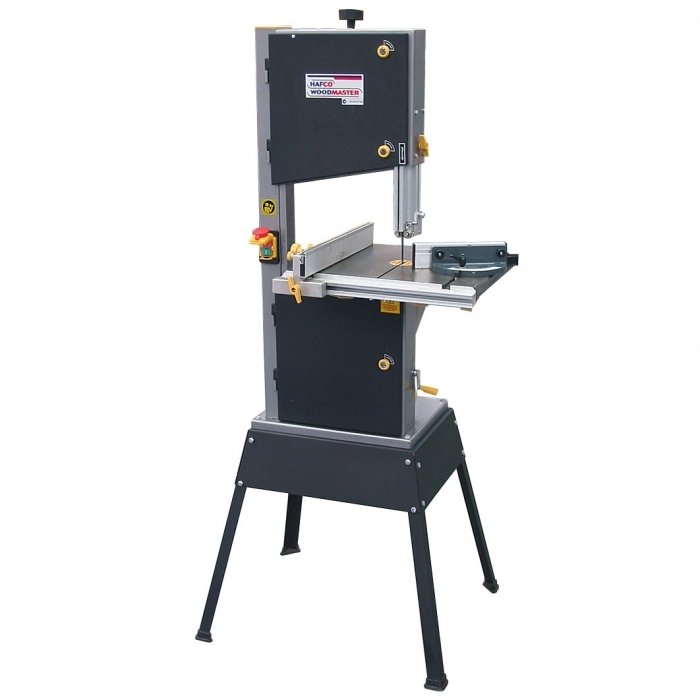

HAFCO WOODMASTERBP-300
Wood Band Saw
  • 1 of 8
    W420
  • 2 of 8
    Mitre Guide
  • 3 of 8
    Rip Fence
  • 4 of 8
    Lock
  • 5 of 8
    Chute Bottom
  • 6 of 8
    Blade Guides
  • 7 of 8
    Table Tilt
  • 8 of 8
    Switch
Order Code: W420
BP-300 - Wood Band Saw (240V)
750W
HAFCO WOODMASTER
ORDER CODE
W420
MODEL
BP-300
Throat Capacity (mm)
305
Wheel Diameter (Ø) (mm)
310
Height Capacity (mm)
180
Table Size (mm)
480 x 400
Frame Type
Steel
Motor Power (kW / hp)
0.75 / 1
Voltage / Amperage (V / amp)
240 / 10
Blade Code (Suits)
W420A, W420B
Blade Size (L x W x T) (mm)
2240 x 12.5 x 0.65
Nett Weight (kg)
65
Description
Model BP-300 Wood Band Saw:
Features
  • Powerful 750W / 1hp 240V Aluminium motor
  • Safety magnetic switch with emergency stop
  • Micro-switch protection on hinged blade guard doors
  • 2 x blade speeds via mechanical handwheel system
  • Ball bearing blade guides mounted on a solid aluminium block
  • Aluminium rip fence with quick action lock
  • Large 480 x 400mm cast iron table
  • Cast iron table tilts to 45°
  • Large height capacity 180mm
  • 100mm dust collector port
  • Safety locks on doors
  • Wide foot-print study stand
  • Heavy duty adjustable aluminium fence
  • Mitre guide & fence can be used on either side of blade
Includes
  • Includes:Stand ;Mitre guide ;Heavy Duty Rip fence
