HAFCO WOODMASTERAP-12
Two Stage Air Filtration Unit
  • 1 of 10
    W326
  • 2 of 10
    Rear View
  • 3 of 10
    Control Panel
  • 4 of 10
    5 Micron Outer Paper Filter
  • 5 of 10
    1 Micron Inner Fabric Bag Filter
  • 6 of 10
    Air Outlet
  • 7 of 10
    Shown with Filters Removed
  • 8 of 10

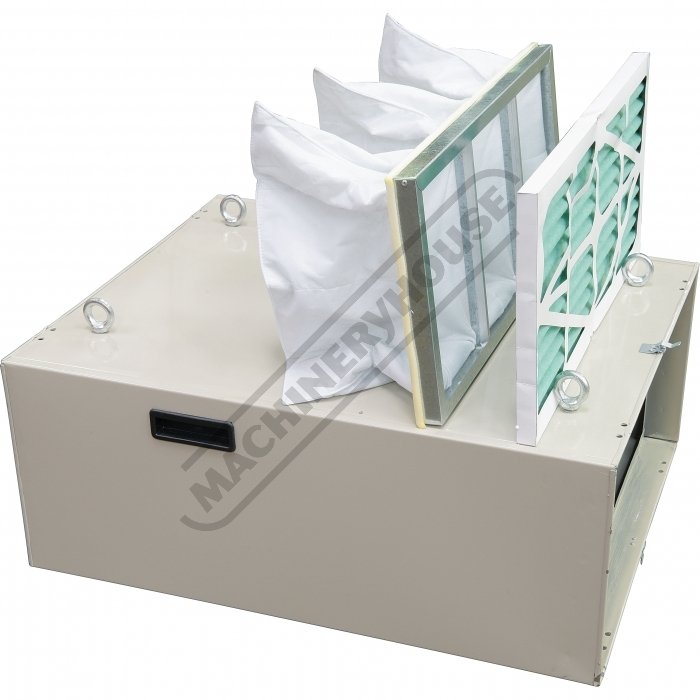

    Shown with Filter Out
  • 9 of 10
    Remote Control
  • 10 of 10
    Parts Included
Order Code: W326
AP-12 - Two Stage Air Filtration Unit (240V)
1044cfm Air Flow Capacity
1 & 5 Micron Filtration System
HAFCO WOODMASTER
ORDER CODE
W326
Model
AP-12
Filtration Type
2 Stage
Filtration Particle
1 & 5 Micron
Air Flow Capacity
1044cfm
Noise Level
69dB, 67db, 62db
Room Volume Efficiency
300m³
Motor Power
150W / 0.2hp
Motor Voltage
240V
Floor Space (W x D x H)
610 x 770 x 350mm
Shipping Dimensions (L x W x H)
830 x 680 x 380mm
Weight (nett)
25kg
Description
With a powerful 150W motor the AP-12 is great for home or commercial workshops. The air passes through a 2 stage filter system, with the pleated pre-filter firstly captures 98% of all particles at 5 microns in size and 85% of all particles 1 micron in size when it passes through the second stage filter.

The remote control unit has three settings for the motor speed (High-1044CFM @ 69db, Medium-702CFM @ 67db, Low-556CFM @ 62db) and three different time settings of 1 hour, 2 hours and 4 hours, which can be used to clear the workshop after work has finished for the day.
Features
  • 1044cfm air flow capacity
  • Remote control ON/OFF
  • Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
  • Quiet running with 3 x motor speeds (High-1044CFM @ 69db, Medium-702CFM @ 67db, Low-556CFM @ 62db)
  • 3 x timer settings (1Hr, 2Hr , 4Hr)
  • Easy removal to clean filter element
  • Designed for ceiling mount

Includes
  • Flange brackets for wall or ceiling mounting
  • Eye bolts for mounting to ceiling rafters
  • Rubber feet for placing unit on workbench
