HAFCO WOODMASTERCD-2A
Industrial Dust & Cyclone Separator Collector
  • 1 of 15
    W318
  • 2 of 15
    Front View
  • 3 of 15
    Right View
  • 4 of 15
    Rear View
  • 5 of 15
    Quick Release Waste Bin
  • 6 of 15
    Wood Chip Waste View Window
  • 7 of 15
    3xQuick Action Release Latches on Waste Bin
  • 8 of 15

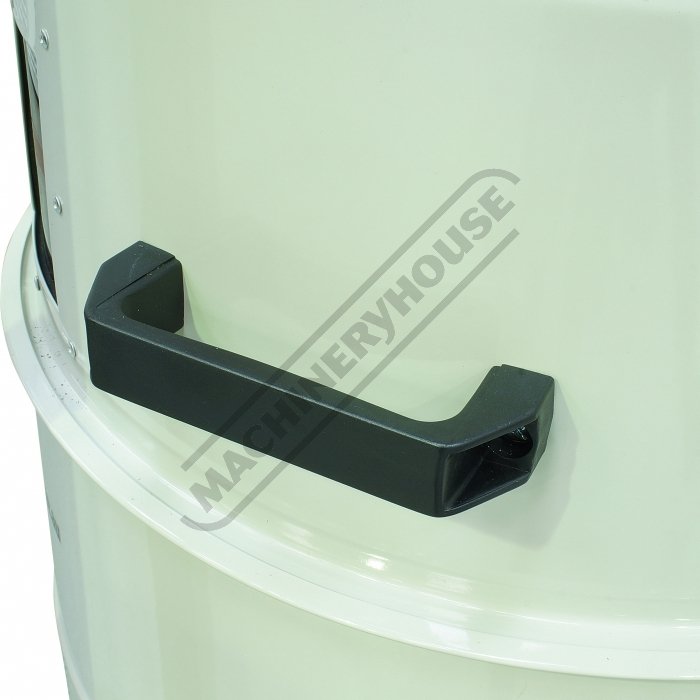

    Waste Bin Handle
  • 9 of 15
    Dual Inlets
  • 10 of 15
    Rotary Hand Wheel For Filter Cleaning
  • 11 of 15
    On Off Switch with Emergency Stop
  • 12 of 15
    Quick Action Lock Release Clamp
  • 13 of 15
    2Hp 240V 15Amp Induction Motor
  • 14 of 15
    4xSwivel Caster Wheels
  • 15 of 15
    4xSwivel Caster Wheels on Waste Bin
Order Code: W318
CD-2A - Industrial Dust & Cyclone Separator Collector (240V)
1200cfm - LPHV System
HAFCO WOODMASTER
ORDER CODE
W318
Model
CD-2A
Type
Dust Collector System
CFM
1200cfm
LPHV - Low Pressure - High Volume System
Inlets No./Size Ø
2 x Ø100mm
Motor Power
1.5kW / 2hp
Voltage
240V - 15 amp
Shipping Dimensions (L x W x H)
1120 x 950 x 720mm
Weight (nett)
77kg
Description
Manufactured in Taiwan

LPHV = Low Pressure High Volume System

The wood dust and shavings of LPHV extractor are sucked through by the impeller fan blade, the heavy wood chips fall straight below in the steel canister waste bin and the finer dust continues through the blade into the next section passing through a 1 micron filtration cartridge where the air is exhausted and then fine dust falls into the lower plastic collection bag.

This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing & separating bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors.
Features
  • Portable 2 stage 1200cfm cyclone dust collector on wheels
  • Separates 99.91% dust from air before the cartridge filter preventing the canister filter from clogging
  • 1 micron pleated canister filter
  • 113 litre steel drum capacity
  • Dual Ø100mm inlets
  • 1.5kW / 2hp 240V motor
  • Steel drum with castor wheels for easy dust disposal
  • Built-in plastic bag holding system, fits in steel drum
  • Quick drum release lever for easy drum removal
  • Quick-action release clamp on dust collection bag
  • Filter surface area: 3.8 M2
  • MADE IN TAIWAN
Product Brochure

Instruction Manual
3.34 MB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • CD-2A (W318)
ORDER CODE
Model
Type
CFM
LPHV - Low Pressure - High Volume System
HPLV - High Pressure - Low Volume System
Inlets No./Size Ø
Outlets No./Size Ø
Motor Power
Voltage
Floor Space (W x D x H)
Shipping Dimensions (L x W x H)
Weight (nett)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts List
747.91 KB
