STRONG HAND TOOLSUDL365
Corner Clamp
  • 1 of 2
    W1019
  • 2 of 2
    Shown With Optional Pipe Plier
Order Code: W1019
UDL365 - Corner Clamp
50mm Clamping Capacity
76mm throat
STRONG HAND TOOLS
ORDER CODE
W1019
MODEL
UDL365
Type
Corner Clamp

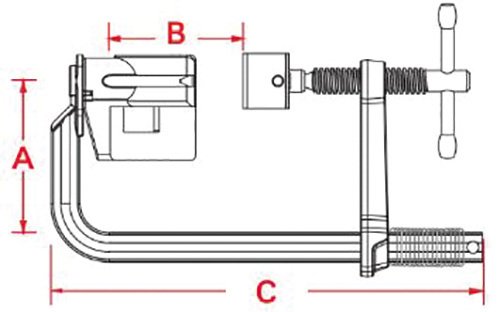

Clamping Capacity
50mm (B)
Throat Depth (mm)
76mm (A)
Over all Length
241mm (C)
Nett Weight (kg)
0.8
Description
Fast, precise and affordable clamping tools for corners and T-joints.
Features
  • A quick way to hold work pieces at 90°
  • Capable of holding a 3-axis workpiece by adding a Pipe Pliers
  • Wide opening offers unobstructed welding access
Includes
  • 1 x Corner clamp

Product Brochure
