TECMENTEC-1G
Auto Darken Welding Helmet
  • 1 of 10
    W009
  • 2 of 10
    Front View
  • 3 of 10
    Left View
  • 4 of 10
    Side View
  • 5 of 10
    Top View
  • 6 of 10
    Rear View
  • 7 of 10
    Angle Adjustment
  • 8 of 10
    Adjustable Shade Dial with Grind Mode
  • 9 of 10
    Sensitivity and Delay Switches
  • 10 of 10
    Includes additional Lens Cover and Sweatband
Order Code: W009
TEC-1G - Auto Darken Welding Helmet
9-13 Shade
With Grinding Function
TECMEN
ORDER CODE
W009
Model
TEC-1G
Viewing Area
98 x 44mm
Cartridge Size
110 x 90 x 9mm
Arc Sensors
2
Light State
DIN 3.5
Shade
DIN 9 ~ 13
Shade Control
External, Variable Shade
Power On/off
Fully Automatic
Sensitivity Control
High / Low Switch
UV/IR Protection
Up to DIN16 at all times
Helmet Power Supply
Solar Cell, No Battery

Change Required
Switching Time Light To Dark
1/16,000 Second
Delay Time Dark To Light
(Fast 0.25-0.30s)

(Slow 0.65-0.80s)
TIG Rated Minimum
10 Amps
Grinding Function
Operating Temperature
-10ºC ~ +55ºC
Storing Temperature
-20ºC ~ +70ºC
Helmet Material
High Impact

Resistant Nylon
Total Weight
435g
Application Range
Stick, Mig, Tig, Arc Welding,

Plasma & Grinding
Standard
AS/NZS 1338.1.1992
Features
  • Suitable for Stick, MIG, TIG Welders, Plasma Cutters & Grinding
  • Adjustable shade from 9 to 13 with grinding function
  • Viewing area 98 x 44mm
  • Automatic activation in 1/16,000 second
  • High/low sensitivity & slow /fast delay switch
  • Protects from UV and IR radiation
  • Light weight high impact resistance nylon
  • AS/NZS 1338.1.1992
Includes
  • Includes 1 x additional lens cover & sweatband

Product Brochure

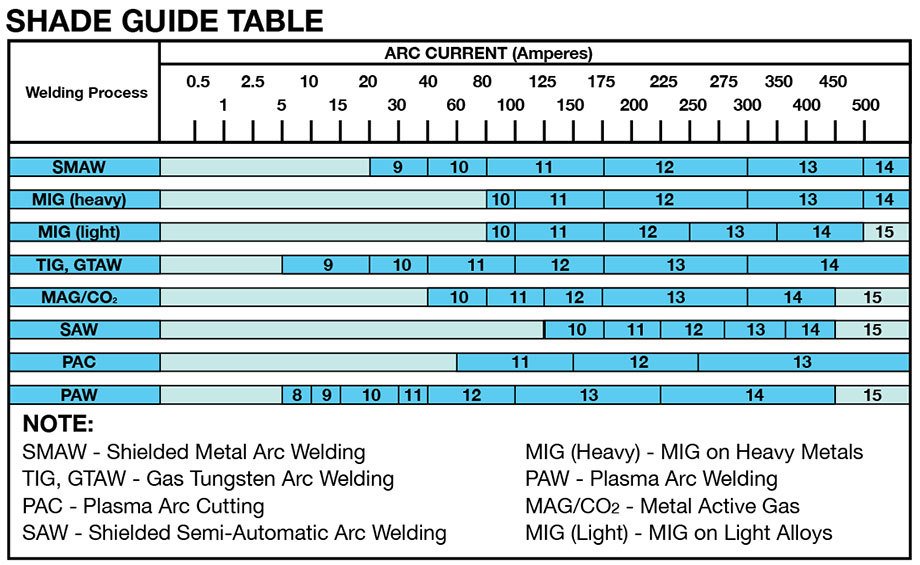

Shade Guide Table
24.09 KB
Welding Helmet FAQ
68.69 KB
