THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > W009 (TEC-1G)
TECMENTEC-I
Auto Darken Welding Helmet
  • 1 of 9
    W008
  • 2 of 9
    Front View
  • 3 of 9
    Top View
  • 4 of 9
    Side View
  • 5 of 9
    Head Band Adjustment
  • 6 of 9
    Rear View
  • 7 of 9
    Sensitivity and Delay Switches
  • 8 of 9
    Adjustable Shade Dial
  • 9 of 9
    Includes additional Lens Cover and Sweatband
Order Code: W008
TEC-I - Auto Darken Welding Helmet
9-13 Shade
TECMEN
ORDER CODE
W008
Model
TEC-I
Viewing Area
97 x 43mm
Cartridge Size
110 x 90 x 9mm
Arc Sensors
2
Light State
DIN 4
Shade
DIN 9 ~ 13
Shade Control
External, Variable Shade
Power On/off
Fully Automatic
Sensitivity Control
High / Low Switch
UV/IR Protection
UpDIN 16
Helmet Power Supply
Solar Cell, No Battery

Change Required
Switching Time Light To Dark
1/10,000 Second
Delay Time Dark To Light
(Fast 0.25-0.45s)

(Slow 0.65-0.80s)
TIG Rated Minimum
10 Amps
Operating Temperature
-5ºC ~ 55ºC
Storing Temperature
-20ºC ~ 70ºC
Helmet Material
High Impact

Resistant Nylon
Total Weight
435g
Application Range
Mig, Tig, Arc, Plasma
Standard
AS/NZS 1338.1.1992
Features
  • Suitable for MIG,TIG, Plasma & Arc welders
  • Adjustable shade from 9 to 13
  • Viewing area 97 x 43mm
  • Automatic activation in 1/10,000 second
  • High/low sensitivity & slow /fast delay switch
  • Protects from UV and IR radiation
  • Light weight high impact resistance nylon
  • Includes 1 x additional lens cover & sweatband
  • AS/NZS 1338.1.1992

Product Brochure

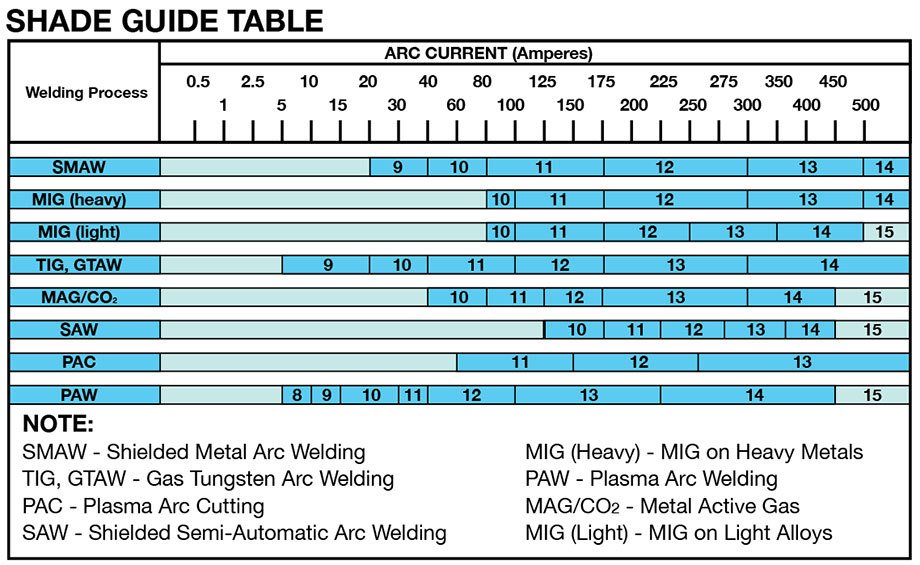

Shade Guide Table
