Home Machine Tool Accessories Vices & Work Holding Safeway Compact Long Series Vices V360

Compact Power Machine Vice - VCV-160V-L

160 x 400mm

V360 1 of 1

Discontinued

Order Code: V360

1 Year Warranty

Made in Taiwan

Sorry, this Product is no longer available
Click Here To View All Safeway Compact Long Series Vices

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Buy Hydraulic Machine Vices Online - Australia

Description

Description

Compact Power Machine Vice - VCV-160V-L

160 x 400mm

Overview

Long Series precision machine vice with modular jaws. Replaceable jaws allow for special purpose holding of components.

Other sizes available...

Features

Maximum opening capacity while compact in overall length
Toleranced all over for use with other vices as matched pairs
Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength
Vice bed flame hardened to HRC 45
Chip cover to protect leadscrew
Jaws hardened to HRC 55

Specifications

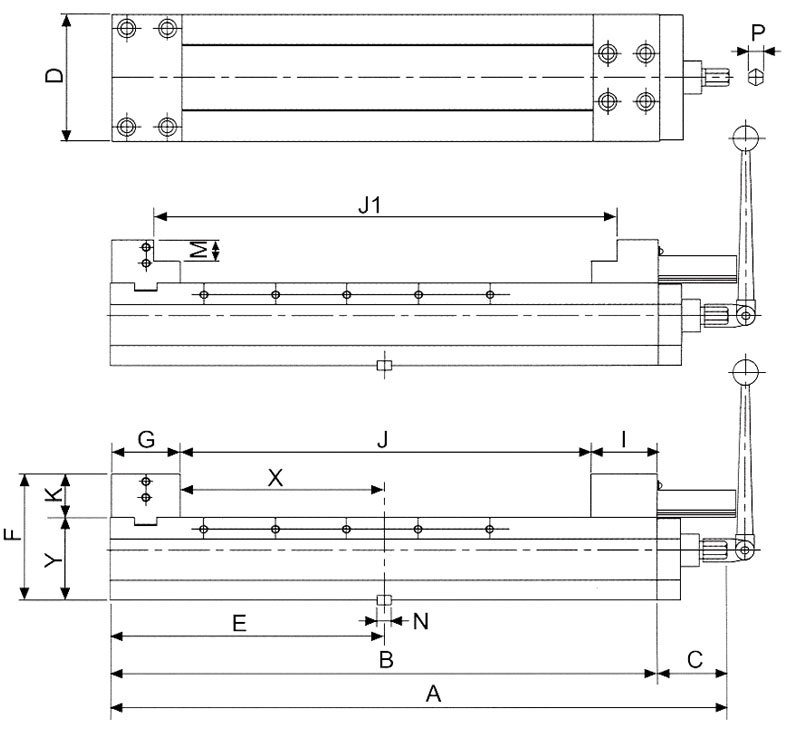

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	V360
MODEL	VCV-160V-L
(mm)A	688
(mm)B	590
(mm)C	98
(mm)D	161
(mm)E	124
(mm)F	160
(mm)G	86
(mm)I	86
(mm)J	400
(mm)K	55
(mm)N	18
(mm)P	19
(mm)X	208
(mm)Y	105
(kg)Nett Weight	66

Accessories

Downloads

Downloads

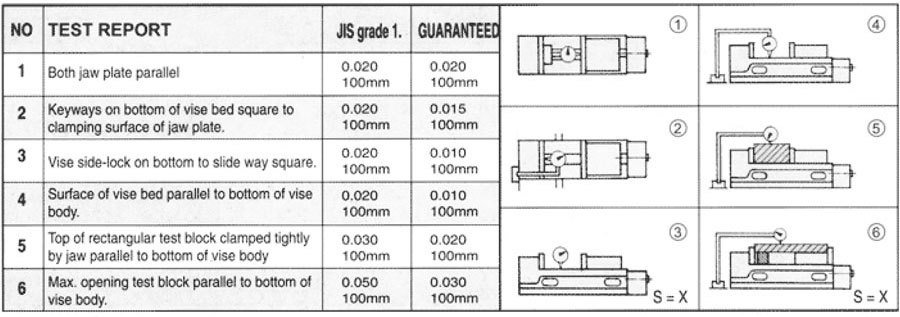

Email a link to this page Product Brochure Test Report (47 KB)
