SAFEWAYVQV-200V
Compact Power Machine Vice
  • 1 of 1
    V358
Order Code: V358
VQV-200V - Compact Power Machine Vice
200 x 350mm
Only Available From: Sydney
Additional Freight Charges May Apply
SAFEWAY
On Special - While Stocks Last
ex GST
inc GST
$2,550.00
$2,805.00
$2,150.00
$2,365.00

ORDER CODE
V358
Model
VQV-200V
Jaw Width
200mm
Pressure
8036 kgf

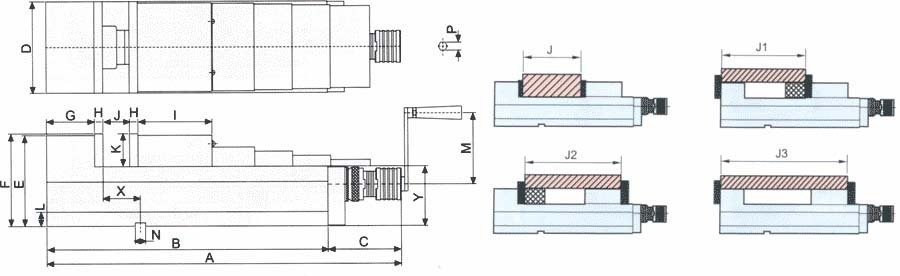

A
661mm
B
555mm
C
106mm
D
201mm
E
194mm
F
170mm
G
100mm
I
97mm
J
0-350mm
K
60mm
M
125mm
N
18mm
X
92mm
Y
110mm
Weight (nett)
93kg
Description
Precision Power Machine Vice with modular jaws. Replaceable jaws allow for special purpose holding
of components. The spindle allows for pre-setting of the clamping pressure
Features
  • Power pre-set operation
  • Maximum opening capacity yet compact in overall length
  • Toleranced all over for use with other vices as matched pairs
  • Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.
  • Flame hardened to HRC 45
  • Chip cover to protect leadscrew
  • Jaws hardened to HRC 52-55
