Safeway Compact Power Machine Vice - VQV-160V
160 x 300mm
V357
1 of 1
Discontinued
Order Code: V357
1 Year Warranty
Made in Taiwan
Description
Safeway Compact Power Machine Vice - VQV-160V
160 x 300mm
Overview
Precision Power Machine Vice with modular jaws. Replaceable jaws allow for special purpose holding of components. The spindle allows for pre-setting of the clamping pressure
Features
- Power pre-set operation
- Maximum opening capacity yet compact in overall length
- Toleranced all over for use with other vices as matched pairs
- Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.
- Flame hardened to HRC 45
- Chip cover to protect leadscrew
- Jaws hardened to HRC 52-55
Compare Product Range

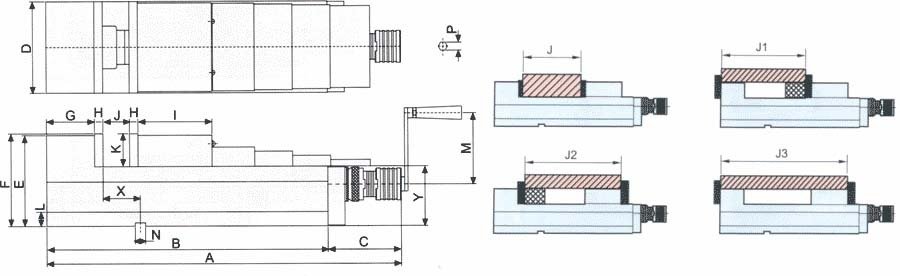

Specifications
| ORDER CODE | V357 |
|---|---|
| MODEL | VQV-160V |
| (mm)Jaw Width | 160 |
| (kgf)Pressure | 5292 |
| (mm)A | 581 |
| (mm)B | 475 |
| (mm)C | 106 |
| (mm)D | 161 |
| (mm)E | 152 |
| (mm)F | 160 |
| (mm)G | 86 |
| (mm)I | 86 |
| (mm)J | 0 - 300 |
| (mm)K | 55 |
| (mm)M | 125 |
| (mm)N | 18 |
| (mm)X | 65 |
| (mm)Y | 105 |
| (kg)Nett Weight | 62 |
No products to compare. This is the only product in this category. Looking for it's specifications?
