THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Vice - Safeway Compact Hydraulic
SAFEWAYVHV-200V
Compact Hydraulic Machine Vice
  • 1 of 1
    V3565
Order Code: V3565
VHV-200V - Compact Hydraulic Machine Vice
200 x 350mm
SAFEWAY
ORDER CODE
V3565
Model
VHV-200V
Jaw Width
200mm
Pressure
7546kgf

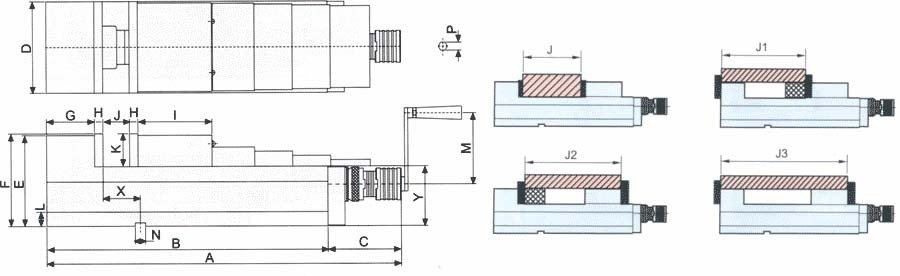

A
690mm
B
555mm
C
135mm
D
201mm
E
194mm
F
170mm
G
100mm
I
97mm
J
0-350mm
K
60mm
M
125mm
N
18mm
X
92mm
Y
110mm
Weight (nett)
93kg
Description
Precision Hydraulic Machine Vice with modular jaws. Replaceable jaws allow for special purpose holding of components.
Features
  • Hydraulic or manual operation
  • Maximum opening capacity yet compact in overall length
  • Toleranced all over for use with other vices as matched pairs
  • Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.;Flame hardened to HRC 45
  • Chip cover to protect leadscrew
  • Jaws hardened to HRC 52-55
Product Brochure

Instruction Manual
2.98 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
2.22 MB
