THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Vice - Safeway Pneumatic Production
SAFEWAYPQV-130V
Pneumatic Production Vice
  • 1 of 1
    V341
Order Code: V341
PQV-130V - Pneumatic Production Vice
130mm
SAFEWAY
ORDER CODE
V341
Model
PQV-130V
Jaw Width
130mm
Power
0-1500kgf
Air Pressure
1.5-7.0kg/cm2
Stroke
0-3mm

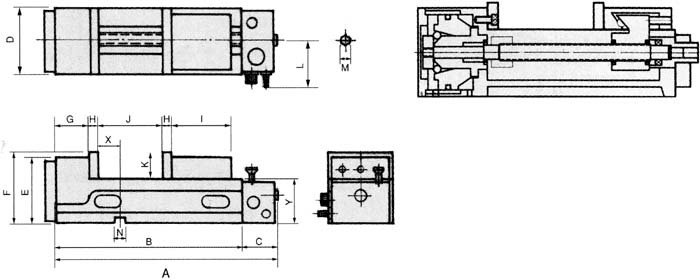

A
482mm
B
405mm
C
102mm
D
131mm
E
152mm
F
150mm
G
100mm
H
15mm
I
115mm
J
0-140mm
K
55mm
L
95mm
M
14mm
N
18mm
X
65mm
Y
100mm
Dimensions
665 x 250 x 205mm
Weight (nett)
38kg
Description
Designed for production applications with simple ON/OFF operation.
Features
  • Robust construction of one piece casting consisting of fixed jaw and vise bed
  • Rigid casting of high tensile ductile iron FCD60JIS (Equal to GGG60) with 60kgs/mm2 or 80,000 psi tensile strength
  • Suitable for mass production runs on machine centre's, milling machines, drilling machines or special purpose machines
  • Compact pneumatic mechanism design. No oil is required only a air supply
  • Compact total length of vice with Max, clamping capacity
  • Safety locking mechanism for unexpected termination of air supply. After pneumatic clamping. The work piece will be remain clamped firmly even without the air supply
  • Easy and simple ON-OFF switch control for pneumatic operation
  • Safety protection with Max. pneumatic clamping stroke is 4mm to prevent inserting operator's finger during clamping operation. (Stroke is 2mm best power capacity)
  • Rapid ON-OFF only 1.5sec
  • Free adjusting of Max. pneumatic clamping pressure from 0-1000kgf (4000) by air regulator, jaw opening 2mm is best clamping power capacity of workpiece
  • Vise bed flame hardened to HRC45° to reduce up wear and maintain accuracy
  • Down trust "semi-spherical segment" mechanism eliminates the jaw and work-piece lifting

Product Brochure

Safeway Jaws
343 KB
Safeway PQV VICE Manual
1.59 MB

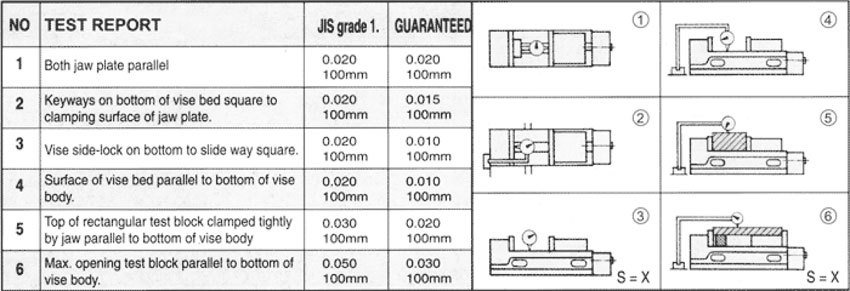

Test Report
47.06 KB
