THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Vice - Safeway Compact Power
SAFEWAYCV-130V
Compact Mechanical Machine Vice
  • 1 of 1
    V338
Order Code: V338
CV-130V - Compact Mechanical Machine Vice
131 x 180mm
SAFEWAY
ORDER CODE
V338
Model
CV-130V
Jaw Width
131mm
Pressure
5292 kgf

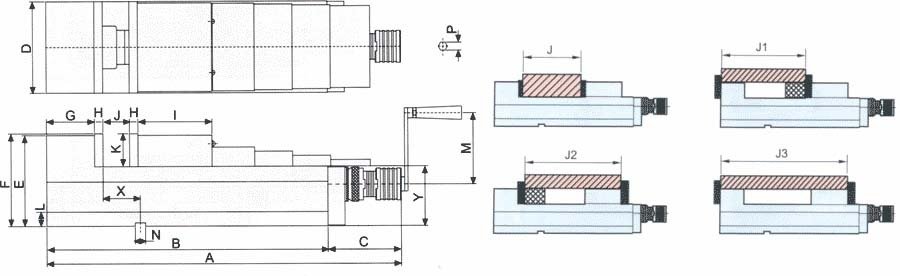

A
495mm
B
405mm
C
90mm
D
131mm
E
147mm
F
150mm
G
70mm
I
115mm
J
0-180mm
K
55mm
M
260mm
N
18mm
X
65mm
Y
95mm
Weight (nett)
39kg
Description
Precision Machine Vice with replaceable jaws allow for special purpose holding of components.
Features
  • Semi-spherical segment eliminates jaw lifting& work piece tilting
  • One piece casting bed and fixed jaw
  • Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.
  • Maximum opening capacity yet compact in overall length
  • Tolerance all over for use with other vices as matched pairs
  • Flame hardened to HRC 45
  • Chip cover to protect leadscrew
  • Jaws hardened to HRC 52-55
