THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Vice - Safeway Mechanical Hydraulic
SAFEWAYPHV-250
Mechanical/Hydraulic Machine Vice
  • 1 of 7
    Top View Vice Open
  • 2 of 7
    Right View
  • 3 of 7
    Shown with Vice Pin in 1st Position
  • 4 of 7
    Side View Shown with Vice Pin in 3rd Position
  • 5 of 7
    Hydraulic Tension with Handle
  • 6 of 7
    Knurled Head Lifting Pins
  • 7 of 7
    Removable Jaws
Order Code: V336
PHV-250 - Mechanical/Hydraulic Machine Vice
250mm
SAFEWAY
ORDER CODE
V336
Model
PHV-250
Jaw Width
250mm
Jaw Opening
0-345mm
Max. Pressure
7000kgf

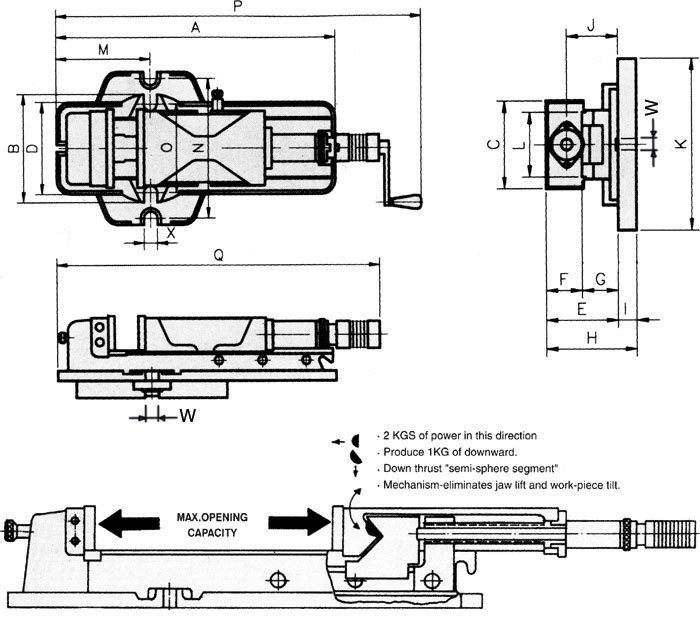

A
810mm
B
320mm
C
250mm
D
290mm
E
190mm
F
80mm
G
110mm
H
238mm
I
48mm
J
139mm
K
460mm
L
195mm
M
320mm
N
410mm
O
270mm
P
920mm
Q
815mm
X
22mm
Keyway (W)
18mm
Weight (nett)
140kg
Description
250mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material - Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength.

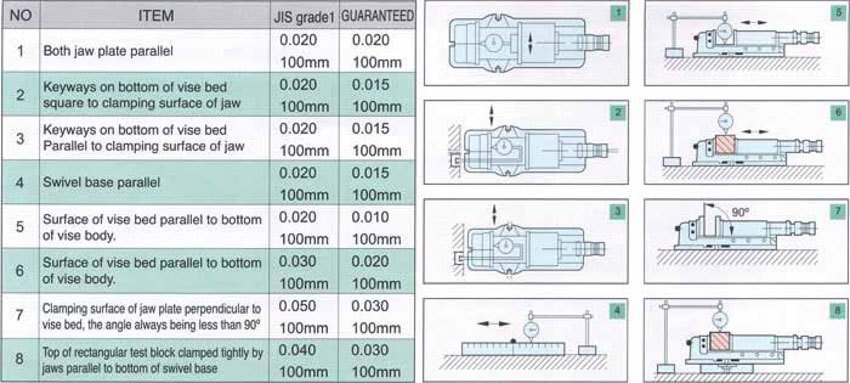

;All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations.
Features
  • Flame-hardened to HRC 45 to take up wear and maintain accuracy
  • The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force, preventing the work piece from tilting
  • The hydraulic cylinder is mounted externally for easy maintenance
  • Large clamping range through screw adjustment and 3 pin positions in the base.
  • The vise can be used in either a mechanical mode or in a hydraulic modeadjustment and 3 pin positions in the base.
  • The vise can be used in
