SAFEWAYCHV-160V-D
Compact Hydraulic Vice - Angle Drive
  • 1 of 1
    V3225
Order Code: V3225
CHV-160V-D - Compact Hydraulic Vice - Angle Drive
160mm
SAFEWAY
ORDER CODE
V3225
Model
CHV-160V-D
Jaw Width
160mm
Pressure
5500kgf

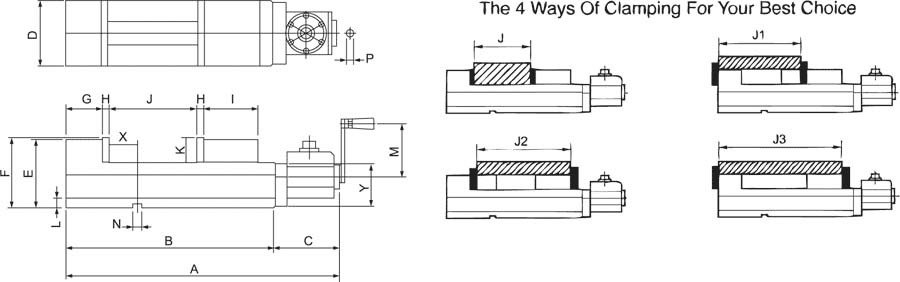

A
667mm
B
495mm
C
172mm
D
161mm
E
160mm
F
163mm
G
85mm
H
15mm
I
130mm
J
0-240mm
J1
240-320mm
J2
240-360mm
J3
240-470mm
K
58mm
L
22mm
M
125mm
N
18mm
P
14mm
X
65mm
Y
105mm
Weight (nett)
58kg
Description
Drive can be operated from either the top of the vice or from the end.
Features
  • Precision ground on all surfaces
  • Flame-hardened bed to HRC 45
  • Semi-sphere to eliminate jaw lift
  • swarf covers over leadscrew
  • Toleranced for use as matched pairs
  • Full hydraulic function is maintained
