SAFEWAYCHV-160V
Compact Hydraulic Vice
  • 1 of 2
    V322
  • 2 of 2
    Insert
Order Code: V322
CHV-160V - Compact Hydraulic Vice
160mm
SAFEWAY
ORDER CODE
V322
MODEL
CHV-160V
Jaw Width (mm)
160
Pressure (kgf)
5500

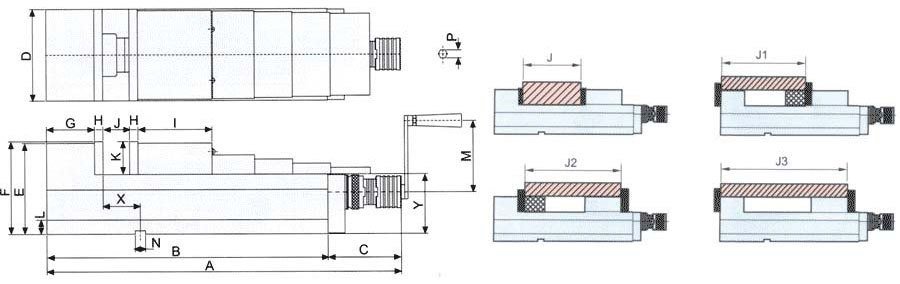

A (mm)
630
B (mm)
495
C (mm)
135
D (mm)
161
E (mm)
160
F (mm)
163
G (mm)
85
H (mm)
15
I (mm)
130
J (mm)
0 - 240
J1 (mm)
240 - 320
J2 (mm)
240 - 360
J3 (mm)
240 - 470
K (mm)
58
L (mm)
22
M (mm)
125
N (mm)
18
P (mm)
14
X (mm)
65
Y (mm)
105
Nett Weight (kg)
58
Description
Safeway Precision 160mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.
Features
  • Precision ground on all surfaces
  • Flame-hardened bed to HRC 45
  • Semi-sphere to eliminate jaw lift
  • swarf covers over leadscrew
  • Toleranced for use as matched pairs
