SAFEWAYCHV-130V
Compact Hydraulic Vice
  • 1 of 3
    V321
  • 2 of 3
    Shown with Handle
  • 3 of 3
    Insert
Order Code: V321
CHV-130V - Compact Hydraulic Vice
130mm
SAFEWAY
ORDER CODE
V321
Model
CHV-130V
Jaw Width
130mm
Pressure
4500kgf

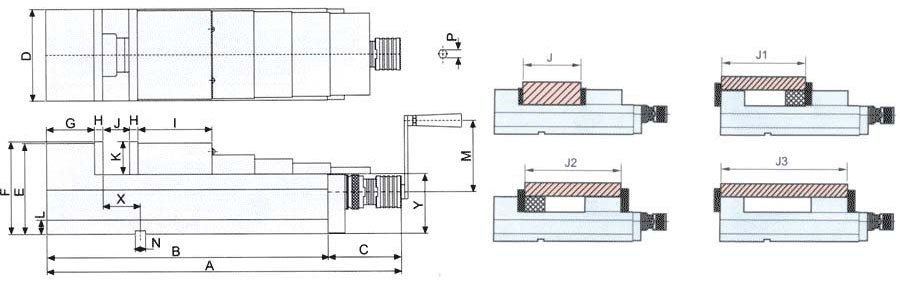

A
540mm
B
405mm
C
135mm
D
131mm
E
147mm
F
150mm
G
70mm
H
15mm
I
115mm
J
0-180mm
J1
180-240mm
J2
180-290mm
J3
180-380mm
K
52mm
L
22mm
M
125mm
N
18mm
P
14mm
X
65mm
Y
95mm
Weight (nett)
37kg
Description
Safeway Precision 130mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.
Features
  • Precision ground on all surfaces
  • Flame-hardened bed to HRC 45
  • Semi-sphere to eliminate jaw lift
  • swarf covers over leadscrew
  • Toleranced for use as matched pairs

Product Brochure

Safeway CHV Manual
2.37 MB
Test Report
47.07 KB
Safeway Jaws
343 KB
Instruction Manual
2.9 MB
