THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Vice - Safeway Compact Hydraulic
SAFEWAYCHV-100V
Compact Hydraulic Vice
  • 1 of 2
    V320
  • 2 of 2
    Insert
Order Code: V320
CHV-100V - Compact Hydraulic Vice
100mm
SAFEWAY
ORDER CODE
V320
Model
CHV-100V
Jaw Width
100mm
Pressure
3500kgf

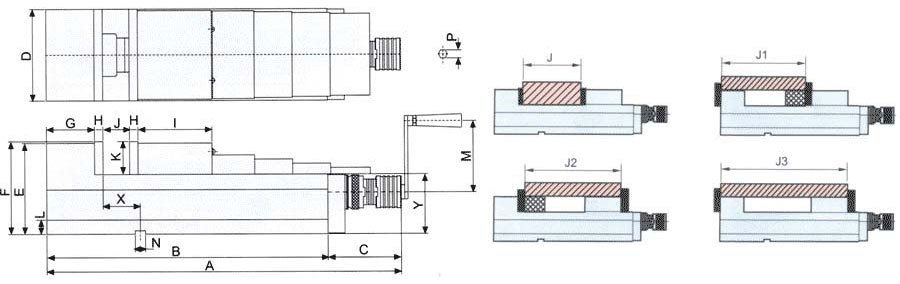

A
475mm
B
340mm
C
135mm
D
101mm
E
130mm
F
133mm
G
65mm
H
15mm
I
105mm
J
0-125mm
J1
125-190mm
J2
125-230mm
J3
125-320mm
K
48mm
L
22mm
M
125mm
N
16mm
P
14mm
X
45mm
Y
85mm
Weight (nett)
24kg
Description
Safeway Precision 100mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.
Features
  • Precision ground on all surfaces
  • Flame-hardened bed to HRC 45
  • Semi-sphere to eliminate jaw lift
  • swarf covers over leadscrew
  • Toleranced for use as matched pairs
