TOOLMASTERBT50-ASC32-110
Collet Chuck Multilock (C SERIES)
  • 1 of 1
    T302
Order Code: T302

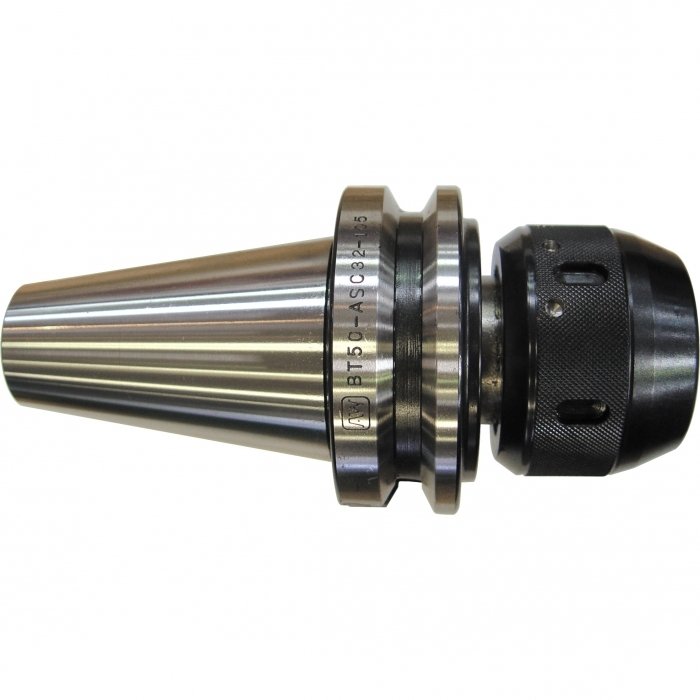

BT50-ASC32-110 - Collet Chuck Multilock (C SERIES)
6-32mm
Only Available From: Sydney, Melbourne
Additional Freight Charges May Apply
TOOLMASTER
On Special - While Stocks Last
ex GST
inc GST
$330.00
$363.00
$180.00
$198.00

ORDER CODE
T302
Model
BT50-ASC32-110
BT
BT50
Capacity
6-32mm

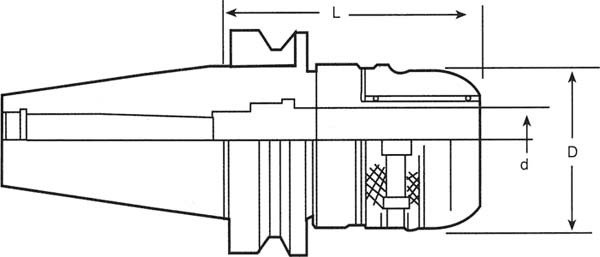

d (lowercase)
32mm
D
76mm
L
110mm
Collet Type
SC-32
Weight
5.2kg
Description
Collet chuck meet the specifications of machine tool builders (DIN 2080 taper shank grade AT-3 - 85% taper contact)
Collet chucks are rated to 10,000 rpm. (balancing up to 15,000 - 25,000 available on request)
Features
  • Heavy duty collet chuck designed for ripper cutters and heavy metal removal
  • Four layers of roller bearings provide increased gripping force
  • Run-out accuracy of 5 microns can be obtained 100mm out from chuck
  • The design ensures a powerful clamping force, minimising vibration and distortion

  • Spanner not included
